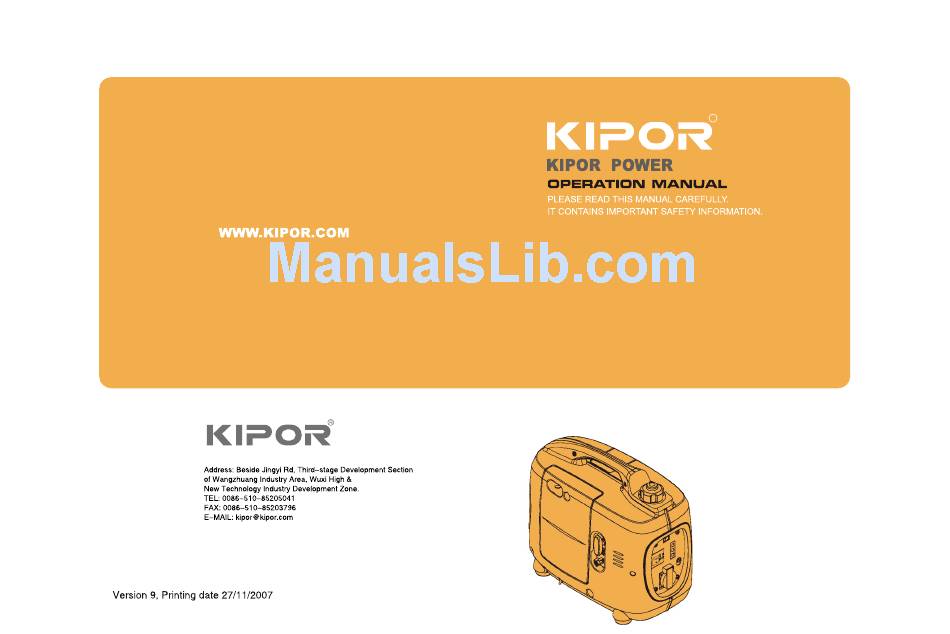

Page 1

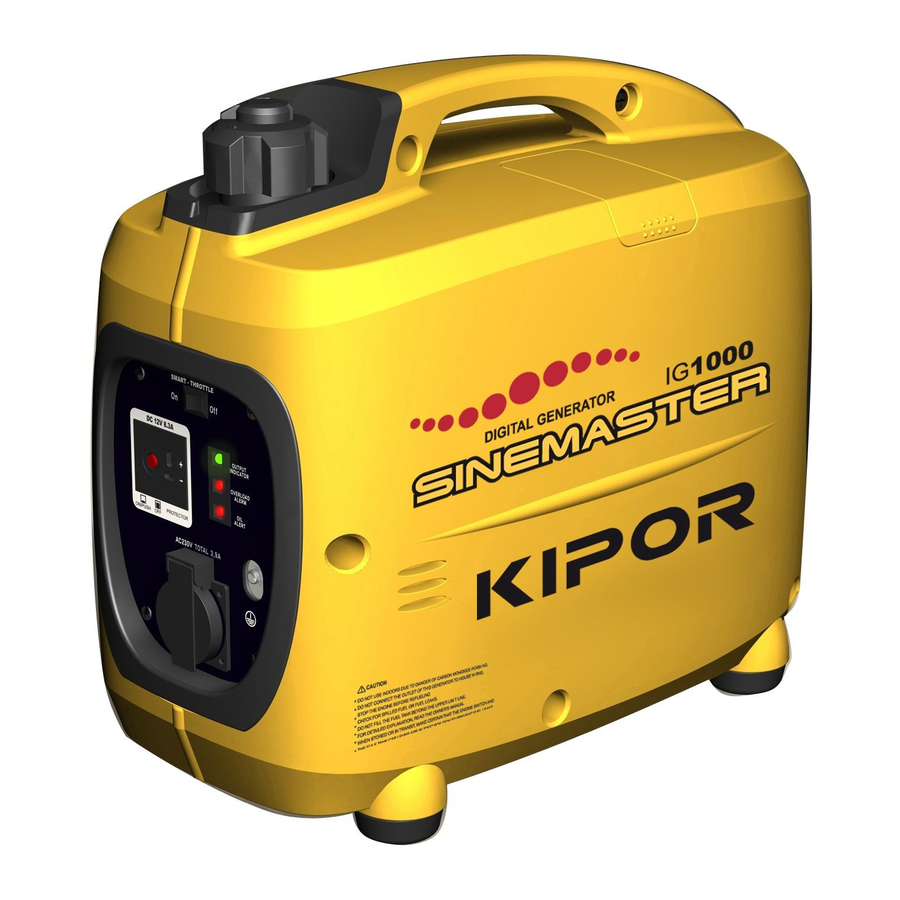

WUXI KIPOR POWER CO., LTD. S I N E M A S T E R DIGITAL INVERTER GENERATOR I G 10 0 0 I G 10 0 0 s...
Page 3
PREFACE 13. LIGHT KIT Thank you for purchasing our generators. MOUNTING INSTRUCTIONS FOR: IG1000s LIGHT KIT This manual covers operation and maintenance of the IG1000, IG1000s generator. All information in this publication is based on the latest product information available at the time of approval for printing. We reserve the right to make changes at any time without notice and without M5 45 incurring any obligation.
11. SPECIFICATIONS CONTENTS SPECIFICATIONS Model IG1000/IG1000s Rated frequency (Hz) 1. Safety Instructions Rated voltage (V) Rated current (A) 2. Safety Label Locations Rated rotation speed [r/min] 5500 Rated output (kVA) 0.90 3. Component Indentificaction Max. output (kVA) 1.00 DC output 4.
Page 6
Appliance does not operate: Is the output indicator light ON? Take the generator to an Is the overload indicator light ON? authorized dealer. Check the electrical appli- Take the generator to an ance or equipment for any authorized dealer. defects. Replace the electrical appliance or equipment Take the electrical appli-...
10.TROUBLESHOOTING 1. SAFETY INSTRUCTIONS Our generators are designed to give safe and depend- When the engine will not start: WARNING able service if operated according to instructions. Refill the fuel tank. Read and understand the Owner's Manual before op- Is there fuel in the tank? erating the generator.
Page 8
a. Drain all gasoline from the fuel tank into an approved gasoline container. To ensure safe operation-- b. Turn the engine switch ON, and loosen the carburetor drain screw and drain Gasoline is extremely flammable and explosive under the gasoline from the carburetor into a suitable container. WARNING certain conditions.
9.TRANSPORTING/STORAGE 2. SAFETY LABEL LOCATIONS These lables warn you of potential hazards that can cause serious injury. Read To prevent fuel spillage when transporting or during temporary storage, the genera- the labels and safety notes and precautions described in this manual carefully. tor should be secured upright in its normal operating position, with the engine switch If a label comes off or becomes hard to read, contact your dealer for a OFF.
3.Use a brush to remove carbon deposits from the spark arrester screen. 3.COMPONENT IDENTIFICATION Inspect the screen for holes, and replace it if necessary. Spark arrester 4.Check the muffler gasket; replace if damaged. Reinstall the muffler gasket, the spark arrester, the muffler and the muffler protector in the reverse order of removal. Air intake hole Air exhauat hole...
Page 11
4.SPARK ARRESTER MAINTENANCE(Equipped type only) WARNING If the generator has been running, the muffler will be very hot. Allow it to cool before proceeding. CAUTION The spark arrester must be serviced every 100 hours to maintain its efficiency. 1.Remove the four M5 screws, and remove the muffler protector. 2.Remove the there M6 bolts, and remove the muffler, the spark arrester and the E Type muffler gasket...
Page 12
5.Visually inspect the spark plug. Discard it if the insulator is cracked or chipped. SMART throttle Clean the spark plug with a wire brush if it is to be reused. Engine speed is kept at idle automatically when the electrical appliance is discon- 6.Measure the plug gap with a feeler gauge.
4.PRE-OPERATION CHECK 3.SPARK PLUG SERVICE RECOMMENTED SPARK PLUG: UR5 To ensure proper engine operation, the spark plug must be properly gapped and Be sure to check the generator on a level surface free of deposits. CAUTION with the engine stopped. 1.Remove the spark plug maintenance cover.
Page 14
The Low Oil Alarm System will automatically stop the engine before the oil Wash your hands with soap and water after handing used oil. NOTE: level falls below the safe limit. However, to avoid the inconvenience of an Please dispose of used motor oil in a manner that is NOTE unexpected shutdown, it is still advisable to visually inspect the oil level regularly.
Page 15
1.CHANGING OIL Drain the oil while the engine is still warm to assure rapid and complete draining. Make sure to turn the engine switch and the fuel cap CAUTION lever OFF before draining. 1.Loosen the cover screw and remove the left side maintenance cover. 2.Remove the oil filler cap.
5.STARTING THE ENGINE 8.MAINTENANCE Before starting the engine, disconnect the load from the DC terminals. The purpose of the maintenance and adjustment schedule is to keep the generator in the best operating condition. 1.Turn the fuel cap lever fully clockwise to the ON position. WARNING Shut off the engine before performing any maintena- nce.
Page 17
3.Turn the cap lever fully counterclockwise to the "OFF"position. Do not use the choke when the engine is warm or NOTE the air temperature is high. 4.Pull the starter grip until resistance is felt, then pull the starter grip briskly toward the arrow as shown below.
High altitude operation 7.STOPPING THE ENGINE At high altitude, the standard carburetor air-fuel mixture will be excessively rich. Performance will decrease, and fuel consumption will increase. To stop the engine in an emergency, turn the engine switch to the OFF position. High altitude performance can be improved by installing a smaller diameter main fuel jet in the carburetor and readjusting the pilot screws.
Page 19
Low oil alarm system 6.GENERATOR USE The Low oil alarm system is designed to prevent engine damage caused by an insufficient amount of oil in the crankcase. Before the oil level in the crankcase falls below a safe limit, the Low oil alarm system will automatically shut down the To prevent electrical shock from faulty appliances, the WARNING engine (the engine switch will remain in the ON position).
Page 20
The DC receptacle can be used while the AC power is The battery gives off explosive gases; keep sparks, NOTE WARNING in use. If you use both at the same time, be sure not to flames and cigarettes away. Provide adequate venti- lation when charging.
Page 21
Output and Overload Indicators The DC receptacle may be used for charging 12 volt automotive-type batteries only, the zero load voltage is 15V-30V. The output indicator light(green)will remain ON during normal operating conditions. In DC operation, turn the Smart throttle switch to the NOTE If the generator is overloaded(in excess of 1.0kVA), or if there is a short in the con- OFF position.
Page 22
1.Connect the ground terminal. 4.Switch on the equipment to be used. In case of overload operation or when trouble occurs for the equipment being used, the output indicator light(green) will go out, the overload indicator light(red) will light continuously, and no power will be put out. At this time, the engine will not stop, so that the engine must be stopped by 2.
