YURAGI
OFF/ON
1
2
3
4
5
SPEED
1
3
6h
CANCEL
OFF
TIMER
SLEEP MODE

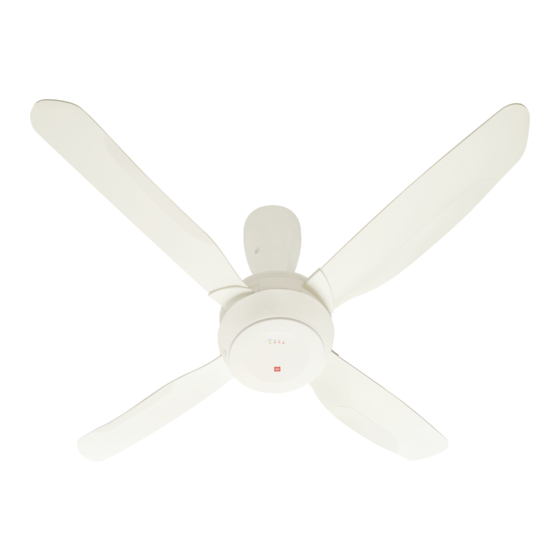

Ceiling Fan
Thank you for purchasing KDK product
感謝您購買 KDK 產品。
Before operating this product, please read the instructions carefully, and keep this
manual for future reference.
操作此產品前，請仔細閱讀說明書，並保存本手冊以作日後參考。
Contents / 目錄
Operating And Installation Instructions
操作和安裝指示
Ceiling Fan
吊扇
Model Number
型號
R56SV
Page / 頁數
2
5
5
12
16
16
Advertisement
Table of Contents
Related Manuals for KDK R56SV
Summary of Contents for KDK R56SV
-
Page 1: Table Of Contents
CANCEL 型號 TIMER SLEEP MODE Ceiling Fan R56SV Thank you for purchasing KDK product 感謝您購買 KDK 產品。 Before operating this product, please read the instructions carefully, and keep this manual for future reference. 操作此產品前，請仔細閱讀說明書，並保存本手冊以作日後參考。 Contents / 目錄 Page / 頁數... -
Page 2: Safety Precautions / 安全注意事項
Safety Precautions / 安全注意事項 To avoid the possibility of causing injury to users or damage to properties, please follow all the explanations written below. 為避免導致用戶受傷或財物損壞的可能性，請遵守以下所述的所有指示。 A state that may be caused by the mishandling of products, which, if not avoided, may lead to the WARNING possibility of death or serious injury of users. - Page 3 WARNING / 警告 Switch off power supply and wait until the Do not dismantle the Ceiling Fan unless Avoid damage wire during installation eg. Blade is fully static, before cleaning or doing stated by this manual. Must use only Deform due to heat, twist, bend, etc. 避免在安裝時損壞電線，例如因熱量、扭...
- Page 4 CAUTION / 注意 This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
-
Page 5: Supplied Parts / 配備零件
Supplied Parts / 配備零件 Parts / 零件 Piece(s) / 件 1. Motor Assembly / 發動機組件 2. Canopy / 罩蓋 3. Blade Assembly Set / 扇翼組件 4. Decoration Cap / 裝飾帽 5. Batteries AA, R6P , R6, LR6 / 電池 AA, R6P, R6, LR6 6. - Page 6 Check Point After Installation / 組裝後的檢驗點 Check / 檢查 Hook / 鉤子 Cotter Pin / 1. The ceiling fan is securely fi xed on to the Hook. Make sure the Bolt, 開口銷 Spring Washer and Nut are fi rmly tightened and the Cotter Pin is Bolt / Nut / 螺帽...
- Page 7 Check Point After Installation / 安裝後的重點檢查 Check / 檢查 The wiring is connected properly to the power supply. 230V~ / 50 H 電線已正確地連接了電源線。 230V~ / 50赫茲 Wiring Instruction / 配線指示 Connect power supply according to the Wiring Diagram below. 按照以下的電線圖接電源。 WARNING / 警告...
-
Page 8: Installing The Canopy
ATTENTION / 留意 This product should be installed with a double poles single throw switch (Breaker Switch) with minimum 3 mm contact gap in the fi xed installation circuit. Do not use regulator or dimmer switch. (It can damage the Ceiling Fan) 此產品必須在固定安裝電路上裝上觸點間隙為最少... - Page 9 Fix the Screws into the Canopy and tighten it. 將螺絲鎖入罩蓋然後鎖緊。 Ceiling / 天花板 Approximately 5mm. / 大約 5 毫米 Screw / 螺絲 ATTENTION / 留意 Do not assemble Canopy in this opposite direction. Can cause abnormal noise. 請勿將罩蓋裝反方向安裝。 可引起異響。 Check Point After Installation / 組裝後的檢驗點 Check / 檢查...
-
Page 10: Installing The Blades
Installing The Blades / 安裝扇葉 Step 1: Assemble the Blade towards the Blade Support Plate slot as shown in fi gure Step 1. (ii) Step 2: Pull the Blade according to direction in fi gure Step 2 to lock the Blade. ( (iii) Step 3: Tighten the Blades fi... - Page 11 After 4 Blades have been fi xed, fi x the Decoration Cap. Make sure guide at Motor Unit and Decoration Cap are aligned ( ) . Turn Clockwise until a click sound is heard ( ). 4 片扇翼安裝完畢后，安裝裝飾蓋。 確保發動機和裝飾蓋在 ( ) 點對齊。向順時鐘方向旋轉直至聽到「滴答」聲...
-
Page 12: How To Use / 如何使用
How to Use / 如何使用 A) Before Use / 使用前 • Insert 2 pieces AA, R6P, R6, LR6 size Batteries and make sure the polarity direction is as shown. • Please remove all Batteries before disposing the Remote Control. • The life of Battery is about one year for a normal usage. •... - Page 13 ATTENTION / 留意 The power consumption when the fan is turned off by the Remote Control is about 0.3 W. It is recommended to switch off wall switch or breaker if Ceiling Fan is not in use for long period. This is for zero power consumption purpose.
- Page 14 OFF TIMER / 關閉計時器 For OFF TIMER function, the timer will gradually count down hourly until off. During this timer count down, speed will remain the same until the Ceiling Fan is off. 儅使用關閉計時器功能時，計時器將逐小時地倒計時，直到關閉。 在倒計時過程中，速度將保持不變，直到吊扇關閉。 SLEEP MODE / 睡眠模式 For SLEEP MODE, Ceiling Fan speed and timer will gradually go down until the Ceiling Fan is off. As an example, refer to highlighted row in the table below by using speed 5 and timer set to 6 hours.
- Page 15 1/f YURAGI / 1/f YURAGI What is 1/f YURAGI? / 何謂 1/f YURAGI ？ ▪ It is studied that people eventually get tired of some constant stimulations. ▪ But feel uncomfortable it stimulations change too suddenly. ▪ Yuragi is a right proportion between the above 2 extremes. ▪...
-
Page 16: Maintenance / 維修
電壓 頻率 瓦特數 旋轉度 (RPM) 風速 送風量 淨重 HIGH m/ min / min 赫茲 瓦特 低 高 米/分鐘 立方米/分鐘 公斤 KDKCompany, Division of PES Head Offi ce: 4017, Takaki-cho, Kasugai, Aichi, Japan. © KDK Company, Division of PES 2011 R56SV8001ZM...
