Thank you for purchasing KDK product
KDK
Before operating this product, please read the instructions carefully, and keep this
manual for future reference.
操作此產品前，請仔細閱讀說明書，並保存本手冊以作日後參考。
Contents /
Operating And Installation Instructions

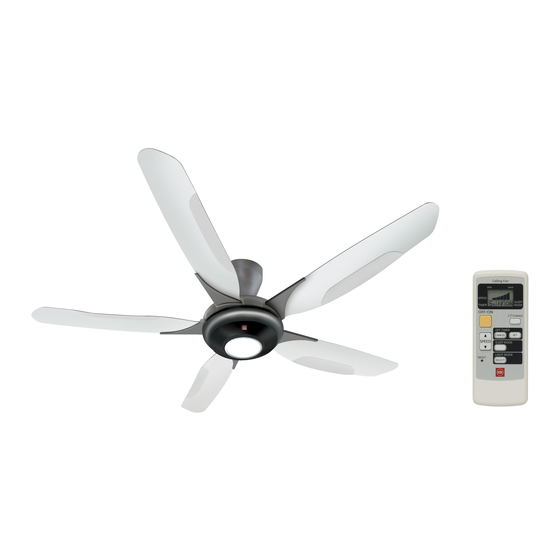

Ceiling Fan
Model Number
R60VW
Page /
2
5
5
10
16
16
Advertisement
Related Manuals for KDK R60VW
Summary of Contents for KDK R60VW
-
Page 1: Table Of Contents
Operating And Installation Instructions Ceiling Fan Model Number R60VW Thank you for purchasing KDK product Before operating this product, please read the instructions carefully, and keep this manual for future reference. 操作此產品前，請仔細閱讀說明書，並保存本手冊以作日後參考。 Contents / Page / Safety Precautions / Supplied Parts /... -
Page 2: Safety Precautions
Safety Precautions / To avoid the possibility of causing injury to users or damage to properties, please follow all the explanations written below. 為避免導致用戶受傷或財物損壞的可能性，請遵守以下所述的所有指示。 A state that may be caused by the mishandling of products, which, if not avoided, may lead to the WARNING possibility of death or serious injury of users. - Page 3 WARNING / Switch off power supply and wait until the Do not dismantle the Ceiling Fan unless Avoid damage wire during installation eg. Blade is fully static, before cleaning or doing stated by this manual. Must use only Deform due to heat, twist, bend, etc. 避免在安裝時損壞電線，例如因熱量、扭...
- Page 4 CAUTION / This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
-
Page 5: Supplied Parts
Supplied Parts / Parts / 零件 Pcs / 件 1. Motor Assembly / 發動機組件 2. Canopy / 罩蓋 3. Blade Assembly / 扇翼組件 4. Decoration Cap / 裝飾帽 5. Batteries AAA, R03, LR03 / 電池 AAA, R03, LR03 6. Remote Control / 遙控器 7. - Page 6 Check Point After Installation / Check / 檢查 Hook / 鉤子 Cotter Pin / 1. The ceiling fan is securly fi xed on to the Hook. Make sure the Bolt, 開口銷 Spring Washer and Nut are fi rmly tightened and the Cotter Pin is Bolt / Nut / 螺帽...
- Page 7 Check Point After Installation / Check / 檢查 The wiring is connected properly to the power supply. 230V~ / 50 H 電線已正確地連接了電源線。 230V~ / 50赫茲 Wiring Instruction / Connect power supply according to the Wiring Diagram below. 按照以下的電線圖接電源。 WARNING / Electrical wiring must be done by competent personnel.
- Page 8 WARNING / This product is not provided with cord and plug or with other means for connection from the supply. When connect or change the power cord or lead wire, it must be replaced by the competent personnel in order to avoid hazard. Please use 2271EC53(RVV) or thickness of tube is 1 mm or above.
- Page 9 Fix the Screws into the Canopy and tighten it. 將螺絲鎖入罩蓋然後鎖緊。 Ceiling / 天花板 Screw / 螺絲 ATTENTION / Do not assemble Canopy in this opposite direction. Can cause abnormal noise. 請勿將罩蓋裝反方向安裝。 可引起異響。 Check Point After Installation / Check / 檢查 1.
- Page 10 WARNING / Blade Support Plate should be set in proper condition. Can cause Ceiling Fan wobble or drop. 正確地安裝扇翼支撐板。 這可以導致吊扇搖晃或掉落。 Check Point After Installation / Check / 檢查 1. Ensure the screws (10 pcs) for securing the Blade are tightly screwed. 確定用作鎖定扇翼的螺絲（...
-
Page 11: How To Use
How to Use / Before Use / Insert 2 pieces AAA, R03, LR03 size Batteries and make sure the polarity direction is as shown in fi gure below. 插入 2 枚 AAA 、 R03 、 LR03 尺寸的電池， 並確保極性方向如下圖所示。 Battery / 電池... - Page 12 ATTENTION / The power consumption when the fan and light operation is turned off by the Remote Control is about 0.5 W. It is recommended to switch off wall switch or breaker if Ceiling Fan is not in use for long period. This is for zero power consumption purpose.
- Page 13 Speed Display / Figure below show different speed on LCD Display. 下圖顯示 LCD 顯示屏上的不同速度。 Speed 1 / 速度 1 Speed 2 / 速度 2 Speed 3 / 速度 3 Speed 4 / 速度 4 Speed 5 / 速度 5 Timer Display / 1 hours / 1 小時...
- Page 14 SLEEP MODE Table / 8 hrs / 7 hrs / 6 hrs / 5 hrs / 4 hrs / 3 hrs / 2 hrs / 1 hrs / 0 hrs / Timer / 計時器 8 小時 7 小時 6 小時 5 小時...
- Page 15 1 / f YURAGI speed change pattern / 1 / f YURAGI TIME / 時間 This pattern is an example for 1/f YURAGI setting at speed 4. 該圖樣是 1/f YURAGI 設定於速度 4 的範例。 1 / f YURAGI function does exist for speed 1 but less noticeable compared to higher speed (speed 4 and Note 備註...
-
Page 16: Maintenance
Maintenance / 1. Check the Ceiling Fan condition annually. If a problem occurs, stop using the Ceiling Fan. Then refer to KDK service, sales or maintenance shop. Check points: Loosened Screws, Safety Wire condition, Motor Shaft damage, etc. 每年檢查吊扇的狀況。如果出現問題， 停止使用有關吊扇，然後質詢 KDK 服務、銷售或維修商店。...
