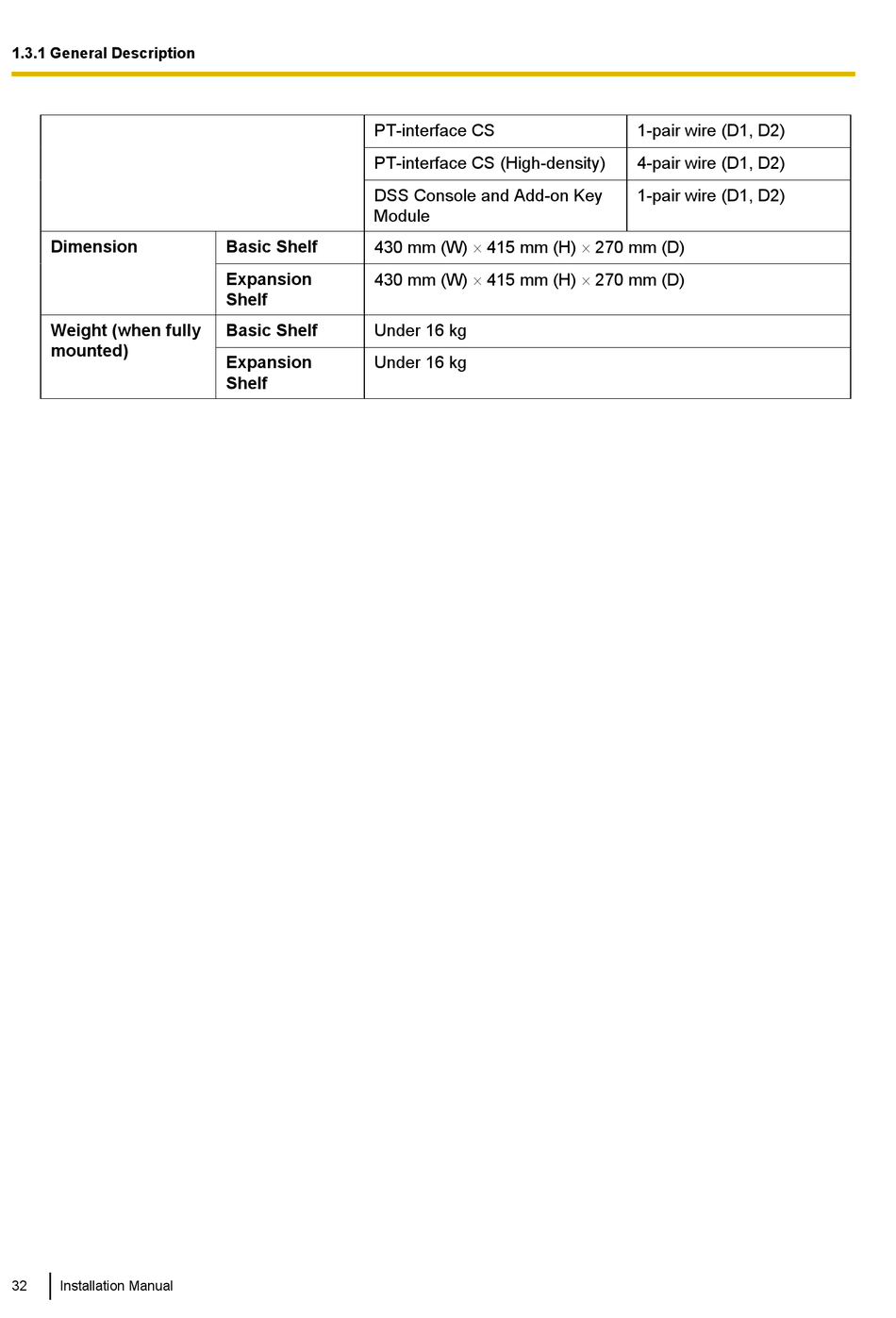

1.3.1 General Description
Dimension
Weight (when fully
mounted)
32
Installation Manual
PT-interface CS
PT-interface CS (High-density)
DSS Console and Add-on Key
Module
430 mm (W) ´ 415 mm (H) ´ 270 mm (D)
Basic Shelf
430 mm (W) ´ 415 mm (H) ´ 270 mm (D)
Expansion
Shelf
Basic Shelf
Under 16 kg
Expansion
Under 16 kg
Shelf
1-pair wire (D1, D2)
4-pair wire (D1, D2)
1-pair wire (D1, D2)
