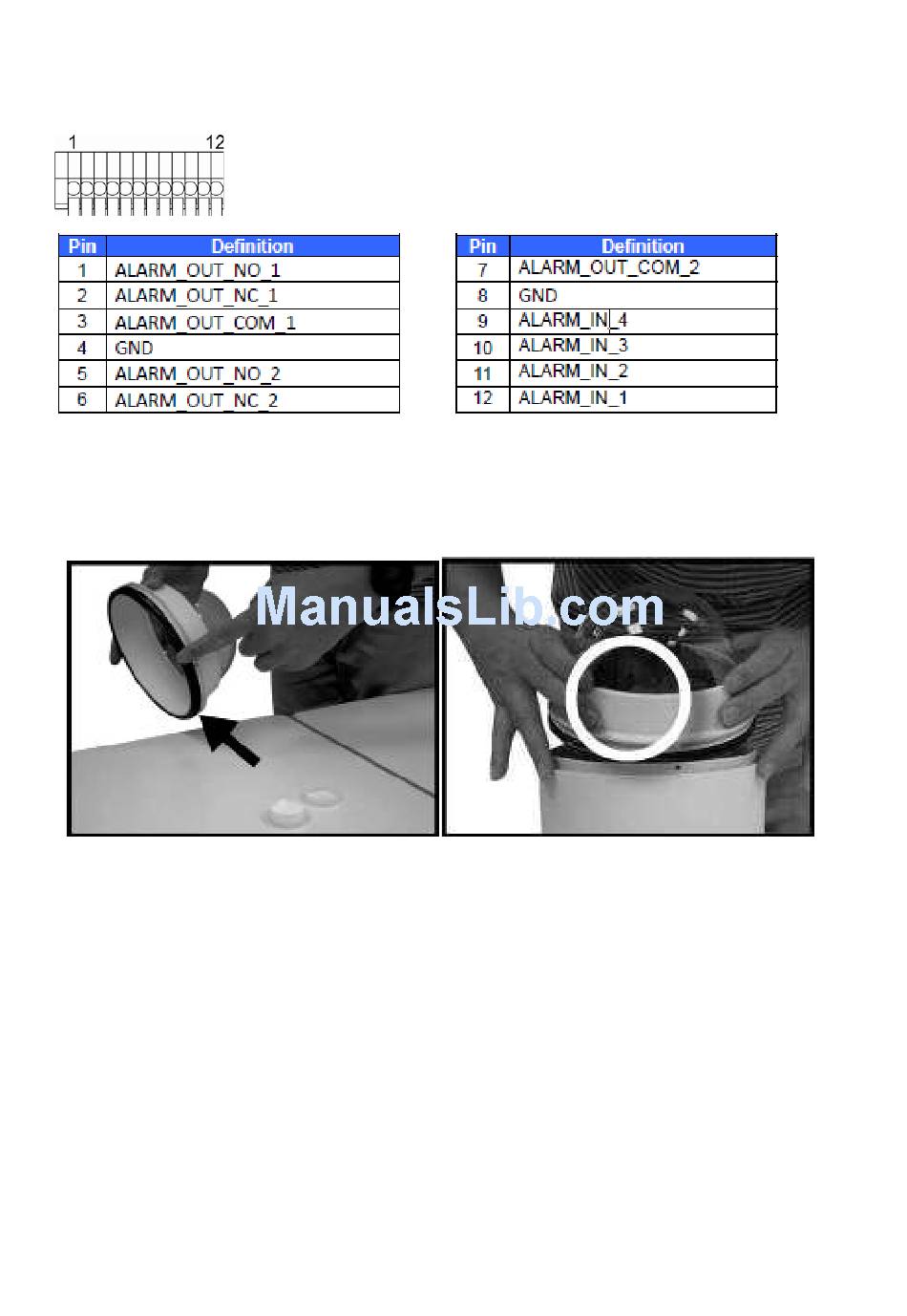

<Alarm I/O Connector>
When cabling, please refer to the table below for pin definition of Alarm I/O setting.
Please make sure the alarm connections are properly.
Step 2. HW Installation
Apply lubricant to the Dome cover's water-proof rubber to make the installation
1.
process smoother.
NOTE: The tiny protrusion on the dome cover must align with one of the four holes
on the dome body.
3
