<Bottom View>

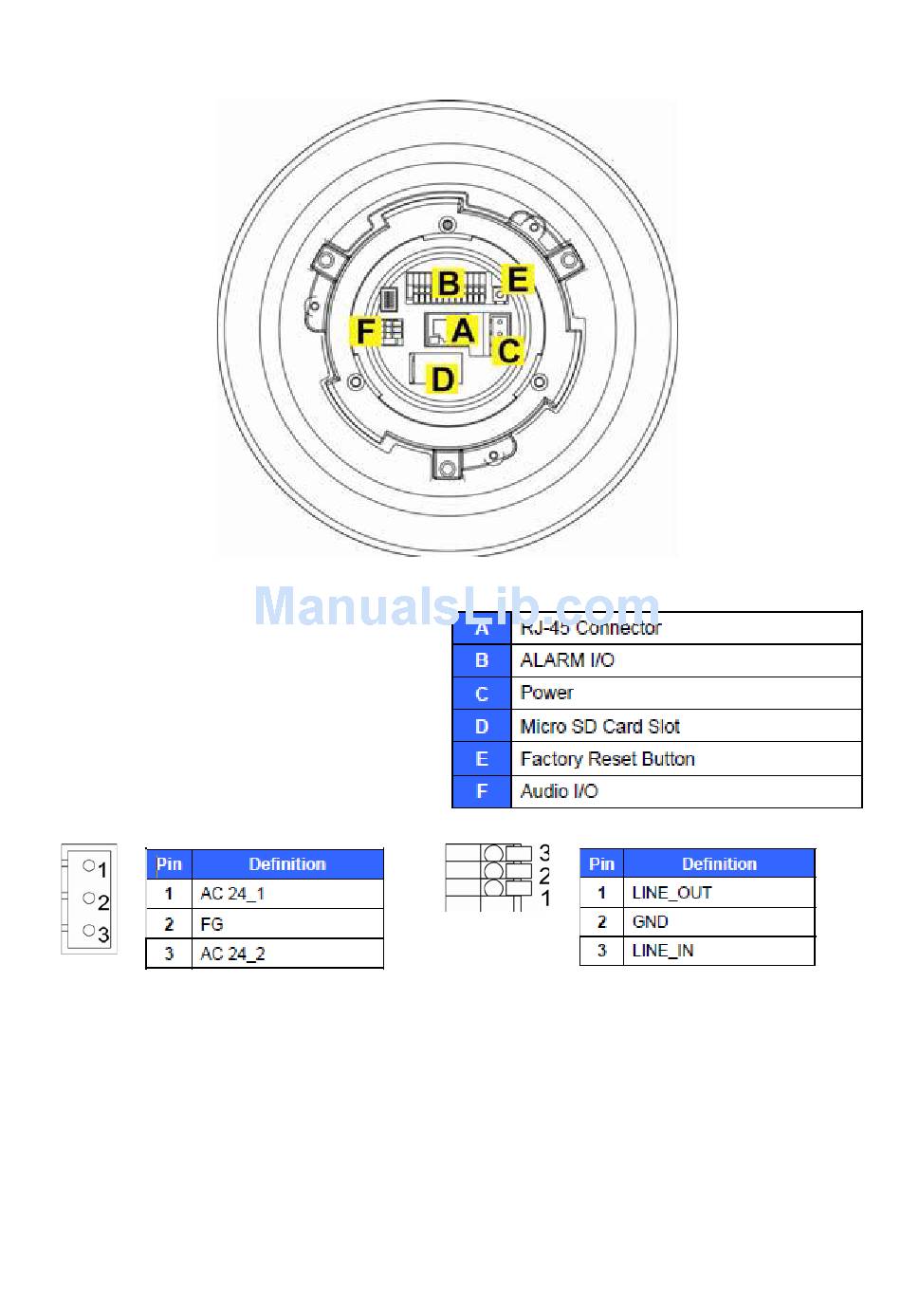

Please refer to the illustrations below to
connect power core through the supplied
power adaptor, and set up the audio
according to the Audio pin definition.
<Power Connector>
<Audio Connector>
NOTE: To power up the camera, please plug the AC 24V cable into the camera's
power connector (Operating Temperature: -40℃-50℃); Or connect the Ethernet
cable to the camera's Ethernet port and plug the other end of cable into an IEEE
802.3at High Power over Ethernet (PoE plug)switch (Operating Temperature: -7℃
-50℃)
