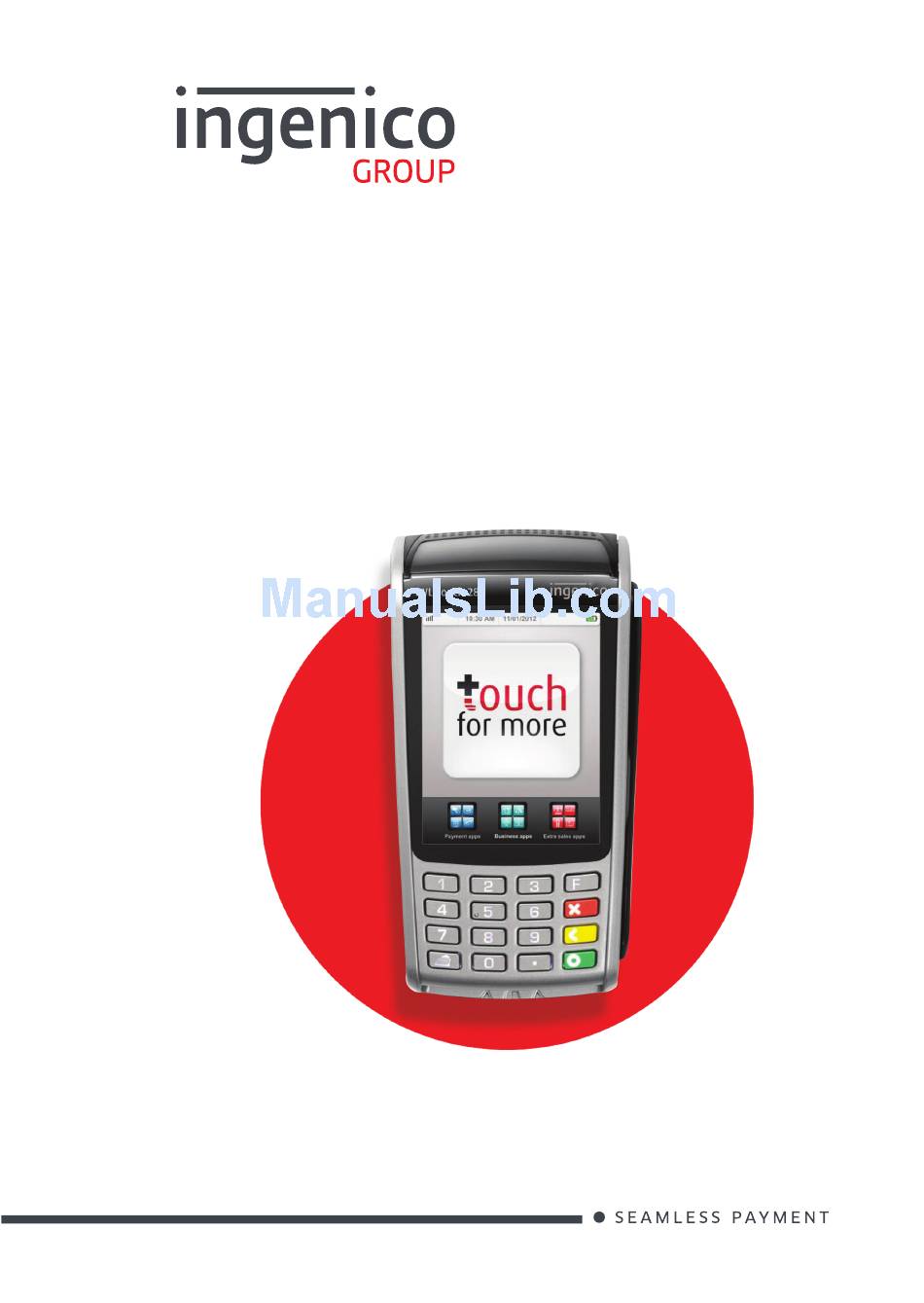

- Page 1 28-32, boulevard de Grenelle, 75015 Paris - France / (T) +33 (0)1 58 01 80 00 / (F) +33 (0)1 58 01 91 35 Ingenico - SA au capital de 47 656 332 / 317 218 758 RCS Nanterre...
-
Page 2: Table Of Contents
Contents 1_Introduction 2_Présentation 2_1 Content of the box 2_1_1 Terminal 2_1_2 Base (optional) 2_2 Overview of the iWL280 2_3 Keyboard details and functionality 2_4 Touch panel 3_Use of the terminal 3_1 Switching off the terminal 3_2 Reading card 3_3 Signature handling... - Page 3 4_4 Paper roll 4_4_1 Mains characteristics of INGENICO paper roll 4_4_2 Installing paper roll 4_5 Battery 4_5_1 Main characteristics 4_5_2 Installing the battery 4_5_3 charging the battery 4_5_4 changing the battery 5_Base 5_1_1 Base rear connections 5_1_2 Base downside connections...
-
Page 4: 1_Introduction
1_Introduction We hope that you will be fully satisfied with your new terminal iWL280. This terminal is available in different models. Please select by yourself in this documentation items related to your model. Read this guide to understand and make the best use of your terminal. -
Page 5: 2_Présentation
2_Presentation 2_1 Content of the box 2_1_1 Terminal iWL280 terminal unit equipped with a paper roll A user’s guide Power travel adapter A battery pack disconnected (when no base) 2_1_2 Base ( optional ) A power supply unit that connect the base top the... -

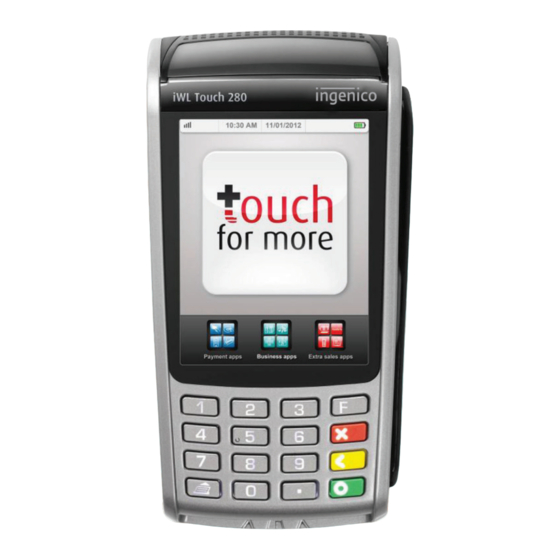

Page 6: 2_2 Overview Of The Iwl280
WARNING The power supply unit provided with your equipment is specially designed for Ingenico terminals. Do not use any other power supply. The use of a power supply with apparently similar voltage/current characteristics may damage your terminal. ADVICE Keep the packaging. It must be re-used whenever the terminal is shipped. -
Page 7: Base Unit
140,7x87,7x45 mm Power supply unit Weight About 100g 2 pole sockets 1A (terminal power supply or base power supply) Power supply units are specially fitted for INGENICO terminals. iWL280 Wireless Series Copyright© 2015 Ingenico 900004307 R11 000 03/1503 All rights reserved... -
Page 8: 2_3 Keyboard Details And Functionality
(more than 2 seconds) It is also used to switch on the terminal 2_4 Touch panel The iWL280 device is equipped with touch panel that allows you capture functions and menus by your finger or using a stylus (orderable separately). iWL280 Wireless Series Copyright©... -
Page 9: 3_Use Of The Terminal
Smart card Card reader: insert the card horizon- tally with the metal chip facing upward and leave in position throughout the transaction. iWL280 Wireless Series Copyright© 2015 Ingenico 900004307 R11 000 03/1503 All rights reserved... -
Page 10: 3_3 Signature Handling
The terminal environment Local usage (language…) 3_3 Signature handling The iWL280 can capture an electronic image of a customer’s signature for transactions that require a signature and transmit to a host system . The signature area displays on the screen for transactions requiring a customer signature. -
Page 11: 3_4 Installing The Terminal On The Base
3_4 Installing the terminal on the base Connecting the terminal on the base Place the iWL280 between the flanges on its base so that the contacts of the IWL280 engage on the contacts provided on the base (see picture below). -
Page 12: 4_2 Terminal Connections
Max relative humidity 85% at +55°C 4_2 Terminal connections There is an USB connector (microAB) on the left side of the iWL280 Wireless terminal (see below picture). This connector manages Host and Slave connexions. USB (microAB) Connector used for PC, travel charger adapter, USB Key, etc…) -
Page 13: 4_3 Installing Modules
SAM 1 SAM 2 4_3_2 MicroSD Memory Card CAUTION Switch off the terminal before opening the trapdoor. MicroSD connector is located inside the terminal, in a closed compartment. iWL280 Wireless Series Copyright© 2015 Ingenico 900004307 R11 000 03/1503 All rights reserved... -
Page 14: To Install Microsd Memory Card
The terminal supports MicroSD up to 32GB Insert the MicroSD Memory Card into the connector slot as shown on the figure. MicroSD Cut corner iWL280 Wireless Series Copyright© 2015 Ingenico 900004307 R11 000 03/1503 All rights reserved... -
Page 15: Paper Roll
Remove the MicroSD Memory Card. Push on MicroSD card edge to remove it. Reconnect the battery (cf 4.5.2) Close the trapdoor 4_4 Paper roll 4_4_1 Mains characteristics of INGENICO paper roll Depending on iWL model two paper roll can be used: R40 paper roll Characteristics Precisions... - Page 16 For best product performance, only use heat sensitized paper approved by Ingenico. WARNING Switch off the terminal prior to installing a paper roll. Use only paper approved by Ingenico. The use of non approved paper is likely to damage the printer of your terminal. iWL280 Wireless Series Copyright©...
- Page 17 4_4_2 Installing paper roll Open the paper compartment by lifting the catch located at the rear of the iWL280 and pull the cover to the rear of the terminal. Insert the paper roll in the compartment following the directions shown on the below picture.
- Page 18 Disengage the trapdoor. Take the battery pack included in the box. Locate the battery pack connector beside the battery compartment. iWL280 Wireless Series Copyright© 2015 Ingenico 900004307 R11 000 03/1503 All rights reserved...
- Page 19 . Charging is automatic When used with a terminal power supply: connect the power supply to iWL280 microAB connector. How does the battery need to be charged? The environment in which the charge takes place...
- Page 20 4_5_4 Changing the battery It is imperative to use a battery authorized by Ingenico. There is danger of explosion if battery used is not approved by Ingenico. Remove the terminal from its base Turn it off by pressing simultaneously...
- Page 21 (*)The terminal memorizes that there is no battery simply by powering up. It will then correctly perform-full recharge with the next battery. iWL280 Wireless Series Copyright© 2015 Ingenico 900004307 R11 000 03/1503 All rights reserved...
- Page 22 5_Base iWL280 Base is available in different models. Please select by yourself in this documentation items related to your model. WARNING Turn off base power supply unit before connection operation. 5_1_1 Base rear connections Ethernet socket (optional) power supply unit socket USB Slave socket-CDC se- Path for wires.
- Page 23 Use “path for wires” to manage cable exit Close trapdoor Path for wires Serial link COM1 – RS232 Serial link COM2 RS232 (optional) RJ11 (optional) Modem socket (optional) iWL280 Wireless Series Copyright© 2015 Ingenico 900004307 R11 000 03/1503 All rights reserved...
- Page 24 Connect the mains power supply wire to the base (socket B). Connect base power supply block to the mains. Socket I: TNV-3 circuit: Telecommunication Network Vol- tage, as per safety standard EN 60950. iWL280 Wireless Series Copyright© 2015 Ingenico 900004307 R11 000 03/1503 All rights reserved...
- Page 25 Uses pattern beside to best locate screws position: WARNING Base must be set in horizontal position to insure terminal link work properly. This remains true when buttonholes are used. iWL280 Wireless Series Copyright© 2015 Ingenico 900004307 R11 000 03/1503 All rights reserved...
- Page 26 Disconnect the iWL280 power supply block adapter from the electrical mains network. Lithium cell (Backup battery) The iWL280 is fitted with an internal lithium cell which can only be accessed by a qualified technician. Battery iWL280 is fitted with battery specially designed for this terminal.
- Page 27 You are strongly advised to ensure that privileged access to your terminal is only granted to staff that have been independently verified as being trustworthy. iWL280 Wireless Series Copyright© 2015 Ingenico 900004307 R11 000 03/1503 All rights reserved...
- Page 28 PIN Code. 6_3 Telephone call You have an urgent call to make while the iWL280 is occupying the line. In order to get a dial tone in short time: Place the handset in the hang up position pressing the red key (=cancel)
-
Page 29: Iwl280 Model Involved Standards
Depending iWL280 model involved standards are: According to harmonised EU standards : Product Product Type EU Directives: Issue date Standards 2006 All product A11:2009 +/ iWL280 EN 60950-1 type A1:2010 A12:2011 203021- 2006 1/2/3 iWL200 PSTN T R 1 0 3 0 0 0 -... - Page 30 Ingenico ensures that efficient collection and recycling schemes are set-up for WEEE and batteries according to the local regulation of your country. Please contact your retailers for more detailed information about the compliance solution in place for disposing of your old product and used batteries.
- Page 31 Possibly adjust the paper roll following the instructions in this manual (section 4.4 “Installing the paper roll”) Check the type of paper used (thermal paper must be used) Verify thermal paper sensitive side. iWL280 Wireless Series Copyright© 2015 Ingenico 900004307 R11 000 03/1503 All rights reserved...
- Page 32 28-32, boulevard de Grenelle, 75015 Paris - France / (T) +33 (0)1 58 01 80 00 / (F) +33 (0)1 58 01 91 35 Ingenico - SA au capital de 47 656 332 / 317 218 758 RCS Nanterre iWL280 Wireless Series Copyright©...
