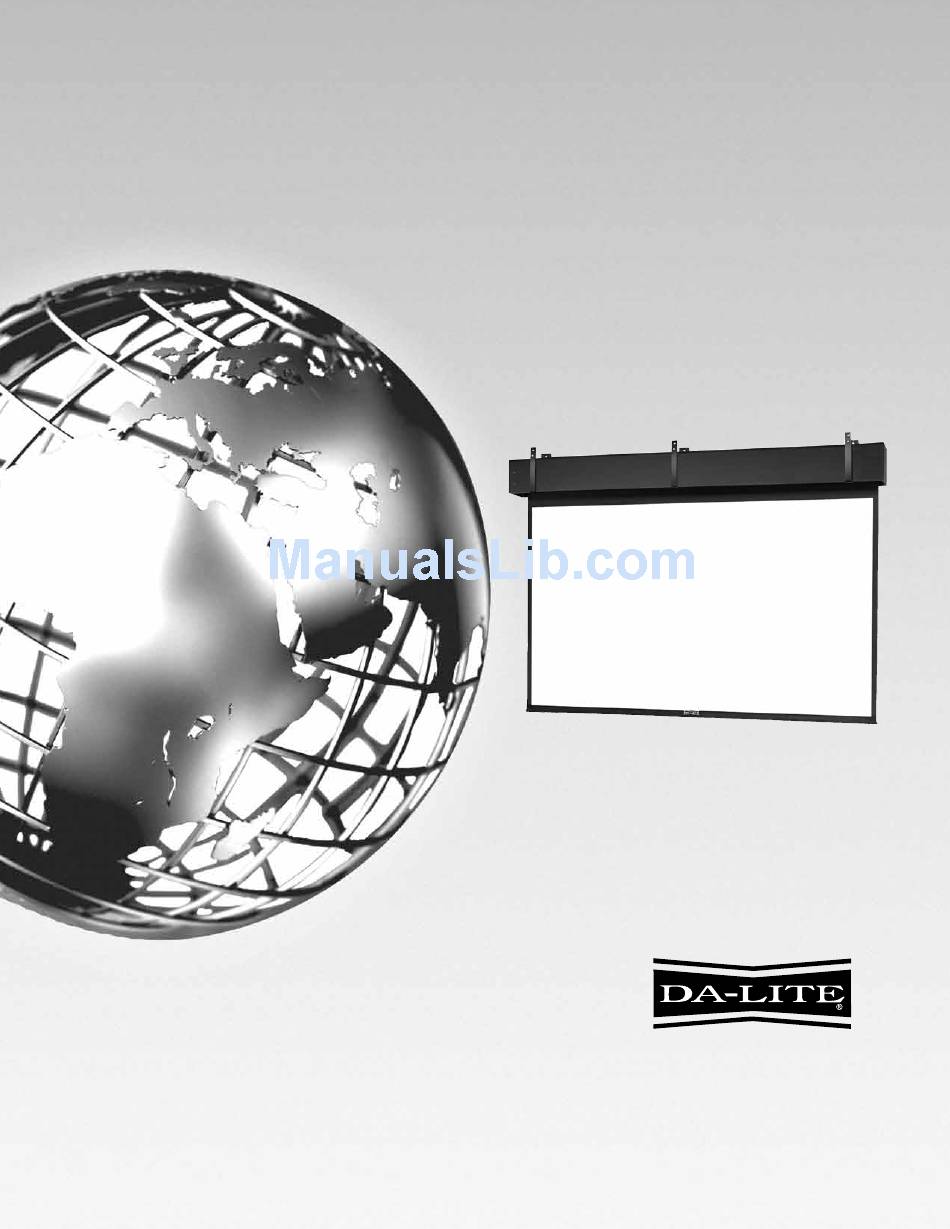

The Da-Lite Difference.
Instruction Book for
DA-LITE SCREEN COMPANY, INC.
3100 North Detroit Street
professIonal electrol®
Post Office Box 137
Warsaw, Indiana 46581-0137
Phone: 574-267-8101
800-622-3737
Fax: 574-267-7804
www.da-lite.com
e-mail: info@da-lite.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the professional electrol and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Da-Lite professional electrol

Summary of Contents for Da-Lite professional electrol

  • Page 1 The Da-Lite Difference. Instruction Book for DA-LITE SCREEN COMPANY, INC. 3100 North Detroit Street professIonal electrol® Post Office Box 137 Warsaw, Indiana 46581-0137 Phone: 574-267-8101 800-622-3737 Fax: 574-267-7804 www.da-lite.com e-mail: info@da-lite.com...

  • Page 2: Pre-Installation

    PRE-INSTALLATION 1. Carefully unpack screen. 2. Make sure to recheck measurements of screen location before installation. 3. Remove instruction cover plate (Fig. 2). Do not remove wrapping paper or tape strips until screen is installed. IRONING BOARD Professional Electrols, 14' and over, contain an ironing board to flatten the fabric (long strip attached). The ironing board is part of the screen case.

  • Page 3: Screen Adjustment

    Surface travel is stopped automatically in the fully opened and closed positions by limit switches that are properly ad- justed at Da-Lite. Should it be necessary to adjust more or less drop of picture, proceed in the following manner: CAUTION! WHEN ADJUSTING AND TESTING, BE PREPARED TO STOP SCREEN QUICKLY AS SERIOUS DAMAGE MAY OCCUR.
  • Page 4 PROFESSIONAL ELECTROL INSTALLATION SCREENS UP TO 18' WIDE SCREENS 20' AND WIDER 9-1/2" 10-3/4" Length = Fabric Width Length = Fabric Width 11-5/16" 12-9/16" +10", All Sizes +10", All Sizes Reinforced 5" Reinforced 5" Motor End Motor End Motor In The Roller...
  • Page 5 NOTE: A SINGLE SWITCH CANNOT BE USED TO OPERATE MORE THAN ONE SCREEN. CONTACT THE FACTORY FOR FURTHER INFORMATION. 240 VOLT WIRING DIAGRAM FOR STANDARD WALL SWITCH: Da-Lite offers two styles of 240 volt wall switches for standard operation. Please see wiring diagram in wall switch box included with screen.
  • Page 6 TROUBLESHOOTING SYMPTOM CAUSE SOLUTION 1. Screen will not operate or will not (a) Blown facility fuse. (a) Replace facility fuse. go “down.” Motor does not hum. (b) Tripped facility circuit breaker. (b) Reset facility circuit breaker. (c) No power to operating switch or (c) Check above.
  • Page 7 TROUBLESHOOTING SYMPTOM CAUSE SOLUTION 3. “Down” limit switch incorrect. (a) “Down” limit switch out of (a) See installation instructions adjustment 4. Noise (a) Squeaking, rubber end plug rub- (a) Center roller between mounting bing on motor. brackets by pushing roller away NOTE: Screen will operate with a from motor end.
  • Page 8 EQUIPMENT, OR FOR INCIDENTAL, DIRECT, OR CONSEQUENTIAL DAMAGES OF ANY NATURE. In the event that there is a defect in materials or workmanship of a Da-Lite product, you may contact our Sales Partners at PO Box 137, Warsaw, IN 46581-0137, (574) 267-8101, (800) 622-3737.
