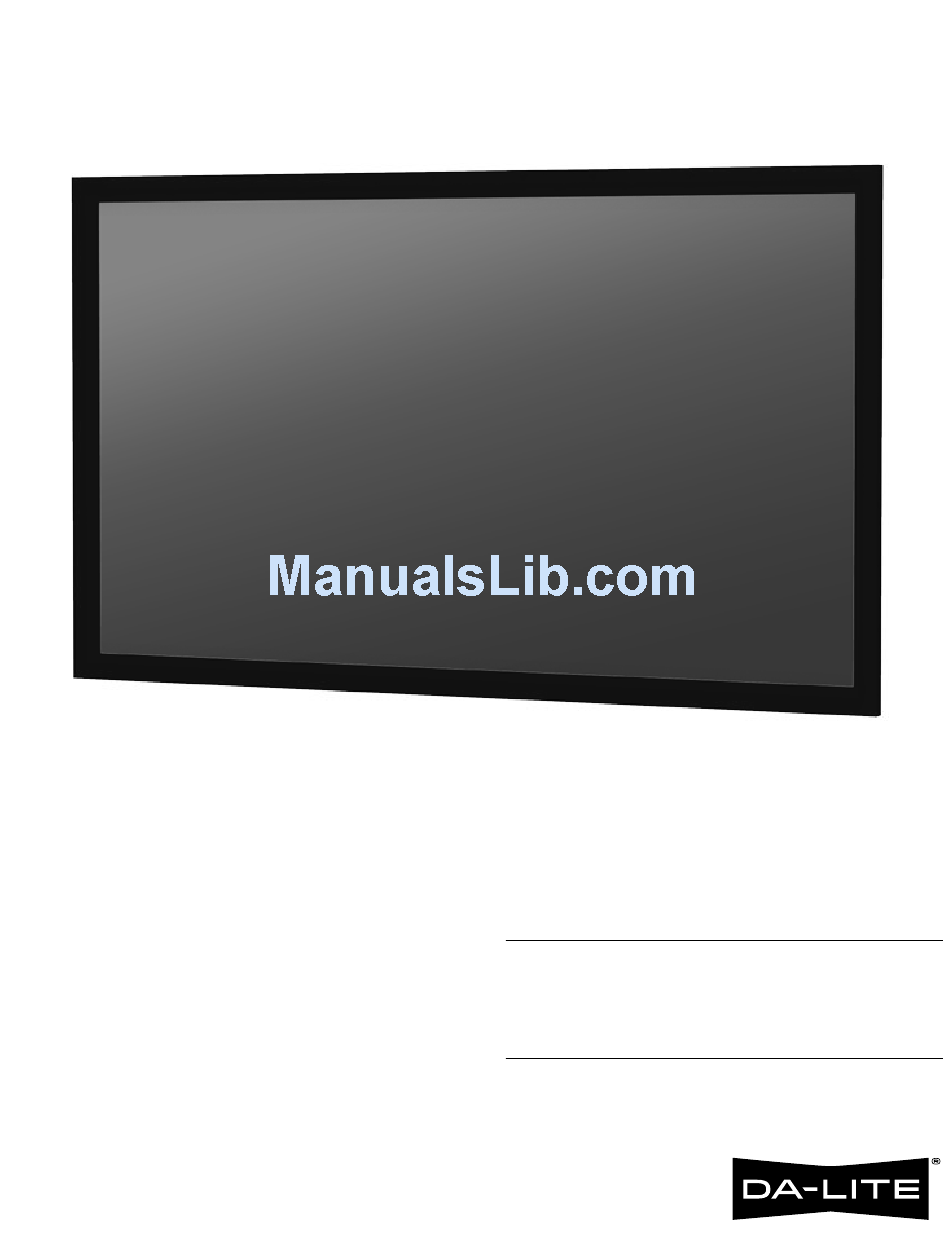

- Page 1 INSTRUCTION BOOK FOR Parallax Screen ™...
-
Page 2: Included Hardware
Included Hardware Large Wall Bracket (47" Long) Installation screws not included Small Wall Bracket (8" Long) Quantities vary by screen size: Installation screws not included Screens 80" and smaller viewing width = 1 Screens over 80" to 96" viewing width = 2 Quantity = 1. -
Page 3: Frame Assembly
Do not puncture screen surface. Cleaning Parallax screen surface can be cleaned as follows: Using a white clean cloth (100% cotton preferred) that is dampened with clean water, gently wipe the area in a horizontal direction. Do not wipe in a vertical direction or with a circular motion. Using a dry 100% cotton cloth, wipe screen surface dry in horizontal direction... - Page 4 Surface Attachment 1. Unpack screen surface. 3. Remove foam and unroll screen surface evenly on the back of the frame. Make sure that the perimeter of the screen CAUTION: Handle screen surface with care. See Material surface is resting on the frame. See Figure 2. Handling Guidelines.
- Page 5 Surface Attachment (continued) 5. Repeat Step 4 for the remaining three corners of the screen. 7. Start at the top right corner and work counter clockwise Use the sequence shown in Figure 4. inserting an elastic ring into the hole in the screen surface and secure it over the stud.
-
Page 6: Installation
Installation There are three methods of installation based on the size of the Method 1: Screens 80" and smaller in viewing width. screen. Measure the width of the viewing area of your screen Method 2: Screens over 80" up to 96" in viewing width. and refer to the appropriate method of installation below. - Page 7 Installation Method 2 (Screens Over 80" Up To 96" In Viewing Width) 1. Secure the wall bracket to wall studs at the desired height. 2. To install the bottom large wall bracket, you must measure Make sure the bracket is level. The top of the frame will be the overall height of the screen frame and subtract 1/2".
- Page 8 Da-Lite’s sole obligation under this warranty shall be to repair or to replace (at Da-Lite’s option) the defective part of the merchandise. Returns for service should be made to your Da-Lite dealer. If it is necessary for the dealer to return the screen or part to Da-Lite, transportation expenses to and from Da-Lite are payable by the purchaser and Da-Lite is not responsible for damage in shipment.
