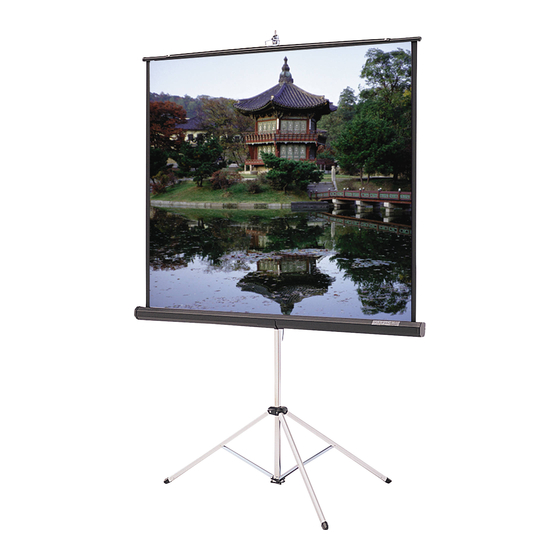

Da-Lite Picture King Assembly Instructions Manual

Da-Lite Picture King Assembly Instructions Manual

Hide thumbs Also See for Picture King:

Advertisement

Quick Links

Da-Lite: Selecting The Right Screen
http://www.dalite.com/educational_materials/selecting1.php
Da-Lite
>
Educational Materials
Da-Lite offers a wide array of screens each with a choice of projection surfaces. Selecting
the right combination to meet your needs is important for optimum results. The following
pages offer guidelines for selecting a screen that suits your application. Although these
recommendations will work in most situations, each must be looked at not as a strict rule,
but rather as a guideline for determining your actual needs based on your own situation.
For additional help in selecting screens, contact Da-Lite for the free publications
"Selecting Front Projection Screens for Today's Presentation Media Applications" or
"Selecting Rear Projection Screens for Today's Presentation Applications". Of course, your
Da-Lite Sales Partner is also happy to assist you.
Four Steps to the Right Screen
1. Pick the type screen that best suits your particular needs. For example, choose from
front projection or rear projection screens in either portable, wall or ceiling mounted
models in either manual or electric versions or rear projection. Generally, if your
projection application is permanent, then wall and ceiling screens are your best choice. If,
however, you find your needs require moving the screen to different locations, then a
portable screen is a better alternative.
2. Determine the optimum screen size based on room dimensions, planned audience
seating size and arrangement. The rule of thumb is to fit the screen to the audience - not
to the projector. Da-Lite recommends the following formula for determining screen size:
Screen height should be approximately equal to 1/6 the distance from the screen
to the last row of seats, allowing text to be read and detail to be seen in the
projected image.
The bottom of the screen should be a minimum of 4 feet above the audience floor,
allowing those seated toward the rear of the audience to see the screen. This may
require additional screen "drop" for ceiling hung screens.
3. Select the appropriate format for your projection application. Common formats are as
follows:
Common
Applications
NTSC Video
PAL Video
HDTV Video
Letterbox Video
Cinemascope
35 MM Filmstrip
2x2 Standard 35MM Double-Frame Slides
4. Choose the screen surface that best suits your projection and viewing requirements.
For your convenience, the front and rear projection pages provide descriptions and
performance characteristics for each front and rear screen surface. If the screen will be
used for multiple projection methods, choose the screen surface that meets the
requirements of the lesser performing projection method. For example, if using a slide
projector and a video projector, choose the screen surface for the video projector since its
light output is generally less than a slide projector.
Front Projection Screen Surfaces
Rear Projection Screen Surfaces
> Selecting The Right Screen
Aspect Ratio
Width/Height
1.33
1.33
1.78
1.85
2.35
1.32
1.50

Advertisement

loading
Need help?

Need help?

Do you have a question about the Picture King and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Da-Lite Picture King

  • Page 1 Educational Materials > Selecting The Right Screen Da-Lite offers a wide array of screens each with a choice of projection surfaces. Selecting the right combination to meet your needs is important for optimum results. The following pages offer guidelines for selecting a screen that suits your application. Although these recommendations will work in most situations, each must be looked at not as a strict rule, but rather as a guideline for determining your actual needs based on your own situation.
  • Page 2 Built-in keystone release eliminator tilts the screen conveniently forward to compensate unlocks the for distortion found with Picture King’s legs. overhead projectors. SQUARE FORMAT S i z e Dimensions C a r p e t e d Video S u p e r...
  • Page 3 DA-LITE IS MORE Assembly Instructions THAN PROJECTION SCREENS Picture King Da-Lite Tripod, Wall & Ceiling and Electric Screens Da-Lite Overhead Projectors Da-Lite Da-Lite Lecterns Model 5000 Portable Communications Cabinets POWER PRESENTATION PRODUCTS DA-LITE SCREEN COMPANY, INC. Da-Lite 3100 North Detroit Street...
  • Page 4 IMPORTANT PARTS OPTIONS OF YOUR DA-LITE SCREEN (When ordering parts, please specify screen SILVER LENTICULAR PICTURE SURFACES model and size.) Silver Lenticular surfaces are sensitive to temperature changes which may temporarily cause slight unevenness after a screen has been rolled up for a time.
  • Page 5: Closing The Screen

    Before re-rolling surface into case, examine both USING SCREEN IN LOWEST POSITION front and back of surface to be sure they are free of foreign matter. A Da-Lite Screen case cover is a wise and economical investment. Follow steps 1 through 3 above.
  • Page 6 • Flat Back No-Rub Octagon Case YOU HAVE MADE A WISE SELECTION… • High Impact Plastic End Caps in choosing a Da-Lite projection screen, designed and engineered • Wide Range Height Adjustment to produce the sharpest, most pleasing pictures with maximum •...
  • Page 7 ® STANDARD FAST-FOLD SCREEN SYSTEM Large Sturdy Portable Screens up to 14' Wide • Lightweight yet exceptionally stable folding aluminum frames fit into a case for convenient transport and storage. • Frames fold without coming apart while “speedy cranks” allow “set up” and “tear down” without tools. •...
  • Page 8 Instruction Book For Fast-Fold ® Screen Frames Standard T-Leg POWER PRESENTATION PRODUCTS DA-LITE SCREEN COMPANY, INC. 3100 North Detroit Street Post Office Box 137 Warsaw, Indiana 46581-0137 Phone: 219/267-8101 800-622-3737 Fax: 219/267-7804 http:// www.da-lite.com e-mail: info@da-lite.com...
  • Page 9 PROCEDURE Da-Lite Fast-Fold frames are made of 1” square hard aluminum tubing with an anodized finish. With proper care they will provide many years of use. Please follow the set up instructions below (steps 1-5). 1. Remove the frame from its case and wrapping. Position it as shown (front view).
  • Page 10 PROCEDURE 3. Rotate the frame 90 degrees as shown below (front view). LATCH LATCH LATCH LATCH LOOKING FROM THE FRONT 4. Rotate the latches on both sides until they lock with the rivets as shown below. ROTATE LATCH UNTIL IT LOCKS WITH RIVET ON BOTH SIDES RIVET 5.
  • Page 11 FOLDING THE PICTURE SURFACE FOR PACKING When folding the screen material for packing, observe the 4. After the top to bottom folding procedure is following precautions before proceeding: completed, then fold from left to right and continue folding until the fabric is of sufficient size to fit into 1.
  • Page 12 ® FAST -FOLD TRUSS FRAME SCREENS Large Heavy-Duty Portable Screens • Extra heavy-duty, folding 6" truss frame and legs accommodate virtually any screen size. • Welded 1" aluminum tubing forms a sturdy yet lightweight 6" x 1" truss member for frame and legs. •...
  • Page 15 DRAPERY PRESENTATION KIT Professional Stage Front Appearance • 16 oz., fire retardant cotton velour drapery attaches with snaps to Fast-Fold screens to enhance image and project a professional appearance. • Drapery is fully pleated for finished professional look. • Complete kit contains a valance bar, 14" high valance drape, wing bars, 32"...
  • Page 16: Fast-Fold Screen Accessories

    FAST-FOLD SCREEN ACCESSORIES Anti-Sway Brace A-T Legs Attaches to either side of leg for added horizontal Front and back reinforced stability on screens larger than 14' wide. Uses hook legs for additional stability on clamps which are sold separately. all Fast-Fold Screens. Add-on “A”...
