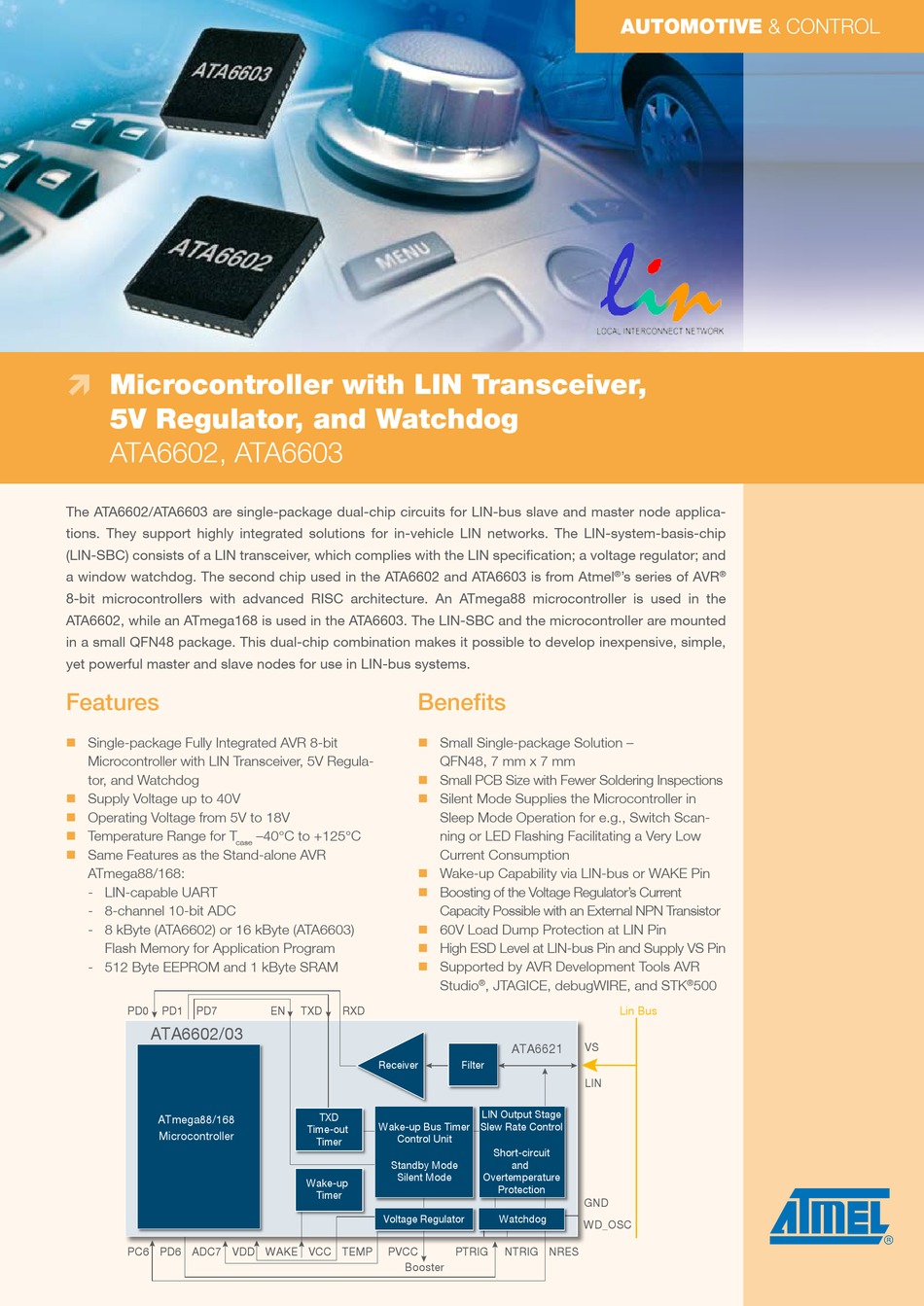

Microcontroller with LIN Transceiver,

5V Regulator, and Watchdog
ATA6602, ATA6603
The ATA6602/ATA6603 are single-package dual-chip circuits for LIN-bus slave and master node applica-
tions. They support highly integrated solutions for in-vehicle LIN networks. The LIN-system-basis-chip
(LIN-SBC) consists of a LIN transceiver, which complies with the LIN specification; a voltage regulator; and
a window watchdog. The second chip used in the ATA6602 and ATA6603 is from Atmel
8-bit microcontrollers with advanced RISC architecture. An ATmega88 microcontroller is used in the
ATA6602, while an ATmega168 is used in the ATA6603. The LIN-SBC and the microcontroller are mounted
in a small QFN48 package. This dual-chip combination makes it possible to develop inexpensive, simple,
yet powerful master and slave nodes for use in LIN-bus systems.
Features
n Single-package Fully Integrated AVR 8-bit
Microcontroller with LIN Transceiver, 5V Regula-
tor, and Watchdog
n Supply Voltage up to 40V
n Operating Voltage from 5V to 18V
n Temperature Range for T
case
n Same Features as the Stand-alone AVR
ATmega88/168:
- LIN-capable UART
- 8-channel 10-bit ADC
- 8 kByte (ATA6602) or 16 kByte (ATA6603)
Flash Memory for Application Program
- 512 Byte EEPROM and 1 kByte SRAM
PD0 PD1 PD7
ATA6602/03
ATmega88/168
Microcontroller
PC6 PD6 ADC7 VDD
Benefits
n Small Single-package Solution –
n Small PCB Size with Fewer Soldering Inspections
n Silent Mode Supplies the Microcontroller in
–40°C to +125°C
n Wake-up Capability via LIN-bus or WAKE Pin
n Boosting of the Voltage Regulator's Current
n 60V Load Dump Protection at LIN Pin
n High ESD Level at LIN-bus Pin and Supply VS Pin
n Supported by AVR Development Tools AVR
EN TXD RXD
Receiver
TXD
Wake-up Bus Timer
Time-out
Control Unit
Timer
Standby Mode
Silent Mode
Wake-up
Timer
Voltage Regulator
Voltage Regulator
WAKE VCC TEMP PVCC
Booster
®
QFN48, 7 mm x 7 mm
Sleep Mode Operation for e.g., Switch Scan-
ning or LED Flashing Facilitating a Very Low
Current Consumption
Capacity Possible with an External NPN Transistor
Studio , JTAGICE, debugWIRE, and STK
®
VS
ATA6621
Filter
LIN
LIN Output Stage
Slew Rate Control
Short-circuit
and
Overtemperature
Protection
GND
Watchdog
WD_OSC
PTRIG NTRIG NRES
AuToMoTIVe & CONTROL
's series of AVR
®
500
®
Lin Bus
