Design and function
MIG/MAG welding
5.8.1.2

MIG/MAG cored wire welding

Item Symbol
1
2
3
4
5
6
7
8
9
36
Description 0
Workpiece
Connection socket, "+" welding current
•
MIG/MAG cored wire welding:
Welding torch
Welding torch hose package
19-pole connection socket (analogue)
For connecting analogue accessory components (remote control, welding torch control
lead, etc.)
Welding torch connection (Euro or Dinse torch connector)
Welding current, shielding gas and torch trigger integrated
Welding current cable, polarity selection
Welding current to central connection/torch. Permits polarity selection for MIG/MAG
welding.
•
Cored wire welding > Connection for "-" welding current connection socket
Quick connect coupling (red)
coolant return
Quick connect coupling (blue)
coolant supply

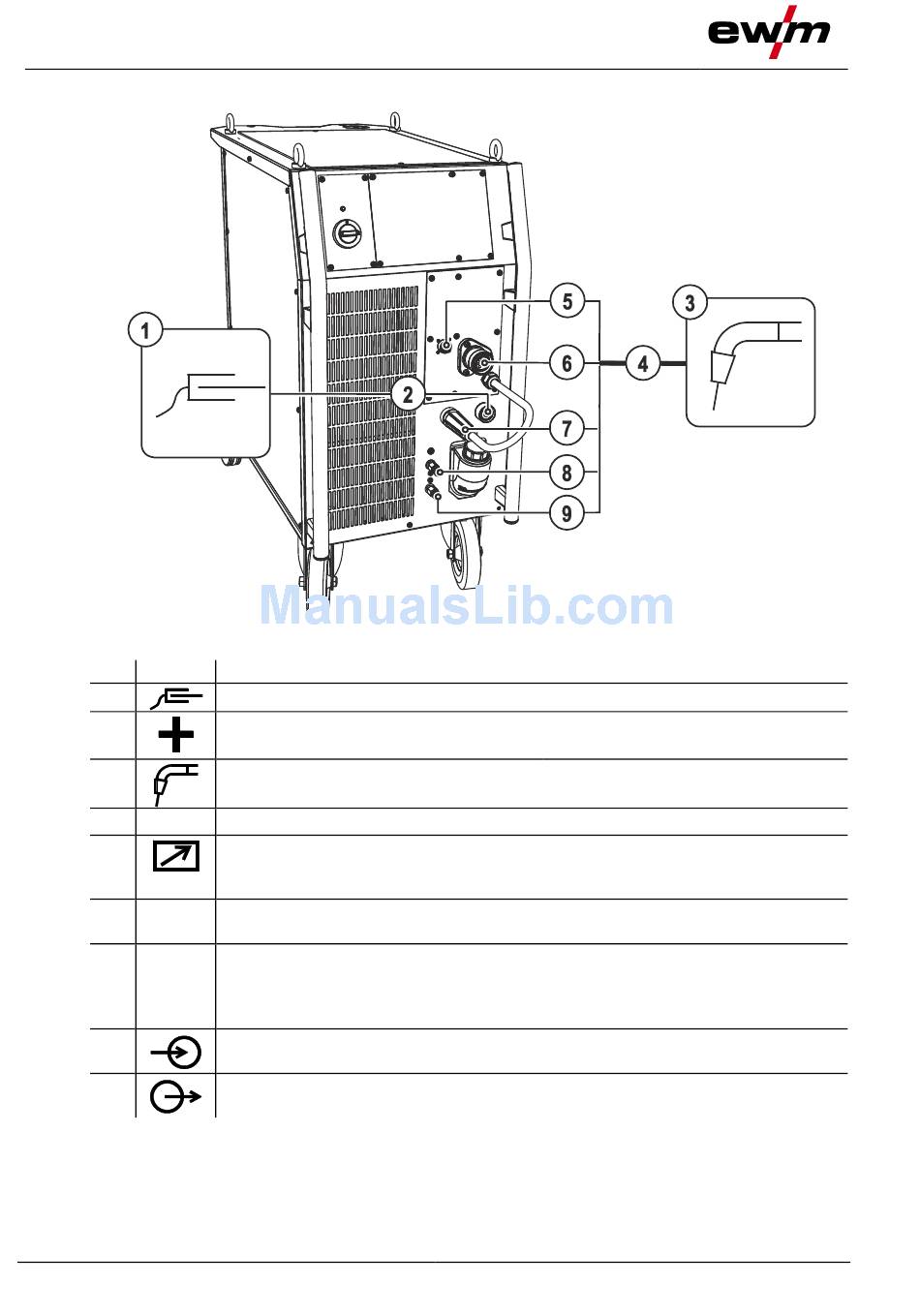

Figure 5-7
Workpiece connection
