ARMADO

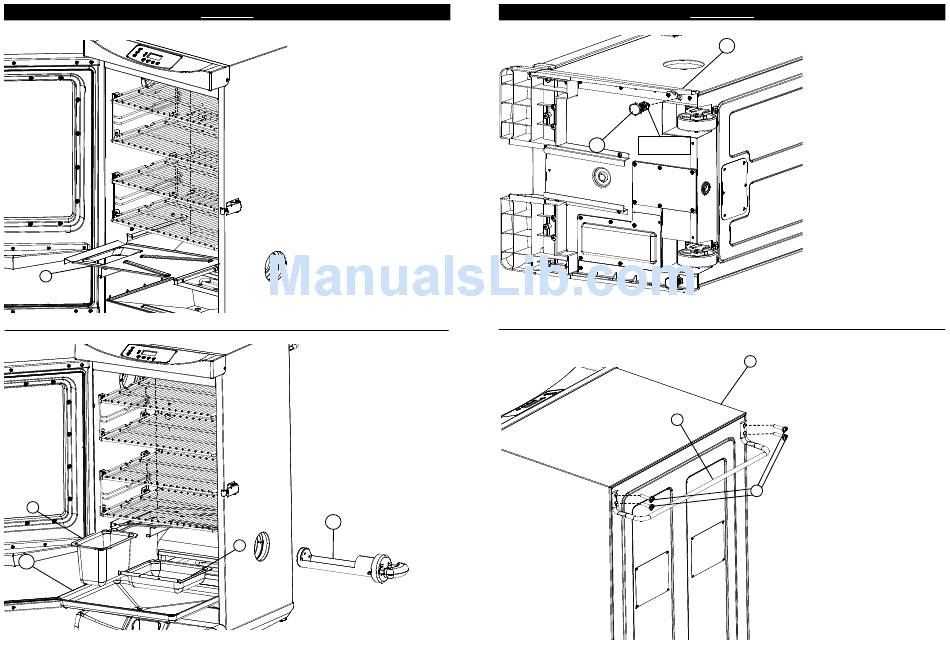

PASO 11
Alinee los orifi cios guía del
defl ector de residuos (5) con los
pasadores del interior del cuerpo
del ahumador. Presione el defl ector
de residuos hacia abajo para fi jarlo
en su lugar.
PASO 12
Coloque el recipiente para el
agua (8), la bandeja paara trocitos
de madera (9) y el colector de
residuos (10) dentro del ahumador,
como se ilustra.
Introduzca el cargador de trocitos
de madera (12) en el costado del
ahumador.
Ya ha terminado el armado.
12
9
ASSEMBLY
23
11
TENSION NUT
1
3
A
STEP 5
Insert adjustable screw leg
(11) through bottom of side
panel (23) as shown, and
into smoker body.
Repeat step on opposite
side for remaining adjustable
screw leg.
Note: When unit is upright,
set adjustable screw leg
height by turning clockwise/
counterclockwise, so that
smoker is level. Once level,
secure leg positions by tight-
ening tension nuts.
STEP 6
Carefully position smoker
as shown.
Attach rear handle (3) to back
of smoker body (1) using phil-
lips screws (A) as shown.
Note: Do not lift unit
by rear handle.
