INSTALLATION INSTRUCTIONS
STEP 2: Install InfiniMount Brackets
Attach each InfiniMount bracket to the correct side of the radio
using the supplied screws. Before tightening the screws, you need
to adjust the brackets up, down, forward or backward. You may
also rotate, cut, or bend the brackets to achieve the perfect fit
(See Figure 2). Complete the assembly with at least two screws
tightened on each side.
NOTE: In some installations the brackets must be moved far enough forward or
backwards or rotated so that only two screws will align with the threaded screw holes
on the radio. Two screws are sufficient to hold the brackets in place.

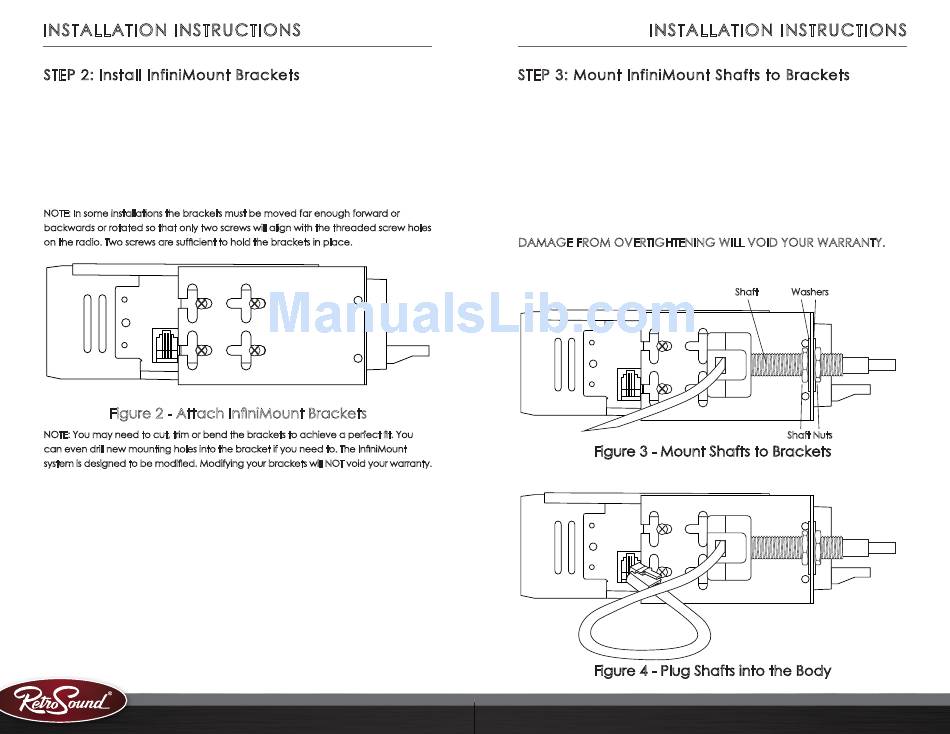

Figure 2 - Attach InfiniMount Brackets
NOTE: You may need to cut, trim or bend the brackets to achieve a perfect fit. You
can even drill new mounting holes into the bracket if you need to. The InfiniMount
system is designed to be modified. Modifying your brackets will NOT void your warranty.
R
INSTALLATION INSTRUCTIONS
STEP 3: Mount InfiniMount Shafts to Brackets
To match the the location of your shafts to the proper width of your
vehicle's dash, first measure the distance between your existing shaft
holes from center to center.
Mount a shaft to each bracket using the supplied shaft nuts
and washers. Finger tighten the shaft nuts to prepare for the final
installation (See Figure 3). Once you ensure proper width, tighten
the screws and nuts (DO NOT OVERTIGHTEN).
DAMAGE FROM OVERTIGHTENING WILL VOID YOUR WARRANTY.
Finally, plug the shafts into each side of the main unit (See Figure 4).
Figure 3 - Mount Shafts to Brackets
Figure 4 - Plug Shafts into the Body
Shaft Washers
Shaft Nuts
