RetroSound Model two User Manual
Hide thumbs
Also See for Model two:
- Installation and owner's manual (44 pages) ,
- Owner's manual (41 pages) ,
- User manual (38 pages)
Related Manuals for RetroSound Model two
Summary of Contents for RetroSound Model two
- Page 1 USER’S MANUAL MOD E RN SOUND FOR YOUR CLASSIC www.re tr om anufa ct ur i n g.c o m...
-
Page 2: Table Of Contents
Windows Media and the windows logo are trademarks, or registered trademarks of ® Microsoft Corporation in the United States and/or other countries. OPERATING YOUR MODEL TWO The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc., and any ®... -
Page 3: Welcome

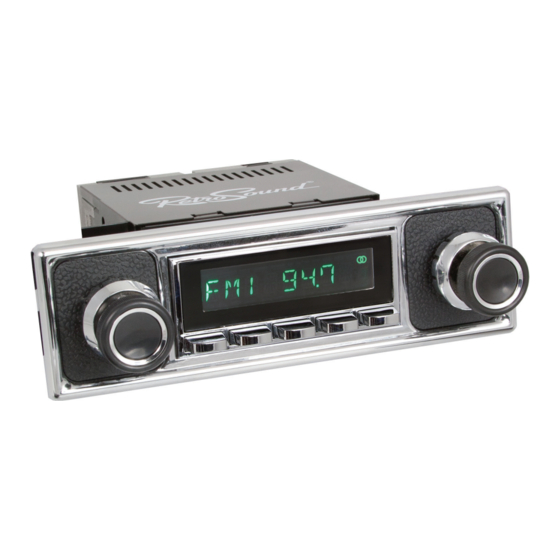

Two combines classic styling with the advanced features you expect from a modern car stereo. Model Two consists of two main parts: the Model Two radio face and the Motor 3 body. General Features • The only classic car radio compatible with iPod and iPhone ®... -
Page 4: Precautions
If you have questions about installing your installation of the unit. Please be sure to follow the radio, contact us at support@retrosound.com or call us instructions carefully while attempting installation. at 888.325.1555. -
Page 5: Installation Instructions
Plug the ribbon cable included with the Motor 3 body into the Model Two radio face. After plugging in the face, attach • After installation and wiring, always check the normal it to the body and tighten with the 4 radio face mounting operation of other electrical equipment. - Page 6 INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS STEP 2: Install InfiniMount Brackets STEP 3: Mount InfiniMount Shafts to Brackets Attach each InfiniMount bracket to the correct side of the radio To match the the location of your shafts to the proper width of your using the supplied screws.
-
Page 7: Wiring Diagram
INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS STEP 4: Complete Wiring Connections NOTE: This unit requires +12 volts to both the red and yellow wires to operate properly. Locate the three wire harnesses: main wire harness, power wire harness and speaker wire harness (See “What’s in the Box” on page 4). -
Page 8: Basic Operation
INSTALLATION INSTRUCTIONS OPERATING YOUR RADIO Rear USB Inputs Basic Operation Two USB connector cables are located at the rear of the Motor 3 radio body. During installation, you must route the cables to a convenient and accessible location for plugging in USB devices. If the cables provided are not long enough (40 inches), you may use our optional USB/AUX Extension Cable to extend the reach of the cable. -
Page 9: General Operation
(two AM and three FM). Press the left front knob (#1) to turn the unit on. will appear on the screen. RETROSOUND Storing Radio Pre-sets Press and hold the left front knob (#1) to turn the unit off. -
Page 10: Tone Controls
OPERATING YOUR RADIO OPERATING YOUR RADIO Tone Controls Balance This sub-menu ( ) allows adjustment of stereo sound to left or right. This sub-menu allows advanced tonal adjustments, balance and This may be helpful in compensating for the position of the driver fader controls and the pre-set equalizer options. -
Page 11: System Settings
OPERATING YOUR RADIO OPERATING YOUR RADIO Middle Crossover Frequency Local/Distant This sub-menu ( ) allows adjustment of the frequency This sub-menu changes the sensitivity of the FM tuner. When Mid 1.0K crossover of the mid signals between 0.5KHz, 1.0KHz, 1.5KHz listening to the FM tuner, selecting between LOCAL DISTANT... - Page 12 Bluetooth connections. DISCON ® screen, and it will revert back to the last station selected. To connect your device, choose , then search for BT CONNEC “RETROSOUND” in your phone’s Bluetooth device list. ® Enter password “0000” if prompted.
- Page 13 Area USA/EUR/AUS/JAP/RUS MP3 and unprotected (no DRM) WMA files off the flash drive. Model Two has the capability to receive radio broadcasts from Common facts about these compressed-sound formats: around the world. This sub-menu allows you to adjust to broadcasts in your country.
- Page 14 This radio will NOT read NTFS formatted drives. The preset buttons (#3-7) on the front of the radio’s control face will • Model Two will read files placed in the root directory first before allow you to play/pause, listen to 10 seconds of each song ( INTro playing files in the folder structure of the drive.
-
Page 15: Bluetooth ® Instructions
The microphone is very sensitive, and ® you may speak at normal volume when using hands-free operation. phone (this may take up to 30 seconds) and select “RETROSOUND” from the Bluetooth device list. ® Streaming Music From Your Device 4. -
Page 16: Troubleshooting
I’m having problems getting the radio to turn on. connected or incorrect accessory wire voltage connection RetroSound radios require 12 volts to both power leads. The red ® Ground wire Check ground lead (+12 volt accessory) goes to a switched power source, and... - Page 17 888.325.1555. format, which can easily be done using iTunes. • Verify the capacity of the flash drive. Model Two How much should I tighten the shaft nuts when installing the brackets and mounting the radio to the dash? will play 1 gig up to 32 gig size flash drives.
-
Page 18: Specifications
Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable) 530-1710 kHz To handle a warranty issue, contact us at support@retrosound.com or 888.325.1555 for a Return Authorization (RA) number. All returns and warranty issues must be accompanied by a Return Antenna Terminal External Antenna Connector Authorization number. -
Page 19: Replacement Parts
REPLACEMENT PARTS INSTALLATION NOTES If you need replacement parts, contact us at support@retrosound.com or call 888.325.1555 (See “What’s in the Box” on page 4 to confirm the part(s) needed). NOTE: If you return a radio to us for credit, any missing parts will be debited. - Page 20 MODERN SOUND FOR YOUR CLASSIC Retro Manufacturing, LLC, 7390 Eastgate Road, Suite 140 Henderson, NV 89011 p) 888.325.1555 | f) 702.483.2229 | www.retromanufacturing.com...
