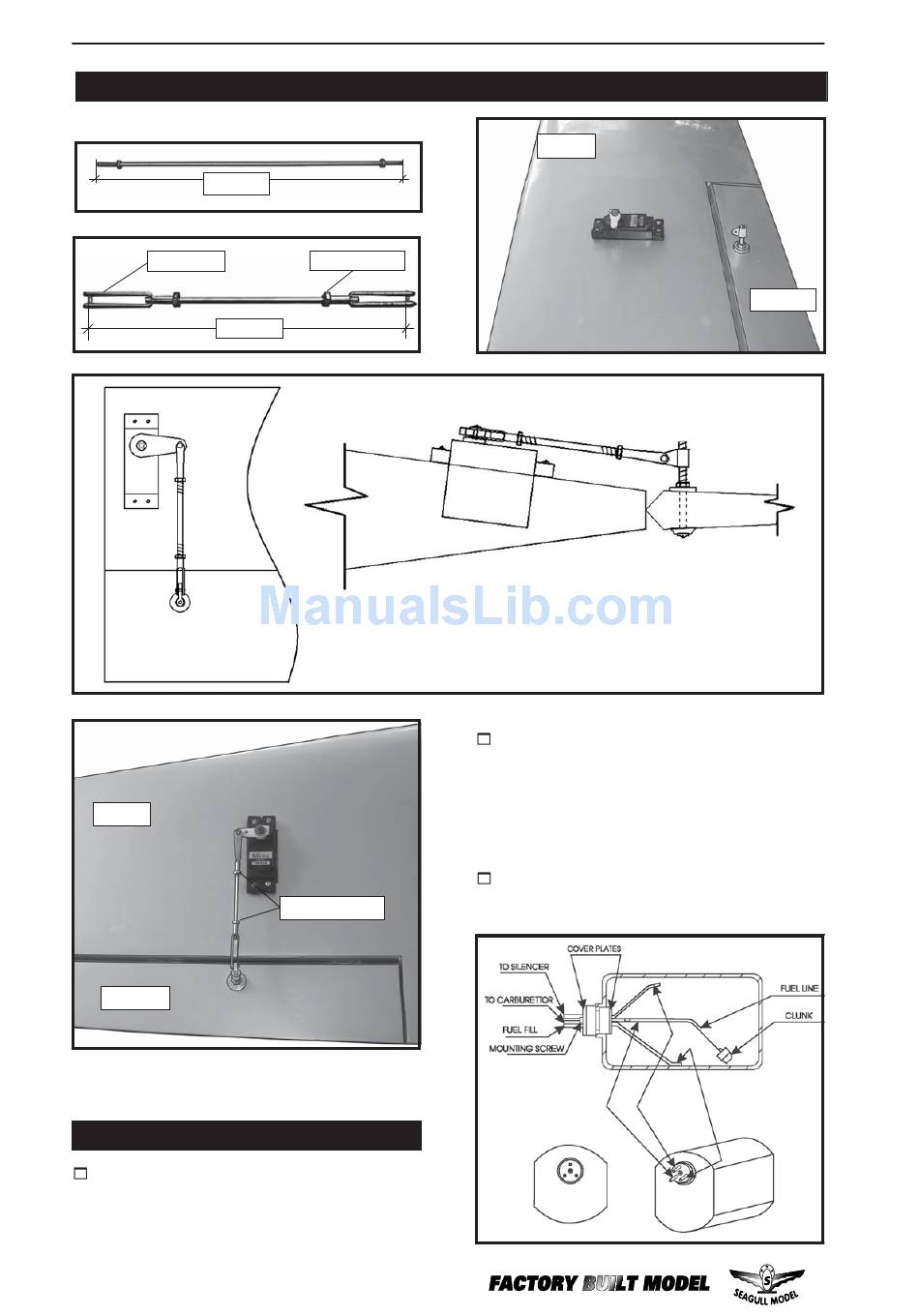

Seagull Models AT-6 TEXAN Assembly Manual page 10

AT-6 TEXAN _
CODE SEA 76
75mm.
M2 clevis.
110 mm.
Wing
.
Aileron
.
Wing.
Aileron.
Repeat the procedure for the other wing
half.
INSTALLING THE STOPPER ASSEMBLY
1) Using a modeling knife, carefully cut
off the rear portion of one of the 3 nylon tubes
leaving 1/2" protruding from the rear of the
stopper. This will be the fuel pick up tube.
10
.
INSTALLATION THE PUSHROD .
M2 lock nut.
Wing
.
M2 lock nut.
.
Instruction Manual.
Wing.
2) Using a modeling knife, cut one length
of silicon fuel line. Connect one end of the line
to the weighted fuel pick up and the other end
to the nylon pick up tube.(The silicon tube is
not included).
3) Carefully bend the second nylon tube up
at a 45º angle. This tube is the vent tube.
Aileron.
Aileron
.
