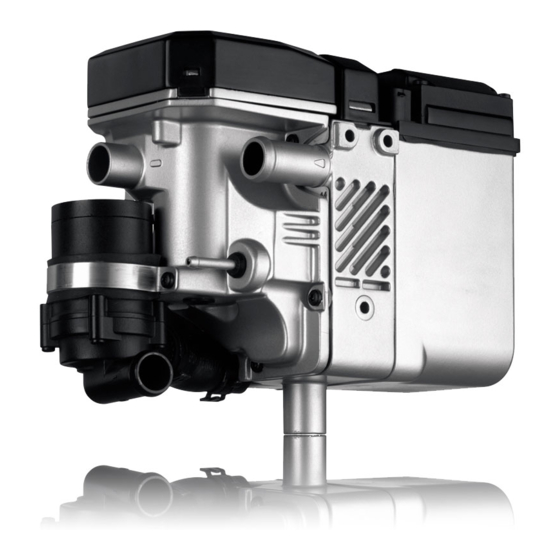

Water Heater unit
Supplementary heating Thermo Top C
Installation instructions
Dodge Caliber
Diesel
From model year 2007
For left-hand drive vehicles only
WARNING!
Hazard warning:
Incorrect installation or repair of Webasto heating systems may cause a fire or result in the
emission of carbon monoxide, which can be fatal. Serious or fatal injuries can be caused as
a result.
Specialist company training, technical documentation, specialized tools and equipment are
required to install and repair Webasto heating and cooling systems.
NEVER attempt to install or repair Webasto heating or cooling systems if you have not
successfully completed the company training and thereby acquired the required technical
skills or if you do not have access to the required technical documentation, tools and
equipment needed to carry out correct installation and repairs.
ALWAYS follow all Webasto installation and repair instructions and observe all warning
instructions.
Webasto does not accept any liability for defects and damage that are attributable to an
installation by untrained staff.
Ident. No.: 1311556A
e1
00 0002
€10 fee
Feel the drive
© Webasto AG
