Water heater unit

Thermo Top C Auxiliary Heating

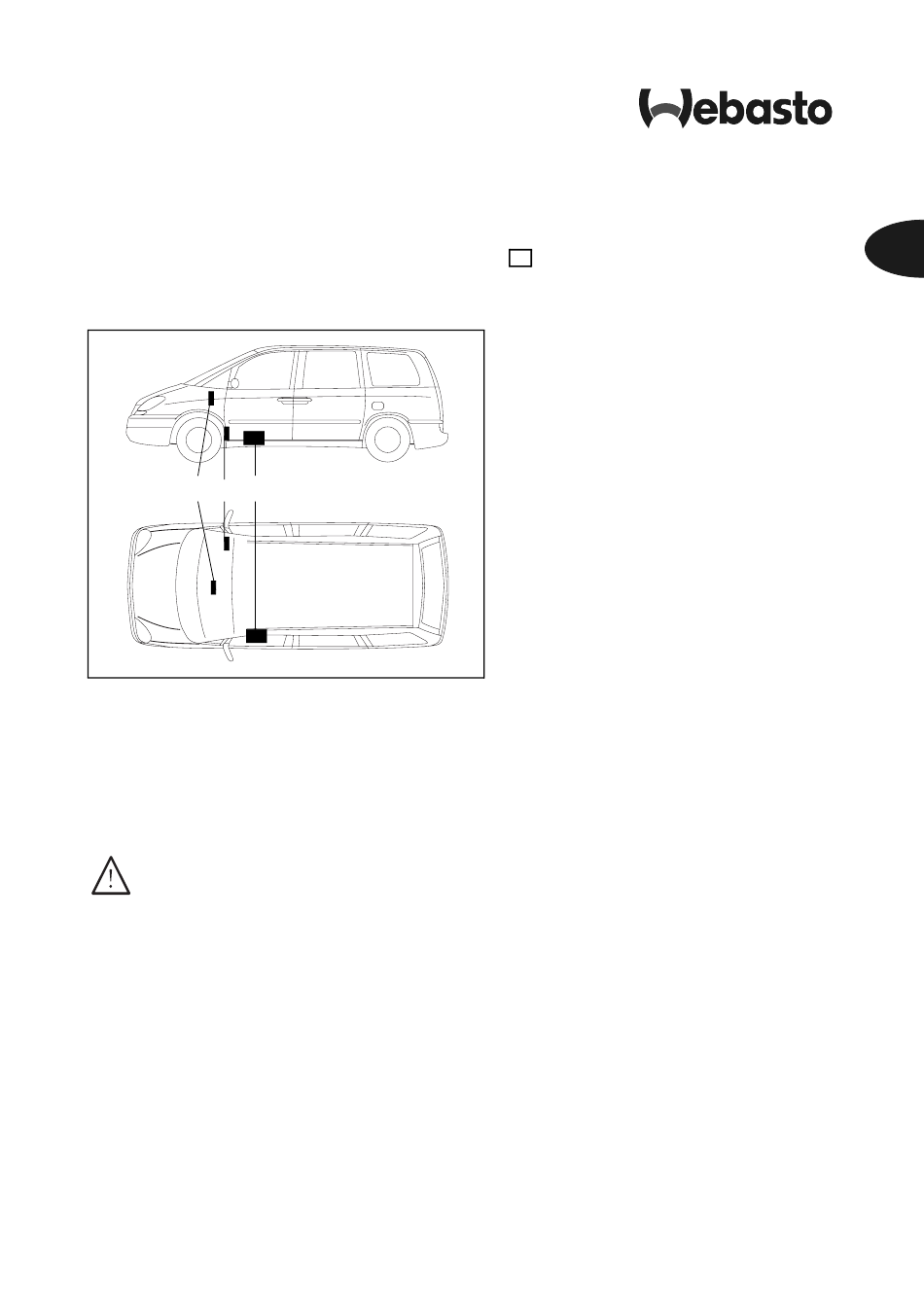

Legend for figure 1:

1 Heater Thermo Top Z -D

2 Blade-Type Fuse Holder and Blower Relay

3 Time switch

WARNING!

Hazard warning:

Incorrect installation or repair of Webasto heating and cooling systems may cause a fire or result

in the emission of carbon monoxide, which can be fatal. Serious or fatal injuries can be caused

as a result.

Specialist company training, technical documentation, specialized tools and equipment are

required to install and repair Webasto heating and cooling systems.

NEVER attempt to install or repair Webasto heating or cooling systems if you have not

successfully completed the company training and thereby acquired the required technical skills

or if you do not have access to the required technical documentation, tools and equipment

needed to carry out correct installation and repairs.

ALWAYS follow all Webasto installation and repair instructions and observe all warning

instructions.

Webasto does not accept any liability for defects and damage that are attributable to an

installation by untrained staff.

Ident. no. 1301853EEN

€10 fee

00 0002

Upgrade to

auxiliary heater C

Citroen C8

Fiat Ulysse

Lancia Phedra

Peugeot 807

Diesel

only for left-hand drive vehicles

all models

For validity, see page 2

07/2006

Feel the drive

Need help?

Do you have a question about the Thermo Top C and is the answer not in the manual?

Questions and answers

Summary of Contents for Webasto Thermo Top C

Page 1 3 Time switch WARNING! Hazard warning: Incorrect installation or repair of Webasto heating and cooling systems may cause a fire or result in the emission of carbon monoxide, which can be fatal. Serious or fatal injuries can be caused as a result.
Page 2 However, where this is the case the stipulations in the "installation instructions" and "operating and maintenance instructions" for the Thermo Top C should be observed. The corresponding recognized rules of technology and any information from the vehicle manufacturer should be observed during the installation work.
Page 3 Thermo Top C Note: - Secure hoses, wires, and cable harnesses with cable clips and cover with protective hoses at friction locations. - Insulate open cable connections Preliminary work - Disconnect the battery (see BRE 1000) - Remove the glove compartment:...
Page 4 Thermo Top C Relay retaining plate <<a>> - Fasten the relay retaining plate with the bolts for the servomotor << a >>. Identify the reserve lines APS C002A and C002D in the vehicle wire harness behind the BSI control unit.
Page 5 Thermo Top C Left side of the vehicle - Pull the two-pin NR plug from the main blower motor 8045. - Separate the RG 6 mm wire. - Connect the 6 mm RG wire ends to the adapter cable using the plug connector.
Page 6 Thermo Top C - Identify the wires APS C002A and C002D in the wire harness behind the BM34. Connecting the cable harness: - Wire C002A to wire VE. - Wire C002D to wire NR. - Run the cable harness to the motor controller ECM 1320.
Page 7 Thermo Top C Circuit diagram Citroën / Lancia / Webasto Fiat / Peugeot 1,0mm² 2,5mm² 8045 4,0mm² 2,5mm² 4,0mm² 6,0mm² 6,0mm² 1320 1,5mm² 32V BA 0,5mm² 0,5mm² 0,5mm² 0,5mm² 0,5mm² 0,5mm² IPCU 8099 Thermo Top 1,0mm² 0,75mm² 1,0mm² 8053 / 8054 0,5mm²...
Page 8 Thermo Top C Final work - Reassemble disassembled components in reverse order. - Check that electrical connections are securely fastened. - Secure all loose lines using cable clips. - Disconnect the vehicle battery (see BRE 1000) - Perform functional check.
