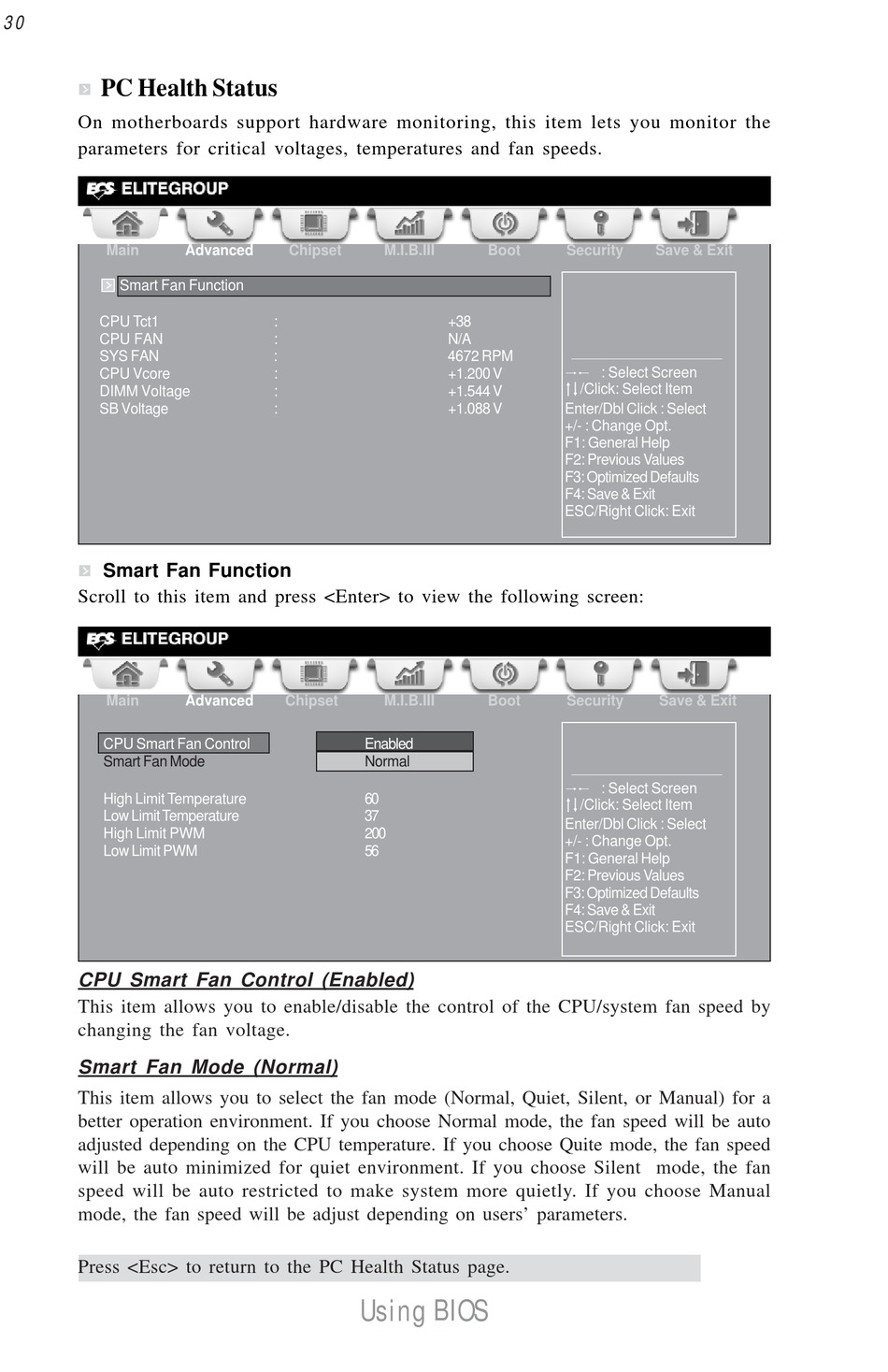

PC Health Status

On motherboards support hardware monitoring, this item lets you monitor the
parameters for critical voltages, temperatures and fan speeds.
Main

Smart Fan Function

CPU Tct1
CPU FAN
SYS FAN
CPU Vcore
DIMM Voltage
SB Voltage
 Smart Fan Function
Scroll to this item and press <Enter> to view the following screen:
Main
CPU Smart Fan Control
Smart Fan Mode
High Limit Temperature
Low Limit Temperature
High Limit PWM
Low Limit PWM
CPU Smart Fan Control (Enabled)
This item allows you to enable/disable the control of the CPU/system fan speed by
changing the fan voltage.
Smart Fan Mode (Normal)
This item allows you to select the fan mode (Normal, Quiet, Silent, or Manual) for a
better operation environment. If you choose Normal mode, the fan speed will be auto
adjusted depending on the CPU temperature. If you choose Quite mode, the fan speed
will be auto minimized for quiet environment. If you choose Silent mode, the fan
speed will be auto restricted to make system more quietly. If you choose Manual
mode, the fan speed will be adjust depending on users' parameters.
Press <Esc> to return to the PC Health Status page.
