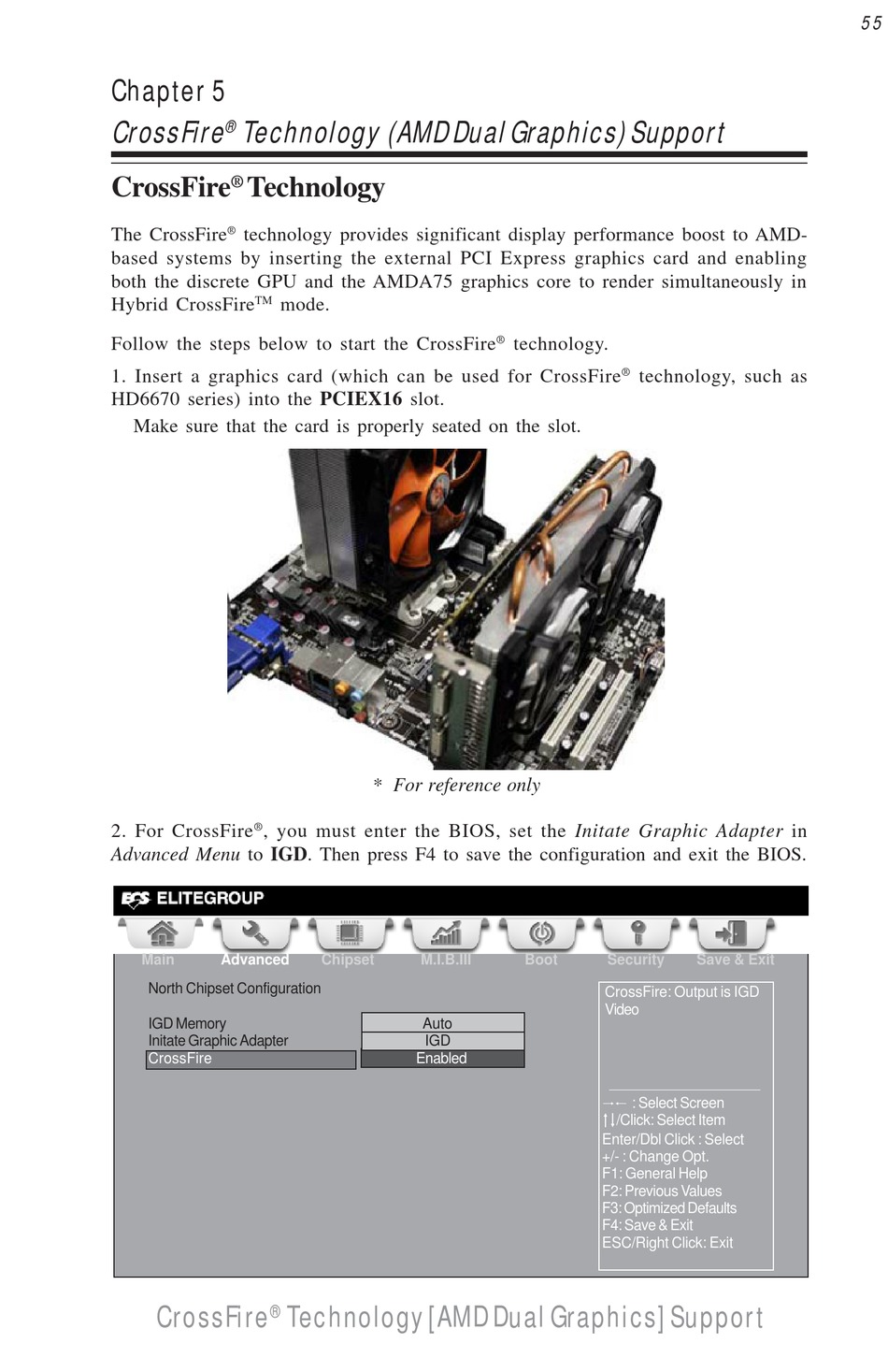

Chapter 5
CrossFire Technology (AMD Dual Graphics) Support
®
®
CrossFire Technology
®
The CrossFire technology provides significant display performance boost to AMD-
based systems by inserting the external PCI Express graphics card and enabling
both the discrete GPU and the AMDA75 graphics core to render simultaneously in
TM
Hybrid CrossFire
Follow the steps below to start the CrossFire
1. Insert a graphics card (which can be used for CrossFire
HD6670 series) into the PCIEX16 slot.
Make sure that the card is properly seated on the slot.
®
2. For CrossFire , you must enter the BIOS, set the Initate Graphic Adapter in
Advanced Menu to IGD. Then press F4 to save the configuration and exit the BIOS.
Main Advanced
North Chipset Configuration
IGD Memory
Initate Graphic Adapter
CrossFire
CrossFire
®
mode.
* For reference only
Chipset M.I.B.III
Auto
IGD
Enabled
Technology [AMD Dual Graphics] Support
®
technology.
®
technology, such as
Boot Security
CrossFire: Output is IGD
Video

: Select Screen

/Click: Select Item
Enter/Dbl Click : Select
+/- : Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
55
Save & Exit
