Lan Configuration - ECS A55F-M2 V.2.0 User Manual

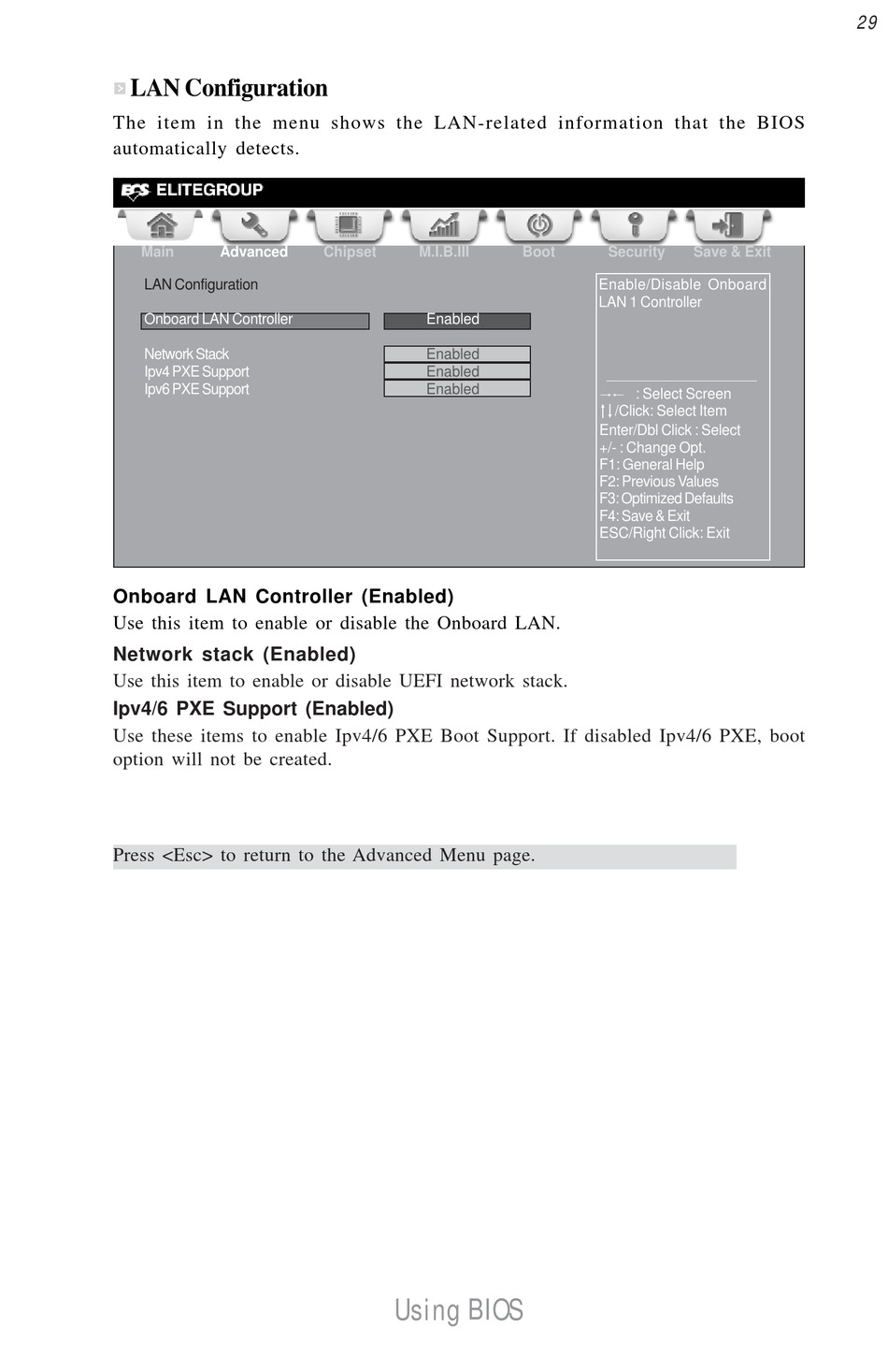

LAN Configuration

The item in the menu shows the LAN-related information that the BIOS
automatically detects.
Main Advanced
LAN Configuration
Onboard LAN Controller
Network Stack
Ipv4 PXE Support
Ipv6 PXE Support
Onboard LAN Controller (Enabled)
Use this item to enable or disable the Onboard LAN.
Network stack (Enabled)
Use this item to enable or disable UEFI network stack.
Ipv4/6 PXE Support (Enabled)
Use these items to enable Ipv4/6 PXE Boot Support. If disabled Ipv4/6 PXE, boot
option will not be created.
Press <Esc> to return to the Advanced Menu page.
Chipset M.I.B.III
Enabled
Enabled
Enabled
Enabled
Using BIOS
Boot Security
Enable/Disable Onboard
LAN 1 Controller

: Select Screen

/Click: Select Item
Enter/Dbl Click : Select
+/- : Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
29
Save & Exit
