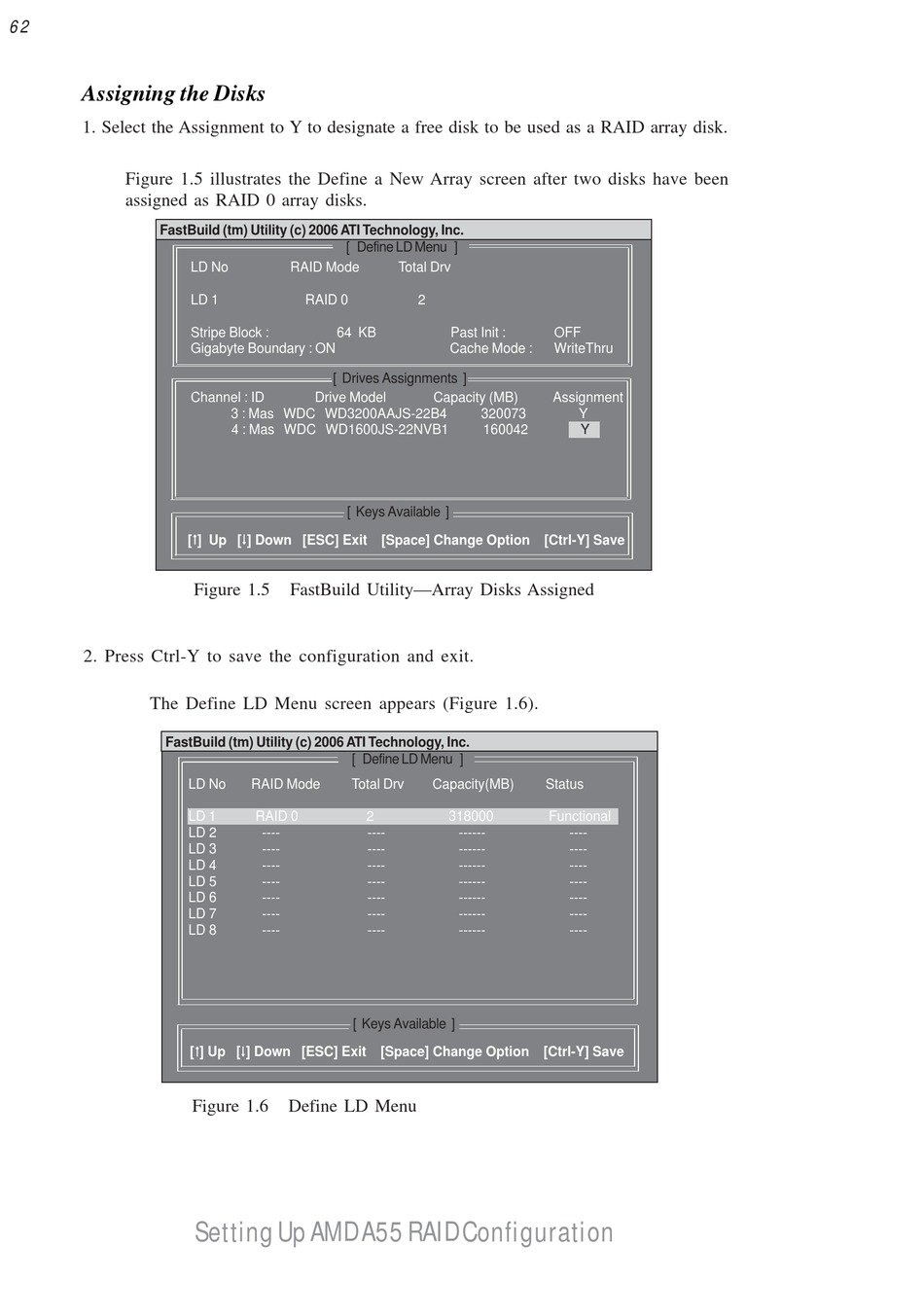

Assigning the Disks
1. Select the Assignment to Y to designate a free disk to be used as a RAID array disk.
Figure 1.5 illustrates the Define a New Array screen after two disks have been
assigned as RAID 0 array disks.
FastBuild (tm) Utility (c) 2006 ATI Technology, Inc.
2. Press Ctrl-Y to save the configuration and exit.
The Define LD Menu screen appears (Figure 1.6).
FastBuild (tm) Utility (c) 2006 ATI Technology, Inc.
[ Define LD Menu ]
LD No RAID Mode
LD 1 RAID 0
Stripe Block : 64 KB
Gigabyte Boundary : ON
[ Drives Assignments ]
Channel : ID Drive Model
3 : Mas WDC WD3200AAJS-22B4
4 : Mas WDC WD1600JS-22NVB1
[     ] Up [     ] Down [ESC] Exit [Space] Change Option [Ctrl-Y] Save
Figure 1.5 FastBuild Utility—Array Disks Assigned
LD No RAID Mode
LD 1 RAID 0
LD 2 ----
LD 3 ----
LD 4 ----
LD 5 ----
LD 6 ----
LD 7 ----
LD 8 ----
[     ] Up [     ] Down [ESC] Exit [Space] Change Option [Ctrl-Y] Save
Figure 1.6 Define LD Menu
Setting Up AMD A55 RAID Configuration
Total Drv
2
Past Init :
Cache Mode :
Capacity (MB)
320073
160042
[ Keys Available ]
[ Define LD Menu ]
Total Drv Capacity(MB)
2 318000
---- ------
---- ------
---- ------
---- ------
---- ------
---- ------
---- ------
[ Keys Available ]
OFF
WriteThru
Assignment
Y
Y
Status
Functional
----
----
----
----
----
----
----
