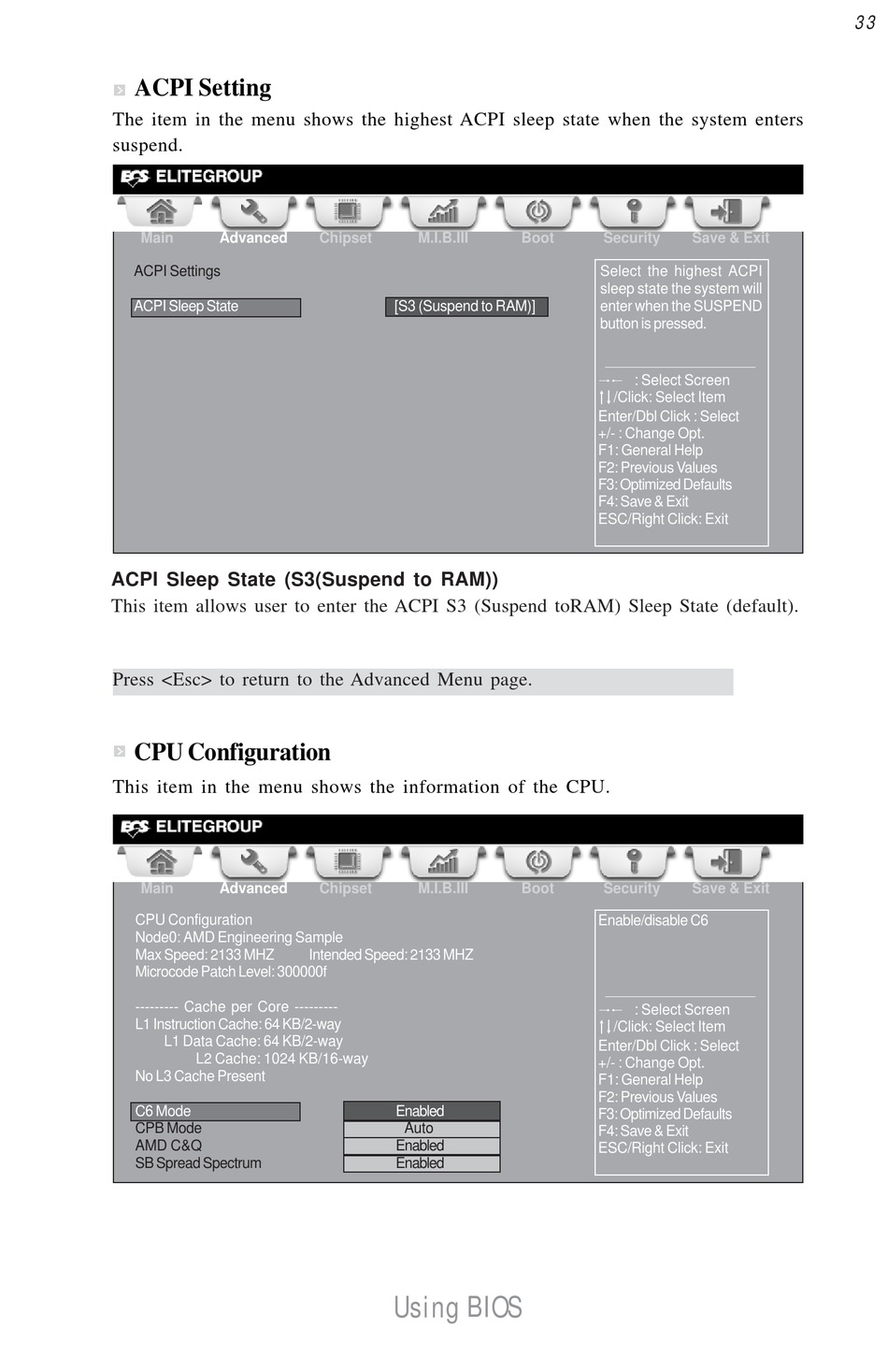

ACPI Setting

The item in the menu shows the highest ACPI sleep state when the system enters
suspend.
Main Advanced
ACPI Settings
ACPI Sleep State
ACPI Sleep State (S3(Suspend to RAM))
This item allows user to enter the ACPI S3 (Suspend toRAM) Sleep State (default).
Press <Esc> to return to the Advanced Menu page.

CPU Configuration

This item in the menu shows the information of the CPU.
Main Advanced
CPU Configuration
Node0: AMD Engineering Sample
Max Speed: 2133 MHZ
Microcode Patch Level: 300000f
--------- Cache per Core ---------
L1 Instruction Cache: 64 KB/2-way
L1 Data Cache: 64 KB/2-way
L2 Cache: 1024 KB/16-way
No L3 Cache Present
C6 Mode
CPB Mode
AMD C&Q
SB Spread Spectrum
Chipset M.I.B.III
[S3 (Suspend to RAM)]
Chipset M.I.B.III
Intended Speed: 2133 MHZ
Enabled
Auto
Enabled
Enabled
Using BIOS
Boot Security
Select the highest ACPI
sleep state the system will
enter when the SUSPEND
button is pressed.

: Select Screen

/Click: Select Item
Enter/Dbl Click : Select
+/- : Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Boot Security
Enable/disable C6

: Select Screen

/Click: Select Item
Enter/Dbl Click : Select
+/- : Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
