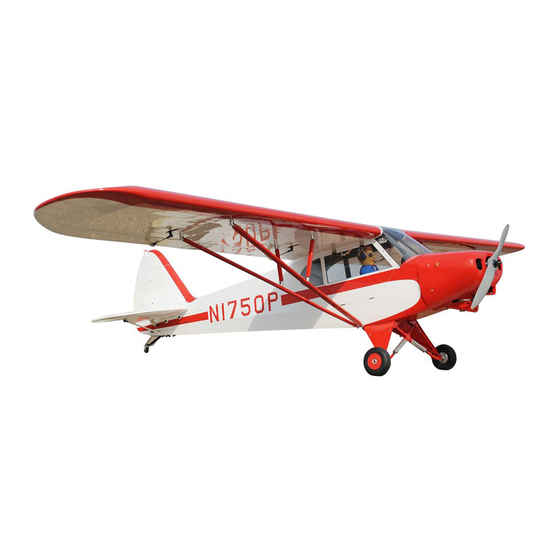

Scale 1:4 size 30cc arf
Hide thumbs Also See for SUPER CUB PA-18:

Advertisement

Quick Links

SPECIFICATION
- Wingspan: 2720mm (107 in)
- Length: 1742mm (68.6 in)
- Flying weight: 9 – 9.5 kg
- Wing area: 110 dm2
- Wing loading: 81g/dm2
- Wing type: Naca airfoils
- Covering type: Genuine ORACOVER®
- Radio: 6 channel minimum (not included)
- Servo: 8 standard hi-torque servo: 2 aileron;
2 flap; 2 elevator; 1 rudder; 1 throttle
(not included)
- Recommended receiver battery:
6.0V 2400-2600 mAh NiMH (not included)
- Servo mount: 21mm x 42 mm
- Propeller: suit with your engine
- Engine: 30 CC gas engine (two stroke)
(not included)
Instruction Manual
- Motor: brushless outrunner 2500 W,
250 KV (not included)
- Gravity CG: 109 mm (4,3 in) Back from the
leading edge of the wing, at the fuselage
- Control throw Ailerons: Low: 10mm up/down,
10% expo; High: 12mm up/down, 10% expo
- Control throw Elevators: Low: 10mm up/down,
12% expo; High: 12mm up/down, 12% expo
- Control throw Rudder: Low: 30mm right/left,
15% expo; High: 40mm right/left, 15% expo
- Control throw Flaps: Mid: 15mm down;
Landing: 20mm down
- Experience level: Intermediate
- Plane type: Scale Civilian
RECOMMENDED MOTOR AND BATTERY SET UP
- Motor: Rimfire 1.60 (not included)
- Propeller: 18x8 E APC (not included)
- Lipo cell: 12 cells / 5000 – 6000mAh (not included)
- Esc: 120-160A / HV (not included)
GP
EP
version
version

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUPER CUB PA-18 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Phoenix Model SUPER CUB PA-18

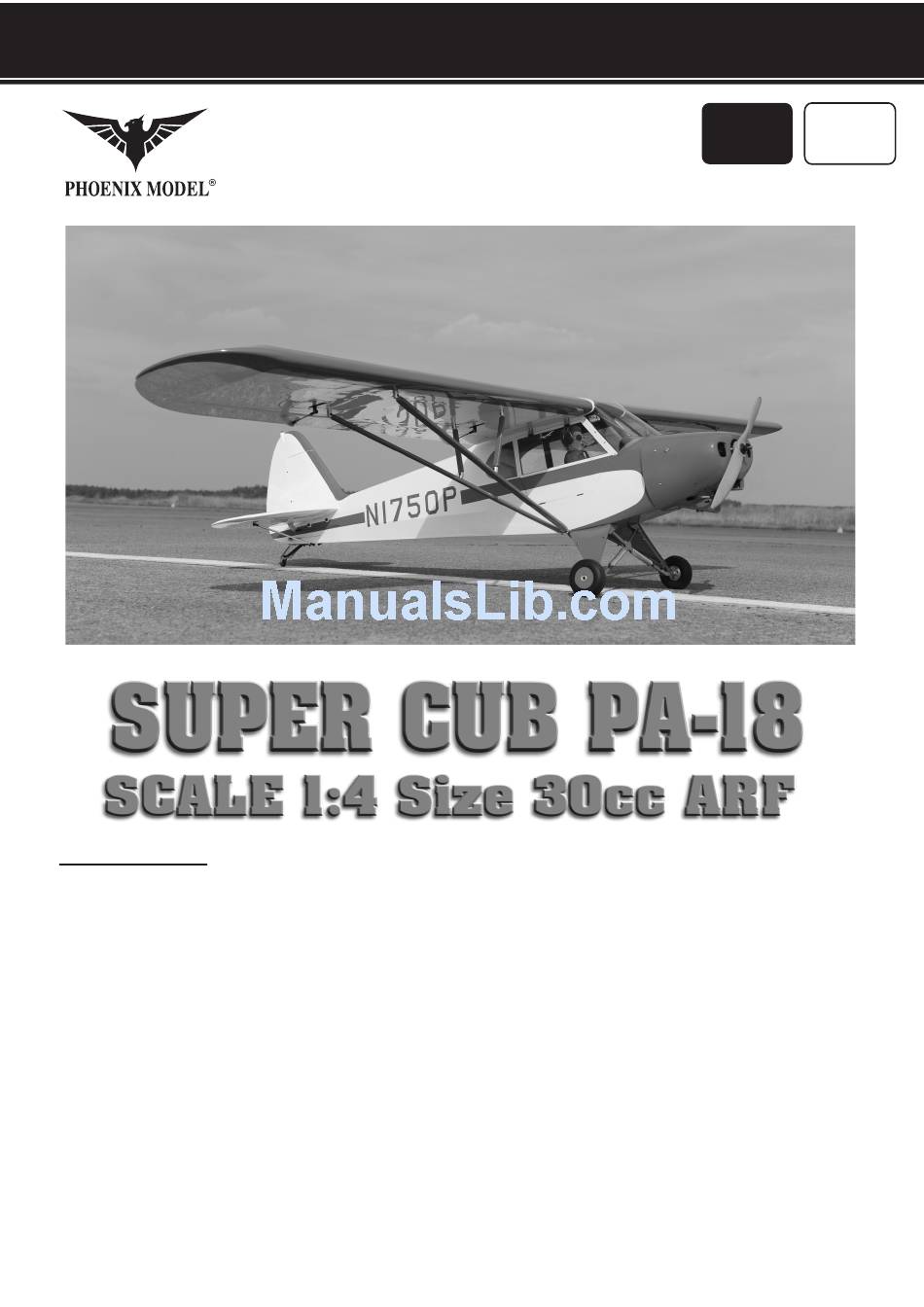

  • Page 1 Instruction Manual version version SPECIFICATION - Motor: brushless outrunner 2500 W, 250 KV (not included) - Wingspan: 2720mm (107 in) - Gravity CG: 109 mm (4,3 in) Back from the - Length: 1742mm (68.6 in) leading edge of the wing, at the fuselage - Flying weight: 9 –...
  • Page 2: Tools And Supplies Needed

    Please trial fit all the parts. Make sure you have the correct parts and that they fit and are aligned properly before gluing! This will assure proper assembly. The SUPER CUB PA-18 SCALE 1:4 Size 30cc ARF is TEMPORARY PIN hand made from natural materials, every plane is TO KEEP HINGE unique and minor adjustments may have to be made.
  • Page 3 SUPER CUB Instruction Manual Make certain the hinges are adequately secured with glue. If they come loose in flight accidents may result. Secure nylon hinges with instant glue, being careful not to glue the wing and airleron together. Apply instant glue (CA glue, super glue). Align the center line of main wing with aileron.
  • Page 4: Installing The Ailerons And Flaps Linkages

    SUPER CUB Instruction Manual 2x10mm 2 x 10mm TP Screw Assemble left and right sides the same way < Right Wing > < Left Wing > Aileron Servo Flap Servo Flap Servo Aileron Servo Warning! Pull out servo cord with string. Tie the string.
  • Page 5 SUPER CUB Instruction Manual Aileron Flap Cut off shaded portion Assemble left and right sides the same way < Bottom view > Neutral 3x12mm Aileron Flap Mark the spot to attach. < Bottom view > Apply threadlocker (screw cement).
  • Page 6: Installing The Main Landing Gear

    SUPER CUB Instruction Manual SECURE The Wing To The Fuselage 6x45mm Plastic Screw Attach the wings to the fuselage and secure the wing panels using the plastic screw. 6x45mm Open and close Cut off shaded portion Assemble left and right sides the same way INSTALLING THE MAIN LANDING GEAR 4x20mm...
  • Page 7 SUPER CUB Instruction Manual INSTALLING THE WING STRUT 4 x 10mm Cap Screw 4x10mm 4x10mm 4mm Spring Washer 3 x 12mm TP Screw 3 x 10mm Button Screw Nylon Nut 3x10mm Plate of plywood 3x12mm 3x12mm 3x10mm Cut off shaded portion...
  • Page 8: Horizontal Stabilizer Installation

    SUPER CUB Instruction Manual 4. When you are sure that everything is aligned HORIZONTAL STABILIZER INSTALLATION correctly, mix up a generous amount of 30 minute epoxy. Apply a thin layer to the bottom 1. Using a modeling knife, cut away the covering from and to the top of the stabilizer mounting area the fuselage for the stabilizer and remove it.
  • Page 9: Vertical Stabilizer Installation

    SUPER CUB Instruction Manual VERTICAL STABILIZER INSTALLATION Installing the rudder using C.A glue as installing the aileron. Secure nylon hinges with instant glue, being careful vertical fin and rudder. Align the center line of vertical fin with rudder. 90 Degree Apply instant glue (CA glue, super glue).
  • Page 10 SUPER CUB Instruction Manual 3x12mm 3x12mm Cable Apply threadlocker (screw cement). 3x35mm Pay close attention here Must be purchased separately! Cut off shaded portion Rudder servo Cable rod Cable rod...
  • Page 11: Installing The Elevator Pushrod

    SUPER CUB Instruction Manual INSTALLING THE ELEVATOR PUSHROD 7. Attach nylon clevis to the control horn and secure it . 1. Locate the pushrod exit slot on the right side 8. Locate one nylon servo arm, and using wire and left side of the fuselage. It is located cutters, remove all but one of the arms.
  • Page 12: Installing The Tail Wheel

    SUPER CUB Instruction Manual approx. 13mm Elevator Servo Pay close attention here Cut off shaded portion Must be purchased separately! INSTALLING THE Tail wheel 3x15mm 3 x 12mm TP Screw 3x12mm 3 x 15mm Cap Screw 3mm Spring Washer Spring Spring Cut off shaded portion...
  • Page 13: Installing The Fuel Tank

    SUPER CUB Instruction Manual INSTALLING THE HORIZONTAL STAB STRUT 3 x 15mm TP Screw 4 x 15mm Cap Screw 4x15mm 3x15mm INSTALLING THE Fuel Tank 6. When satisfied with the alignment of the stopper assembly tighten the 3mm x 20mm machine 1.
  • Page 14: Installing The Engine

    SUPER CUB Instruction Manual Silicone Tube Fuel Tank Plate of Wood Refer to engin’s instruction manual and set up piping. Apply instant glue (CA glue, super glue). INSTALLING THE ENGINE 5x100mm Cap Screw 12x60mm Aluminum 5mm Spring Washer 16x5mm Washer 5x100mm 12x60mm Apply threadlocker...
  • Page 15: Installing The Throttle

    SUPER CUB Instruction Manual DLE 30 CC Throttle Lever Choke Lever Cable rod Cable rod Must be purchased separately! INSTALLING THE THROTTLE 1. Plug the throttle servo into the receiver and turn on the radio system. Check to ensure that the throttle servo output shaft is moving in the correct direction.
  • Page 16 SUPER CUB Instruction Manual Cable rod Throttle Servo Cable rod INSTALLING THE pilot Door 2 x 12mm TP Screw 3 x 10mm TP Screw Door Velcro Plate of plywood Open and close Apply instant glue (CA glue, super glue). 3x10mm 2x12mm...
  • Page 17: Mounting The Cowl

    SUPER CUB Instruction Manual MOUNTING THE COWL 4. While holding the cowl firmly in position, drill four 1,6mm pilot holes through both the cowl 1. Remove the muffler and needle valve assembly and the side edges of the firewall. from the engine. Slide the fiberglass cowl over the engine.
  • Page 18: Installing The Electric Motor ( Ep Version )

    SUPER CUB Instruction Manual Receiver Tape Foam Pad Tape Foam Pad Battery Must be purchased separately! Switch INSTALLING THE ELECTRIC MOTOR ( EP VERSION ) 5 x 100mm Cap Screw 4 x 35mm Cap Screw 4x35mm 4x35mm 4mm Washer 4mm Spring Washer 5mm Washer 5mm Spring Washer 5x100mm...
  • Page 19 SUPER CUB Instruction Manual 4 x 20mm Cap Screw 4mm Washer 4mm Spring Washer White glue 4x20mm Electric Speed Controller When rotating clock wise, charge the connection of 2 wires. Velcro Battery Cord Battery < Check the motor rotation > Battery Must be purchased separately!
  • Page 20: Lateral Balance

    SUPER CUB Instruction Manual BALANCING 3. Turn the airplane upside down. Place your fingers 1. It is critical that your airplane be balanced correctly. on the masking tape and carefully lift the plane. Improper balance will cause your plane to lose 4.
  • Page 21: Flight Preparation Pre Flight Check

    SUPER CUB Instruction Manual FLIGHT PREPARATION PRE FLIGHT CHECK 10mm 10mm 1. Completely charge your transmitter and receiver batteries before your first day of flying. Aileron Control 2. Check every bolt and every glue joint in your plane to ensure that everything is tight and well bonded.
  • Page 22 SUPER CUB Instruction Manual FOR YOUR RADIO INSTALLATION BASIC CONNECTION FOR AIRPLANE AND ADJUSTMENT OF SERVOS Example of connection For more information, refer to radio system instruction manual. Follow instruction manual of Engine and Battery. Switch Flap Flap Servo Battery (Receiver) Flap Flap Servo Receiver...
  • Page 23: Exploded View

    EXPLODED VIEW 3x20mm 3x30mm 3x20mm 3x15mm 4x15mm 3x30mm 3x10mm(TP) 3x35mm 2x10mm(TP) 2x10mm(TP) 3x12mm Cable rod 3x15mm 3x30mm 3x30mm 4x10mm 2x10mm(TP) 4x20mm 2x10mm(TP) 3x10mm(TP) 3x10mm(TP) 5x100mm...
  • Page 24 I/C FLIGHT GUIDELINES Operate the control sticks on the When ready to fly, first extend the transmitter and check that the control transmitter aerial. surfaces move freely and in the ALWAYS land the model INTO the CORRECT directions. wind, this ensures that the model lands at the slowest possible speed.
