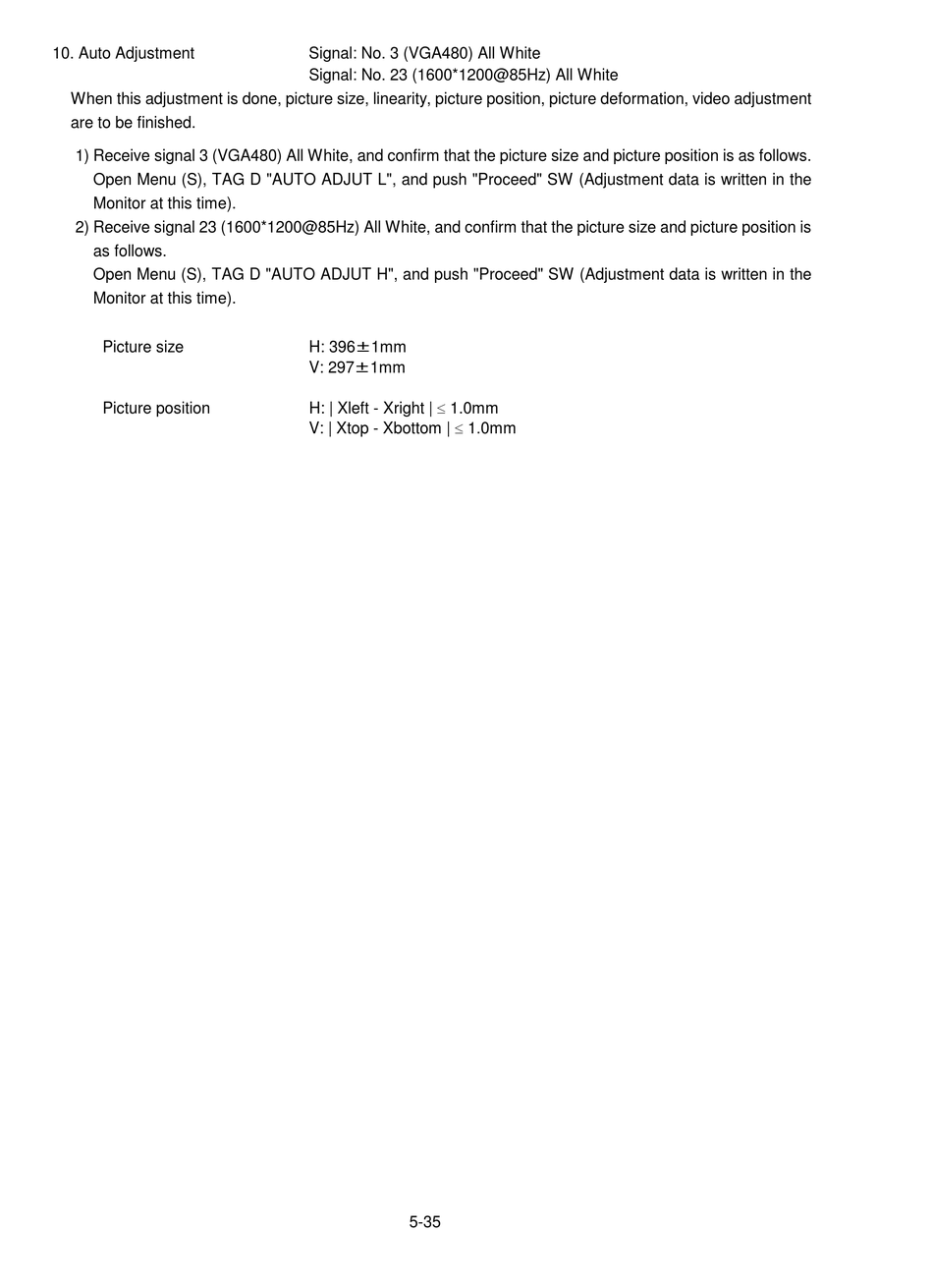

10. Auto Adjustment
When this adjustment is done, picture size, linearity, picture position, picture deformation, video adjustment
are to be finished.
1) Receive signal 3 (VGA480) All White, and confirm that the picture size and picture position is as follows.
Open Menu (S), TAG D "AUTO ADJUT L", and push "Proceed" SW (Adjustment data is written in the
Monitor at this time).
2) Receive signal 23 (1600*1200@85Hz) All White, and confirm that the picture size and picture position is
as follows.
Open Menu (S), TAG D "AUTO ADJUT H", and push "Proceed" SW (Adjustment data is written in the
Monitor at this time).
Picture size
Picture position
Signal: No. 3 (VGA480) All White
Signal: No. 23 (1600*1200@85Hz) All White
H: 396±1mm
V: 297±1mm
H: | Xleft - Xright | " 1.0mm
V: | Xtop - Xbottom | " 1.0mm
5-35
