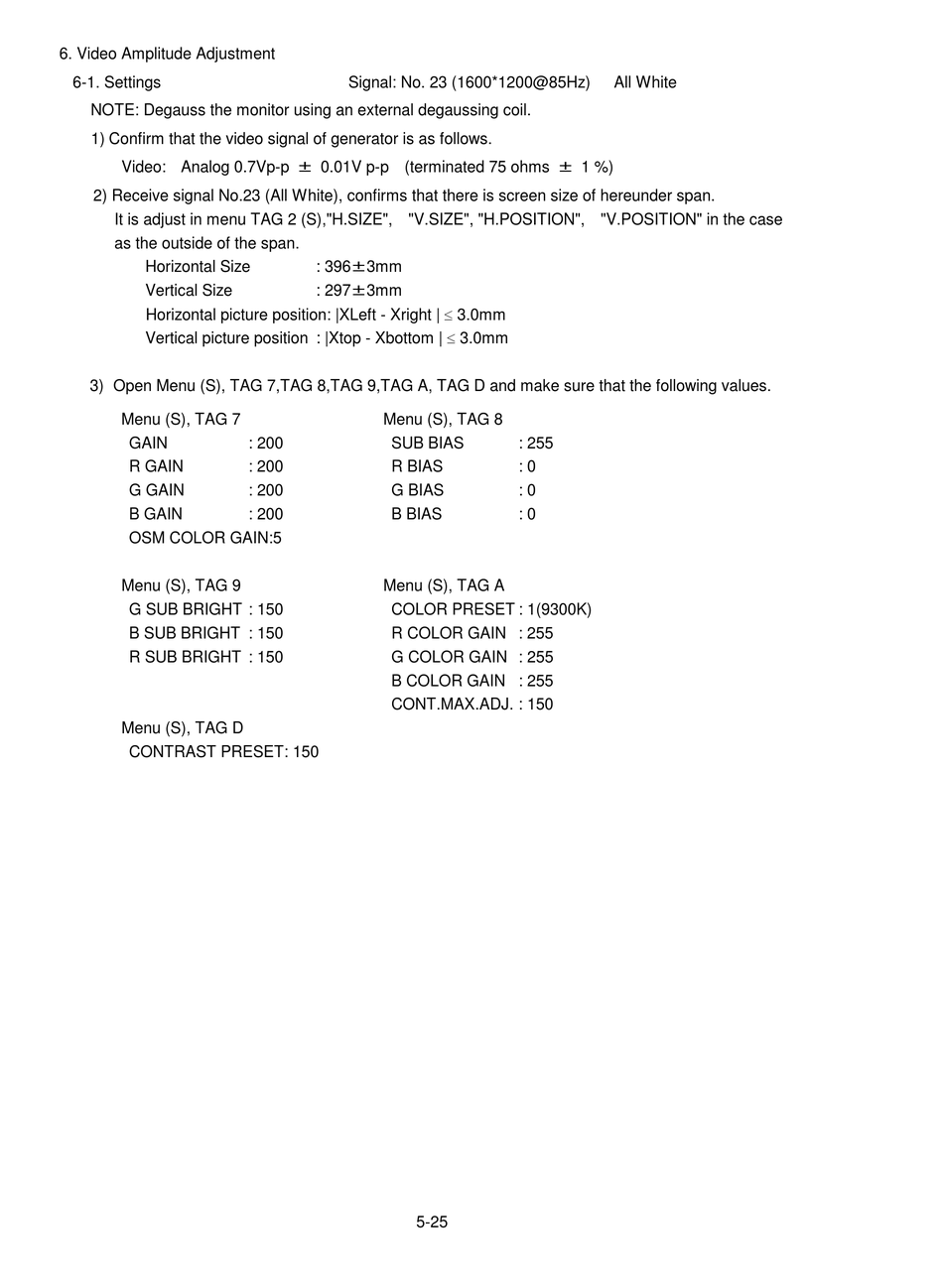

6. Video Amplitude Adjustment
6-1. Settings
NOTE: Degauss the monitor using an external degaussing coil.
1) Confirm that the video signal of generator is as follows.
Video: Analog 0.7Vp-p ± 0.01V p-p (terminated 75 ohms ± 1 %)
2) Receive signal No.23 (All White), confirms that there is screen size of hereunder span.
It is adjust in menu TAG 2 (S),"H.SIZE", "V.SIZE", "H.POSITION", "V.POSITION" in the case
as the outside of the span.
Horizontal Size
Vertical Size
Horizontal picture position: |XLeft - Xright | " 3.0mm
Vertical picture position : |Xtop - Xbottom | " 3.0mm
3) Open Menu (S), TAG 7,TAG 8,TAG 9,TAG A, TAG D and make sure that the following values.
Menu (S), TAG 7
GAIN
R GAIN
G GAIN
B GAIN
OSM COLOR GAIN:5
Menu (S), TAG 9
G SUB BRIGHT : 150
B SUB BRIGHT : 150
R SUB BRIGHT : 150
Menu (S), TAG D
CONTRAST PRESET: 150
Signal: No. 23 (1600*1200@85Hz)
: 396±3mm
: 297±3mm
Menu (S), TAG 8
: 200 SUB BIAS
: 200 R BIAS
: 200 G BIAS
: 200 B BIAS
Menu (S), TAG A
COLOR PRESET : 1(9300K)
R COLOR GAIN : 255
G COLOR GAIN : 255
B COLOR GAIN : 255
CONT.MAX.ADJ. : 150
: 255
: 0
: 0
: 0
5-25
All White
