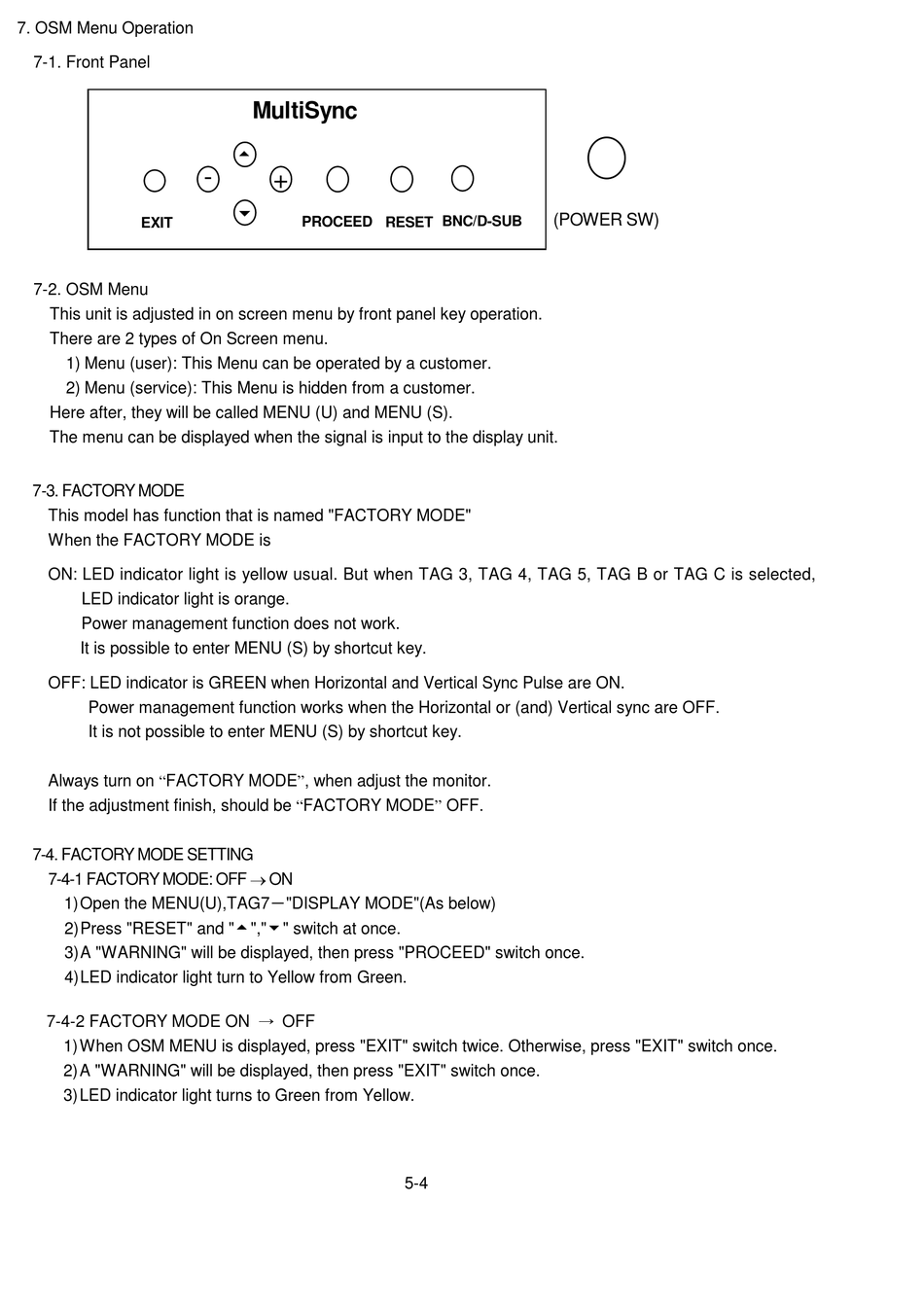

7. OSM Menu Operation
7-1. Front Panel
EXIT
7-2. OSM Menu
This unit is adjusted in on screen menu by front panel key operation.
There are 2 types of On Screen menu.
1) Menu (user): This Menu can be operated by a customer.
2) Menu (service): This Menu is hidden from a customer.
Here after, they will be called MENU (U) and MENU (S).
The menu can be displayed when the signal is input to the display unit.
7-3. FACTORY MODE
This model has function that is named "FACTORY MODE"
When the FACTORY MODE is
ON: LED indicator light is yellow usual. But when TAG 3, TAG 4, TAG 5, TAG B or TAG C is selected,
LED indicator light is orange.
Power management function does not work.
It is possible to enter MENU (S) by shortcut key.
OFF: LED indicator is GREEN when Horizontal and Vertical Sync Pulse are ON.
Power management function works when the Horizontal or (and) Vertical sync are OFF.
It is not possible to enter MENU (S) by shortcut key.
Always turn on "FACTORY MODE", when adjust the monitor.
If the adjustment finish, should be "FACTORY MODE" OFF.
7-4. FACTORY MODE SETTING
7-4-1 FACTORY MODE: OFF ! ON
1)Open the MENU(U),TAG7－"DISPLAY MODE"(As below)
2)Press "RESET" and " ! "," " " switch at once.
3)A "WARNING" will be displayed, then press "PROCEED" switch once.
4)LED indicator light turn to Yellow from Green.
7-4-2 FACTORY MODE ON → OFF
1) When OSM MENU is displayed, press "EXIT" switch twice. Otherwise, press "EXIT" switch once.
2) A "WARNING" will be displayed, then press "EXIT" switch once.
3) LED indicator light turns to Green from Yellow.
MultiSync
!
-
+
"
PROCEED RESET
(POWER SW)
BNC/D-SUB
5-4
