NEC MultiSync FP1370 Service Manual page 17

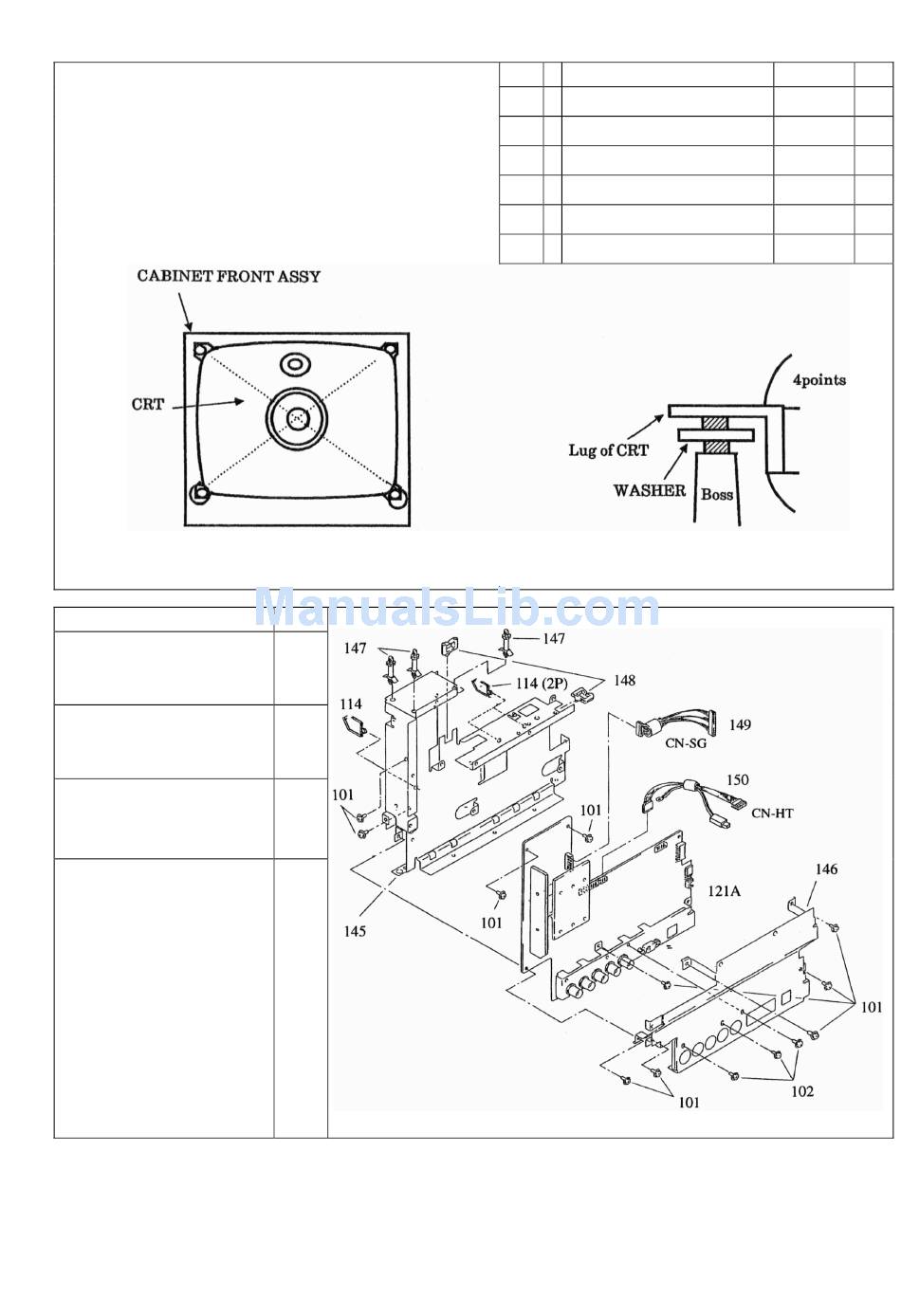

Screw CRT on CABINET, FRONT (4 point).
The use of WASHER at setting CRT
1. Necessary to make sure the screw condition of each Lot.
Make sure the CABINET FRONT, it should not be whitish by stress
of securing screws. And make sure the gap between CABINET
FRONT and CRT. It must keep in tolerance.
2. In case of gap or changing color caused by stress, arrange the
thickness of washers.
REMARK
Screw VIDEO PWB ASSY to
the PLATE SHEILDING
(BOTTOM).
Screw PLATE SHEILDING
(VIDEO) to the VIDEO PWB
ASSY.
Insert BUSH,INSULATOR,
CLAMPER, WIRE and EDGE,
SADDLE to the PLATE,
SHEILDING(BOTTOM).
Insert CN-SG and CN-HT to
the VIDEO PWB ASSY
SYMBOL
121A
101
145
101
102
146
114
147
148
149
150
4-8
DESCRIPTION
No.
142 WASHER (D20,D6.5,T2)
142 WASHER (D20,D6.5,T1)
142 WASHER (D20,D6.5,T1.2)
142 WASHER (D20,D6.5,T1.6)
142 WASHER (T0.5,P20)
142 WASHER, SPECIAL
PART No. Q'ty
04
or
or
or
or
or
