NEC MultiSync FP1370 Service Manual page 63

* Adjustment limits (Adjusted point data)
Between the COLUMN and next COLUMN
Difference 4H: 45 or less, 4V: 40 or less
Between the ROW and next ROW
Difference 4H: 45 or less, 4V: 40 or less
* Adjustment limits (Dynamic correction data)
H.S CONVER : 65-191 (the count of OSM number)
V.S CONVER : 82-174
H.CONVER SAW T : 95-159
H.CONVER SAW B : 95-159
V.CONVER SAW T : 95-159
V.CONVER SAW B : 95-159
* The noise will be appeared on the picture while adjusting, but it is no problem.
The jitter or the noise will be appeared by big difference between current adjusted data and previous
adjusted data.
X
Yv
297±1.0mm

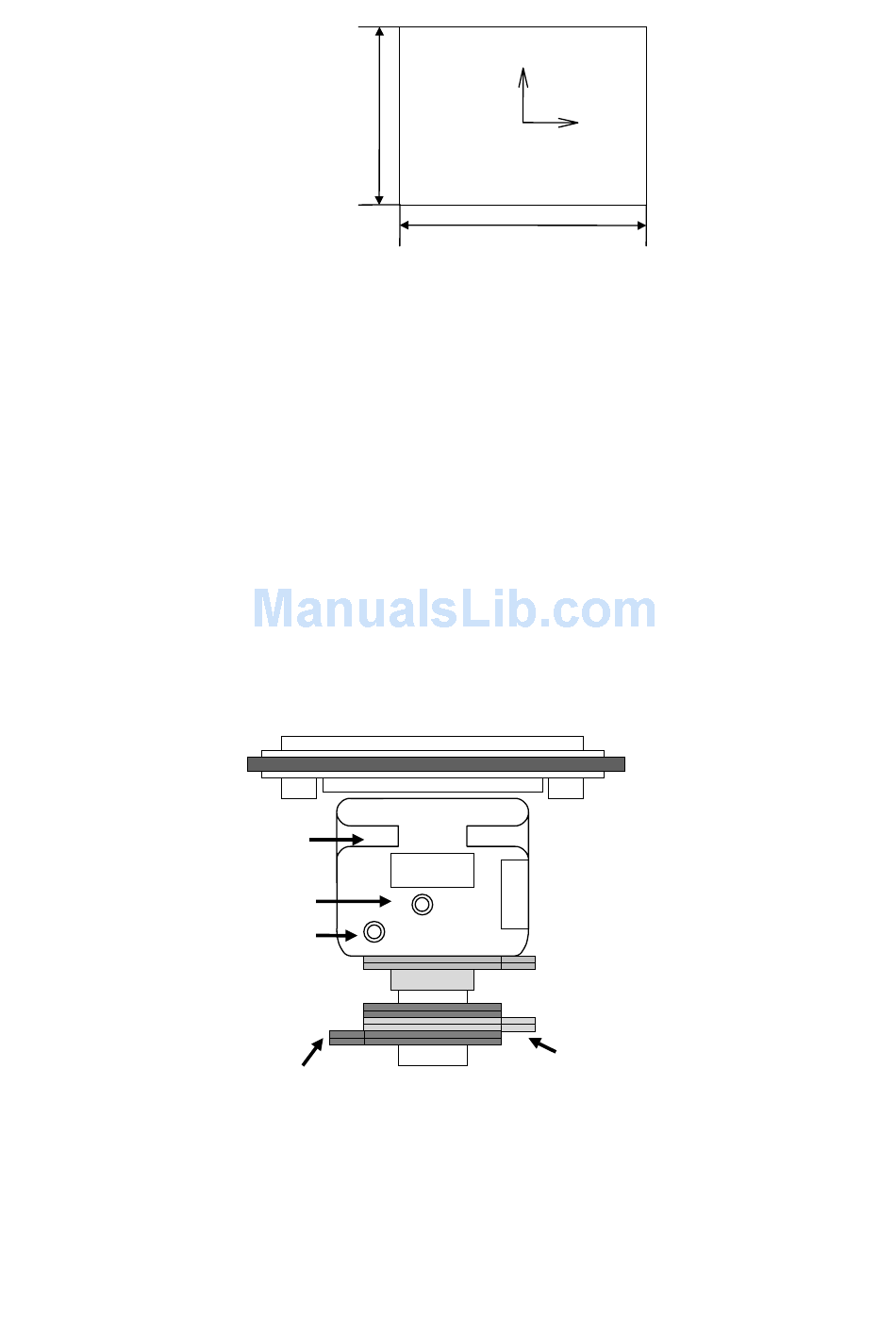

Fig 9-3 Convergence Specification
-COIL
V
Y
h
6-pole magnets
Fig 9-4 The location of the VR. and Coil and magnets
Y
X
396±1.0mm
4-pole magnets
5-34
