- Page 1 Vinci 1.0 Pro 3in1 User Manual Product Safety Product Description Printer screen menu, functions and messages Functional operations and descriptions Print Scan Optional module Support Details Product Model: da Vinci 1.0 Professional 3in1...
-
Page 2: Product Safety
Vinci 1.0 Pro 3in1 The purpose of this user manual is to help users understand and use the da Vinci 1.0 Professional 3in1 3D printer correctly. It contains the operating instructions, maintenance information and application skills of the da Vinci 1.0 Professional 3in1 3D printer. -
Page 3: Product Description

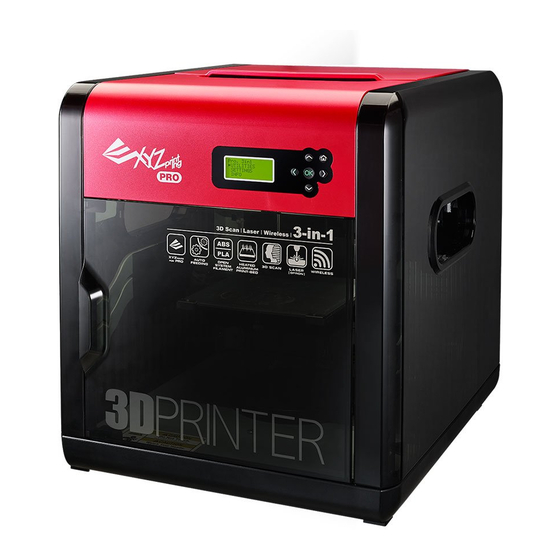

Vinci 1.0 Pro 3in1 Product Description Product Overview Cartridge Slot Auto Feed System Function Key DA VINCI 1.0 Pro. 1 UTILITIES SETTINGS INFO Control Panel Extruder Module Print Bed USB Port Scanning Turntable Power Switch Scanner Modules Power Socket Levelness of the Print Bed may be susceptible to vibration during transportation, which may influence print quality. -
Page 4: Important Safety Notes
Vinci 1.0 Pro 3in1 Product Description Note: Please removal all fixed materials before turning on the printer to prevent the Open the box machine from damage Open the box and Remove all fixing tapes and Use the grip to take... -
Page 5: Display And Control Panel
Vinci 1.0 Pro 3in1 Notes and Description for Use of Maintenance Tools • The following tools can be used only in an environment with guidance or monitoring by adult. Do not allow children to obtain maintenance tools in unfamiliar situations in order to avoid danger. -
Page 6: Product Specification
Vinci 1.0 Pro 3in1 Product Specification Print Print Fused Filament Fabrication Weight 27.5 KG Technology (FFF) Print ABS / PLA Print Material Dimension 20 x 20 x 19 cm (L x W x H) Print Filament 0.1 / 0.2 / 0.3 / 0.4 mm 1.75 mm... - Page 7 Vinci 1.0 Pro 3in1 Printer screen menu, functions and messages UTILITIES Installation and removal of filament, calibration of the printing bed and printing settings, including: ◆ CHANGE CART ◆ HOME AXES ◆ Z OFFSET ◆ JOG MODE ◆ CALIBRATE ◆...
-
Page 8: Jog Mode
Vinci 1.0 Pro 3in1 JOG MODE Manually adjust the movement of X/Y/Z Axis for printer maintenance. How to move the extruder: JOG MODE UTILITIES X-AXIS [ OK ] >> EXIT X-AXIS Z OFFSET ■ [ － ] 001mm ] [ ＋... -
Page 9: Change Nozzle
Vinci 1.0 Pro 3in1 Select the built-in sample to be printed BUILD SAMPLE DEMO LION LIGHTHOUSE Select "YES" and press "OK" KEY CHAIN START BUILDING? After completion of print, take off the print product. The print bed patch is reusable. Replace the patch when it is worn out. -
Page 10: Printer Maintenance
Vinci 1.0 Pro 3in1 Printer screen menu, functions and messages UTILITIES BUILD SAMPLE Printer Maintenance CHANGE NOZZLE CLEAN NOZZLE ●UTILITIES > CLEAN NOZZLE Regular cleaning of the print nozzle facilitates to not only extending service life of the printer, but also improves print quality. - Page 11 Vinci 1.0 Pro 3in1 SETTINGS The basic settings of the machine, functions, selection and adjustment of printing values, including: ◆ USER FILAMENT ◆ BUZZER ◆ AUTO HEAT ◆ LANGUAGE ◆ ENERGY SAVE ◆ RESTORE DEFAULT Pro. 3in1 UTILITIES SETTINGS...
-
Page 12: Energy Save
Vinci 1.0 Pro 3in1 ENERGY SAVE LED luminaries are installed in the printing chamber. To save energy consumed, the lighting will go off after idling for 3 minutes (shown as 03M on the display) by default. SETTINGS ENERGY SAVE [ 03M ]... -
Page 13: Monitor Mode
Vinci 1.0 Pro 3in1 CARTRIDGE STATS Show the remaining amount of filament (such as “REMAINING” for length information), volume of spool, color of filament and material information. Press to skip the page and press “OK” to exit. INFO CARTRIDGE STATS... - Page 14 Vinci 1.0 Pro 3in1 Functional operations and descriptions Install and Load Filament UTILITIES > CHANGE CART > LOAD FILAMENT ● Install Filament Cartridge from XYZprinting ● Install Compatible filament * Print quality cannot be guaranteed if filaments from other brands are used instead.
-
Page 15: Unloading Filament
Vinci 1.0 Pro 3in1 Functional operations and descriptions Unloading Filament ● UTILITIES > CHANGE CART > UNLOAD FILAMENT In unloading filament, activating the filament unloading function on the control panel of the printer 1. Wait for the extruder to heat up to operating temperature and unload the filament. -
Page 16: Print Bed Adjustment
Vinci 1.0 Pro 3in1 Functional operations and descriptions Print Bed Adjustment Before first printing, please calibrate the bed to guarantee an appropriate levelness of the bed for printing. ● UTILITIES > CALIBRATE After the printer is heated up to an appro-... - Page 17 Vinci 1.0 Pro 3in1 Print Transfer print file through computer software "XYZware Pro" Connect the printer and the computer with USB cable and install "XYZware Pro" in the computer to transfer print file. Import .stl, .3w files Convert to .3w file Save .stl file...
-
Page 18: Wifi Connection
Vinci 1.0 Pro 3in1 Print WiFi Connection The printer supports Wi-Fi connection printing. Install "XYZware Pro" , and activate Wi-Fi setting of the printer in accordance with the following instruction to switch the printer to wireless control mode, such that the print file may be subsequently transferred wirelessly. - Page 19 Vinci 1.0 Pro 3in1 Print WiFi Connection Please enter printer name (either English or numeric name), press "Scan" function to obtain wireless base station information with dropdown menu, and select the name of the wireless network you desire to connect.
-
Page 20: Print From A Mobile Application
Vinci 1.0 Pro 3in1 Print From A Mobile Application 1.The mobile device needs to support wireless printing. 2.Install XYZprinting App from Android or iOS system. User Category Information Gallery My Upload Printer About Main screen Upload the item To remote... - Page 21 Vinci 1.0 Pro 3in1 ●Step Please register an account at Open the Play Store from your Android XYZprinting official website before browser or App store of iOS system to logging in. search "XYZgallery" and download the application to your device.
- Page 22 Vinci 1.0 Pro 3in1 Scanning Scanning takes around 5 minutes. During scanning, the object on the turntable revolves in a clockwise direction. Throughout the process, the laser modules projects linear beam at the object while the camera on the module fi lms a complete image sequence of the rotating object.
-
Page 23: Basic Workflow
Vinci 1.0 Pro 3in1 Viewpoints Model information The quality of a model is defined by the number of facet. Generally more facet could result in better quality. Delete model Scanning view Basic workflow Select a scan mode based on the Press “Scan”. - Page 24 Vinci 1.0 Pro 3in1 Scanning Devices Calibration ● Original model Scanning result Scanning result before calibration after calibration When you find inaccurate scan results, please follow the steps for scanning devices calibration. In XYZscan, select "Setting" > "Calibrate Now"...
- Page 25 Vinci 1.0 Pro 3in1 Select module Laser engraver module must be purchased separately.Please read through this manual and all safety reminders carefully before using, operating, dismantling,replacing, or removing this product. Please also comply with relevant safety reminders and instructions.
- Page 26 Vinci 1.0 Pro 3in1 Function Description : ● Select “Import” on the device to select the graphic file you wish to engrave. Once basic editing has been completed, select this "Engrave" icon. Alternatively, select this "Advanced Engraving Settings" icon to complete advanced settings before engraving.
-
Page 27: Support Details
Vinci 1.0 Pro 3in1 Support Details As the printer encounters issues, please refer to the following troubleshooting instruction to fix the issues. If the issue cannot be removed, please contact customer service center. Error message and Action In the event of problems, related service code will be shown on the printer screen and/or software interface. -
Page 28: Federal Communications Commission (Fcc) Statement
Vinci 1.0 Pro 3in1 Support Details Error Status Recommended Process Ways Printer is busy Try again after current task is completed, and examine the information displayed on screen of the printer. Firmware of the printer Check internet connection / Update firmware later.
