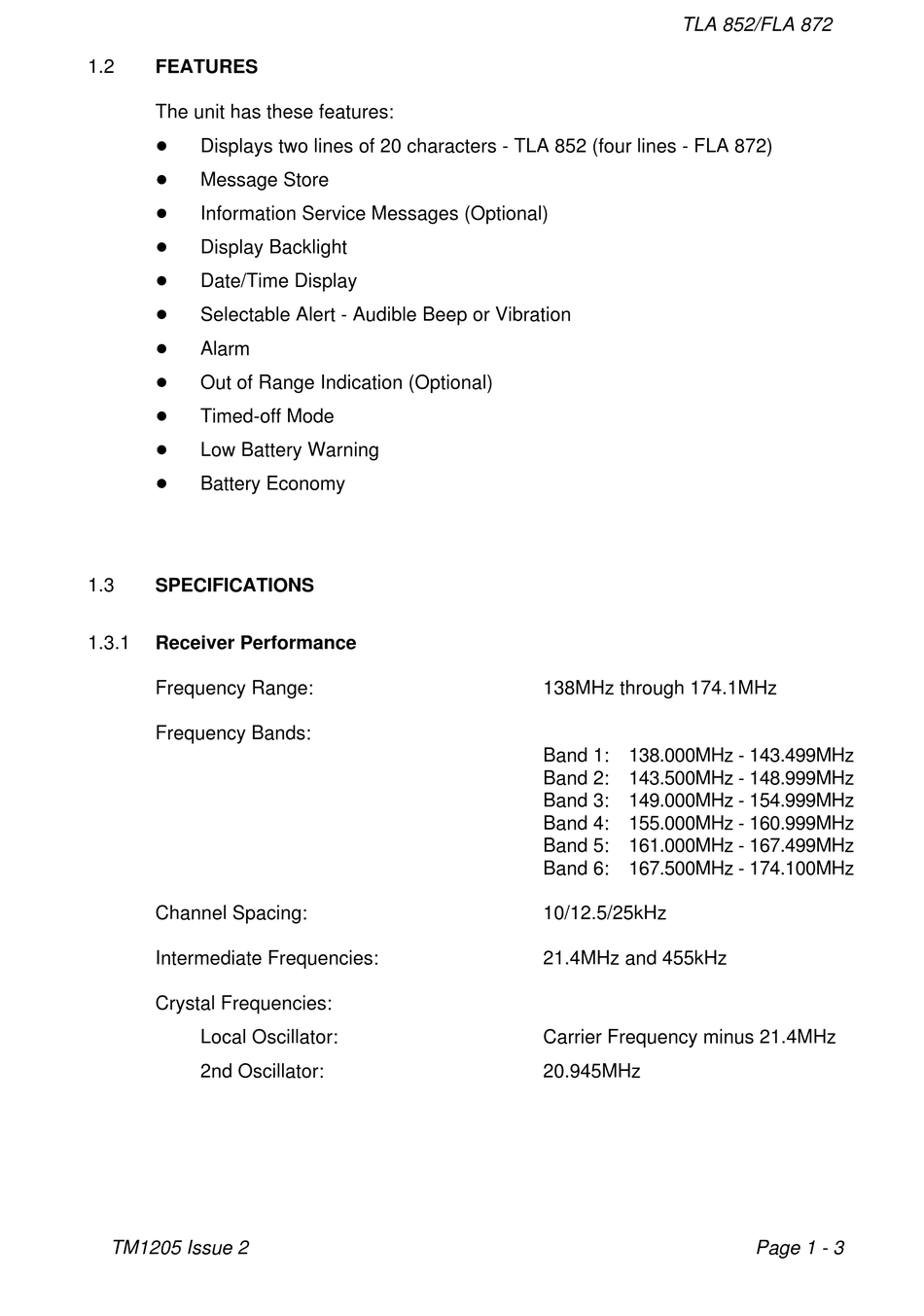

1.2

FEATURES

The unit has these features:
!
Displays two lines of 20 characters - TLA 852 (four lines - FLA 872)
!
Message Store
!
Information Service Messages (Optional)
!
Display Backlight
!
Date/Time Display
!
Selectable Alert - Audible Beep or Vibration
!
Alarm
!
Out of Range Indication (Optional)
!
Timed-off Mode
!
Low Battery Warning
!
Battery Economy
1.3

SPECIFICATIONS

1.3.1

Receiver Performance

Frequency Range:
Frequency Bands:
Channel Spacing:
Intermediate Frequencies:
Crystal Frequencies:
Local Oscillator:
2nd Oscillator:
TM1205 Issue 2
TLA 852/FLA 872
138MHz through 174.1MHz
Band 1: 138.000MHz - 143.499MHz
Band 2: 143.500MHz - 148.999MHz
Band 3: 149.000MHz - 154.999MHz
Band 4: 155.000MHz - 160.999MHz
Band 5: 161.000MHz - 167.499MHz
Band 6: 167.500MHz - 174.100MHz
10/12.5/25kHz
21.4MHz and 455kHz
Carrier Frequency minus 21.4MHz
20.945MHz
Page 1 - 3
