5.6
ASSEMBLY
1.
Case Front Assembly
2.
LED Display
3.
Decoder Board Assembly
4.
Radio Board Assembly
5.
Case Back Assembly
6.
Battery Positive Contact
7.
Case Fixing Screw
5.6.1
Battery Terminal Installation
a)
Refer to Figure 5.3 for the correct orientation of the terminal.
b)
Push the terminal into the slot in the Case Back.
5.6.2
Vibrate Motor Installation
a)
Install the Vibrate Motor in the clip.
b)
Use the Anti-static Workstation and the correct soldering tools to connect the
two wires to the Decoder Board.
TM1205 Issue 2
13
12
11
10
9
8

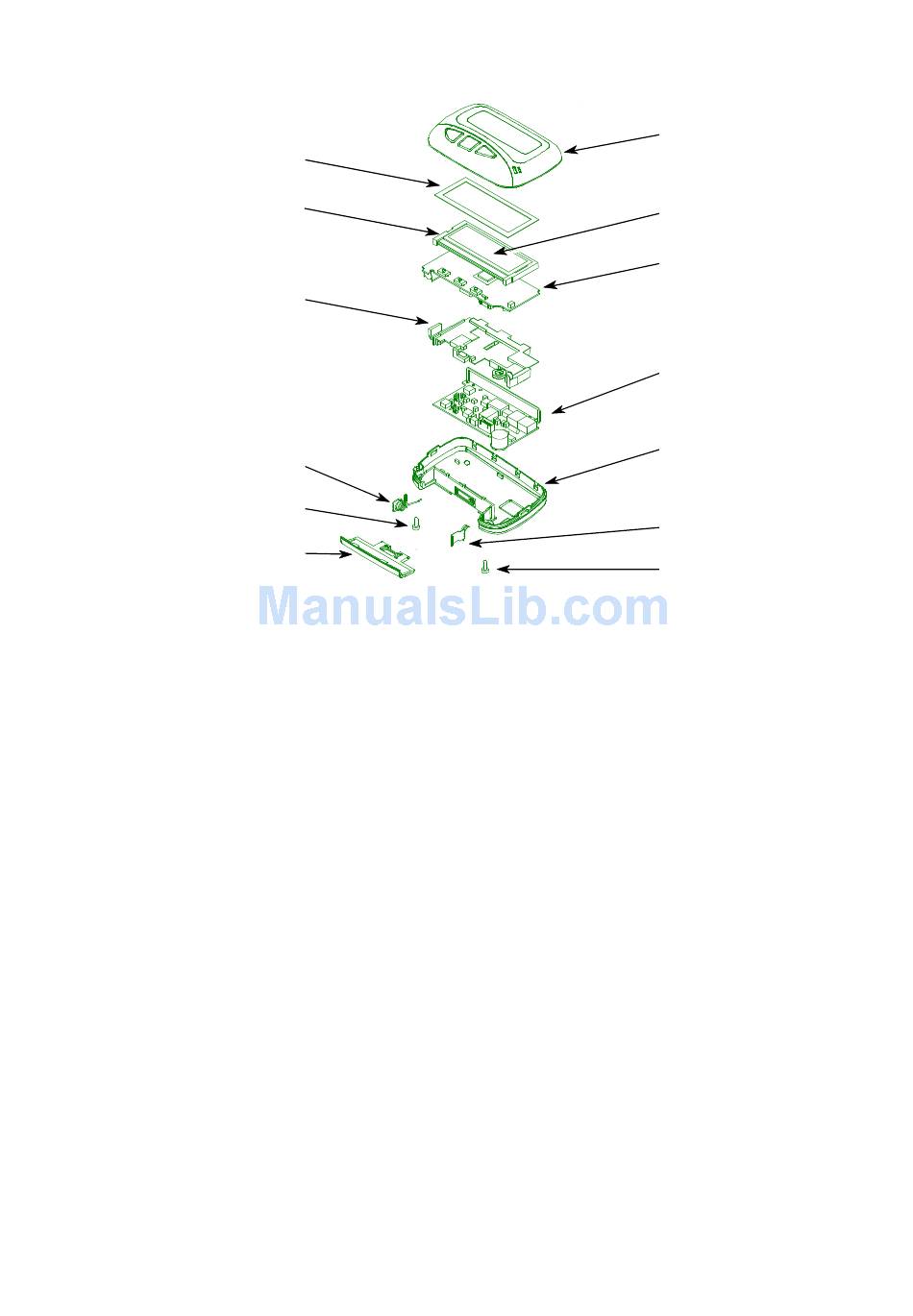

Figure 5.3: Exploded View of Unit
1
2
3
4
5
6
7
TAG11214-1
8.
Battery Door
9.
Case Fixing Screw
10.
Battery Negative Contact
11.
Rubber Mat
12.
Moulding Bezel LCD
13.
Display Gasket
TLA 852/FLA 872
Page 5 - 7
