Board Assembly Removal; Board Separation - Multitone FLA 872 Technical Manual

TAG11213-1
d) Remove the Case Back by applying pressure to the sides of the case, as shown
in Figure 5.2, and lifting the front edge of the Case Front until the rear catches
disengage.
5.5.2

Board Assembly Removal

a) Remove the Case Back (see paragraph 5.5.1).
b) Carefully lift the Board Assembly at the long edge next to the LCD Module.
When the edge of the Board Assembly is clear of the case, pull the assembly
away from the case.
5.5.3

Board Separation

a) Remove the Board Assembly from the case (see paragraphs 5.5.1 and 5.5.2).
b) Carefully pull the front edge of the boards apart to disconnect the connector
between the boards.
c) Pull the Decoder Board forward to release the LCD Module from under the
aerial.
d) To get access to the Radio Board components, remove the rubber mat.
TM1205 Issue 2
>

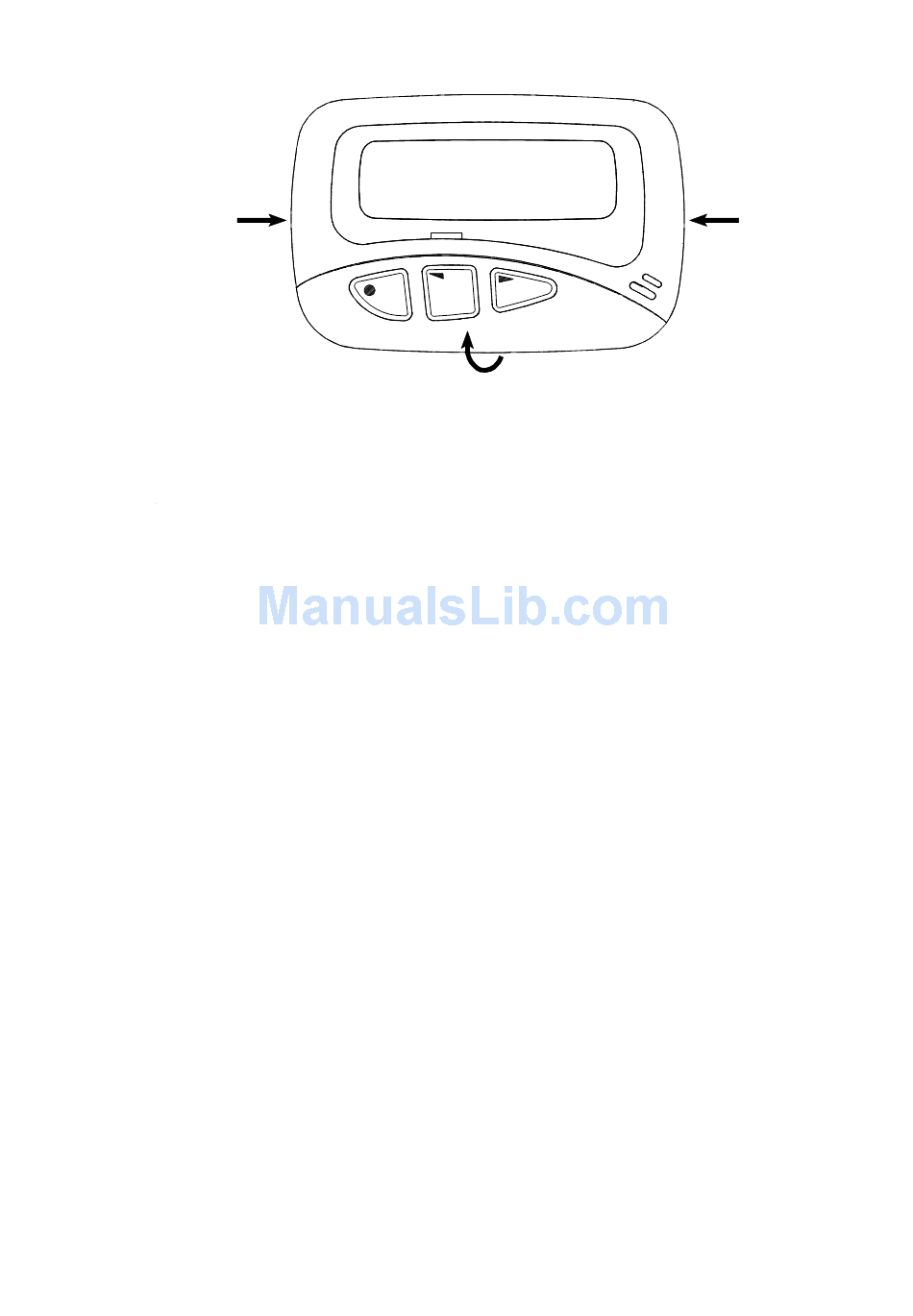

LIFT FRONT EDGE OF CASE FRONT
UNTIL REAR CATCHES DISENGAGE
Figure 5.2: Case Front Removal
TLA 852/FLA 872
APPLY PRESSURE
WITH FINGERS
TO SIDES OF CASE
Page 5 - 5
