TLA 852/FLA 872
5.9

PROGRAMMING

5.9.1

General

The pager contains an EEPROM which holds unique data. The data may be
altered as shown in the following paragraphs.
5.9.2

Equipment

The following equipment is required:
!
P671A Alignment Jig
!
P669H Programming Software
!
Programming Cable
!
IBM PC or equivalent
5.9.3

Procedure

Program the receiver as follows:
a)
Remove the Battery Door from the Case Back.
b)
Put the unit face down in the tray of the P671A, lower the arm over the unit
and lock the arm in position.
c)
Use the Progamming Cable to connect the programming pins of the P671A
to the PC serial port. Refer to Figure 5.15 and connect the correct coloured
wire to each programming pin.
d)
Read the 'Readme' file contained in the relevant programming software. The
'readme' file describes how to use the programming facility.
CONNECT THE BROWN
WIRE TO THIS PIN
Page 5 - 26

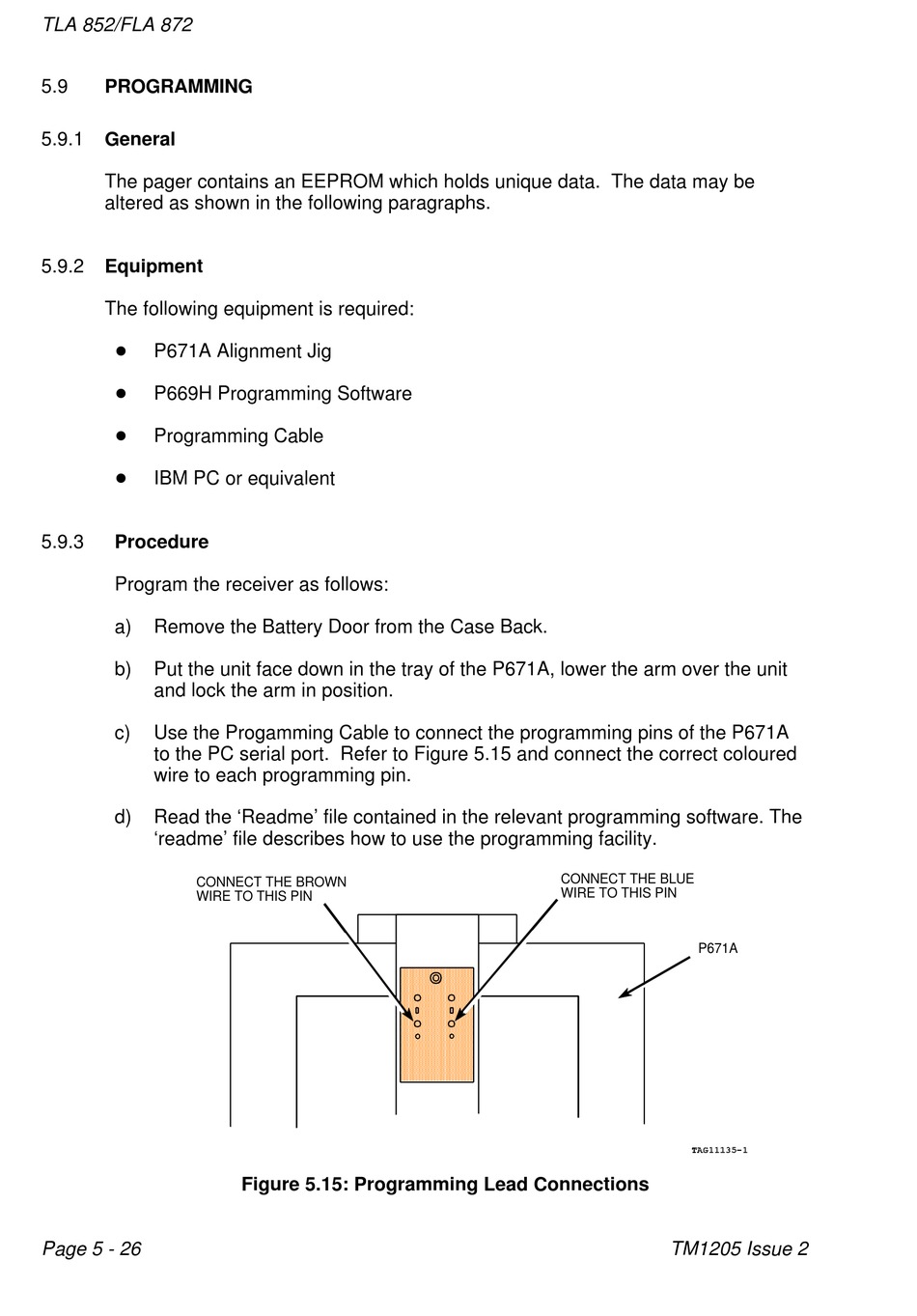

Figure 5.15: Programming Lead Connections
CONNECT THE BLUE
WIRE TO THIS PIN
P671A
TM1205 Issue 2
