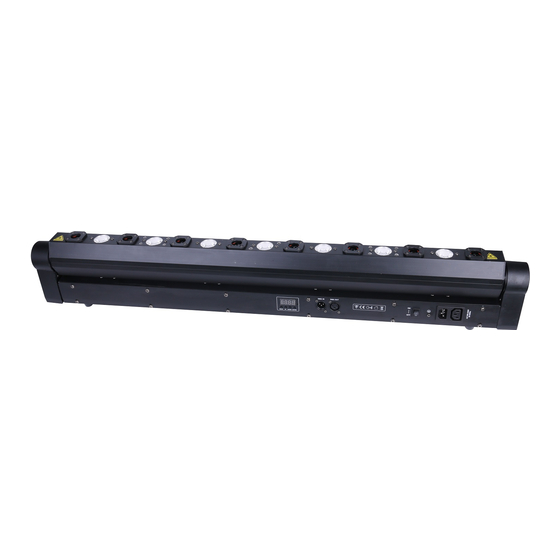

involight LEDBAR508R User Manual
  1. Manuals
  2. Brands
  3. involight Manuals
  4. DJ Equipment
  5. LEDBAR508R
  6. User manual

involight LEDBAR508R User Manual

Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual

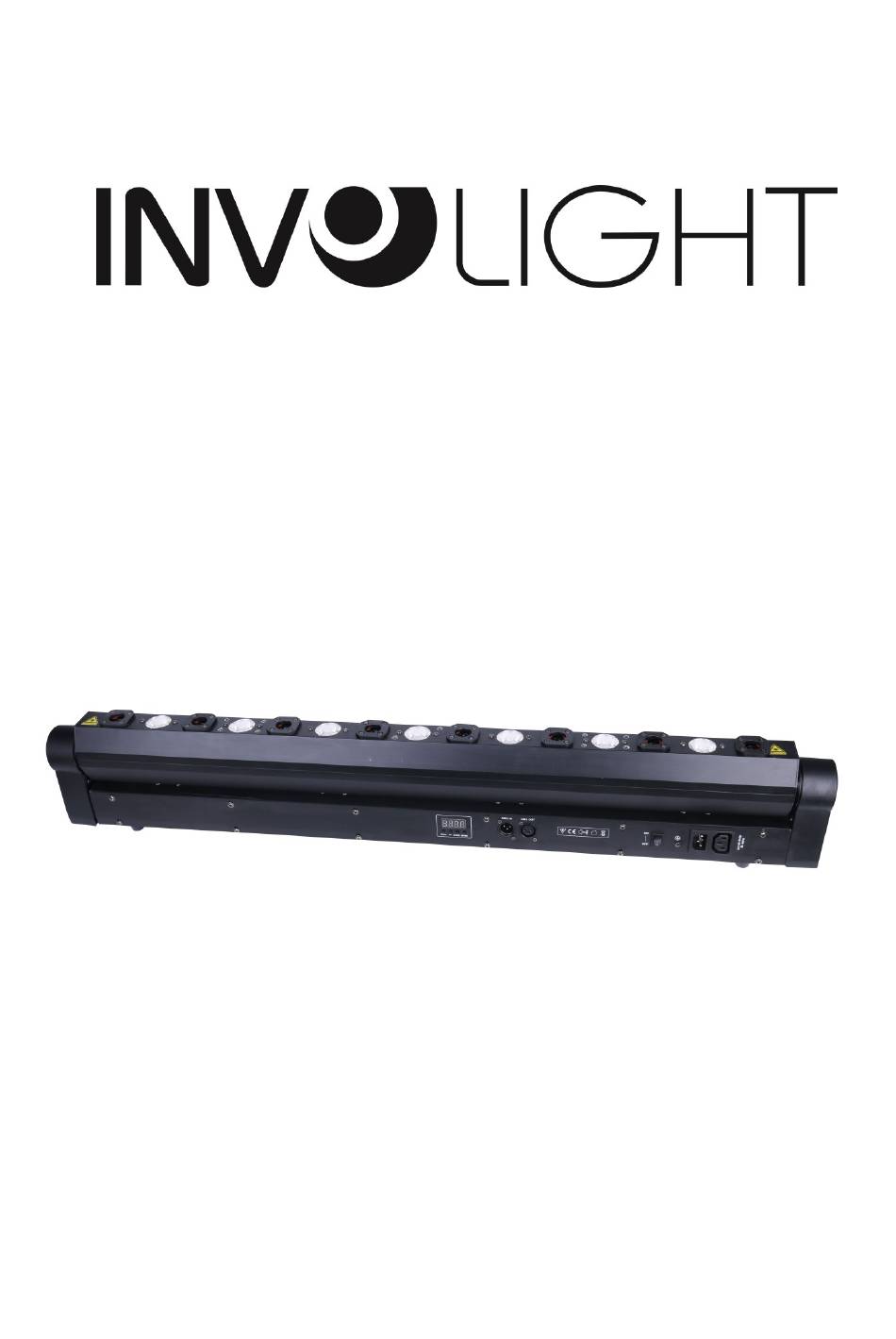

LEDBAR508R
User
Manual
Please read this manual carefully before use!
1

Advertisement

loading

Related Manuals for involight LEDBAR508R

Summary of Contents for involight LEDBAR508R

  • Page 1: User Manual

    LEDBAR508R User Manual Please read this manual carefully before use!

  • Page 2: Installation

    Thank you for purchasing this product. To optimize the performance of this product,prior to use,please read these operating instructions carefully to familiarise yourself with the basic operation of this unit.Please keep the manual in safe price for future reference. This unit has been tested at our factory before being shipped to you, there is no assembly required.
  • Page 3 Attention 1.Please do not open the bottom cover yourself without permission.Operate it accord the user manual. Call the technician when the machine breaks down. 2.Please do not see the laser beam directly to avoid any damage. 3.Before connect or disconnect the power, please adjust the luminance of the laser diode to the least to avoid any damage to the laser diode.
  • Page 4 HOLD Hold LoSt SOUN Sound SEnS S001-S100 Sound sensitivity Light reverse Reset direction of light 0-255 Angle fine, for adjust direction Corr once multi units connected rdon display DISP rdoF Display reverse Display full on all the time Display off once without click after 13secs Deft Factory default...
  • Page 5 22channels Channel Value Function Dimmer 0-255 Dimmer 0-100% 0-15 No function 16-95 Strobe （1HZ-25HZ Slow-Fast） Strobe 96-175 Strobe 1Hz from slow to fast 176-255 Random strobe Motor Position 0-255 Motor Position Setection Motor fine 0-255 Motor Position fine adjustment adjustment Motor Scanner Motor Scanner Speed 0-255...

  • Page 6: Maintenance

    CH19 LED4 0-255 0-100% CH20 LED5 0-255 0-100% CH21 LED6 0-255 0-100% CH22 LED7 0-255 0-100% Note:Set master-slave,master machine at auto or sound mode and slave machine at d001. Maintenance Maintenance should be performed every 15-day period, by using a sponge which is dipped with alcohol, rather than wet cloth or other chemical liquid, to clean the mirror.

  • Page 7: Warranty Card

    Declaration This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual. We cannot be made liable for damages caused by incorrect installations and unskilled operation! Warranty Card...
