Rotor Direction; Pre-Flight Check - Compass 3D Plus Nitro Powered Helicopter Assembly Manual

12

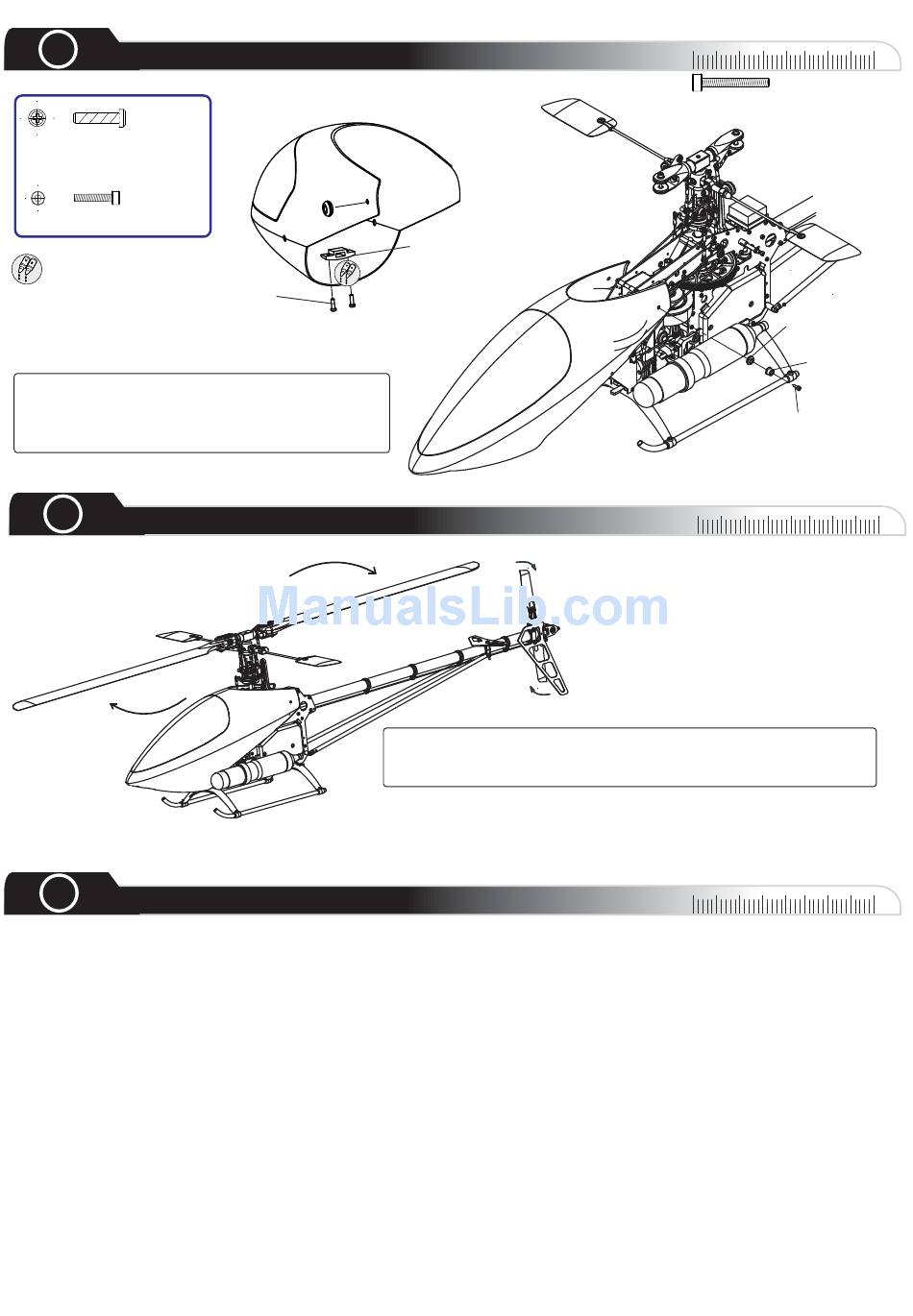

Canopy
M2.5x6 Self Tapping
Bolt X 2
M3x15 Cap Head Bolt x2
Use AB Glue
M2.5x6 Self
Tapping Bolt
Place the Canopy onto the Frames and mark
the right position of the Canopy Inserts. Apply
AB Glue to fix the Canopy Insert onto the
Canopy.
13

Rotor Direction

14
Pre Flight Check
1. Ensure that receiver & transmitter battery are fully charged.
.
2 Check if all bolts and screws are fastened tightly and correctly.
.
3 Repeat step 11 to check all servo functions are correct.
.
4 Ensure tail and gyro direction are correctly set
5. Check that main blades, paddles and tail blades are installed in the right direction.
6. Check that there are no missing or damaged parts, never fly with any damaged parts.
7. Make sure all electronic devices are firmly fastened and connected.
8. Before starting the engine, make sure the Flight Mode or Idle switch is in Normal mode,
and that the Throttle stick be in the lowest position.
Canopy Insert
When the Rotor spins clockwise the Tail Blades should turn
clockwise as well watching the Tail Rotor from the Tail Fin side.
If not Belt is installed the wrong way and has to be corrected.
.
0 0 0 0 10 30
20
Canopy
Dampener
Thumb Screw
M3X12 Cap
Head Bolt
0 0 0 0 10 20 30
0 0 0 0 10 30
20
40
40
40
