Compass 3D Plus Nitro Powered Helicopter Assembly Manual page 10

6
Servo
M2.5x16 Self Tapping
Bolt X 4
M2x6 Cap Head Bolt x8
M2.5x20 Cap Head Bolt x16
2.5mm Washer X 20
Servo Nut x 10
M2 5X20 Cap
Head Bolt

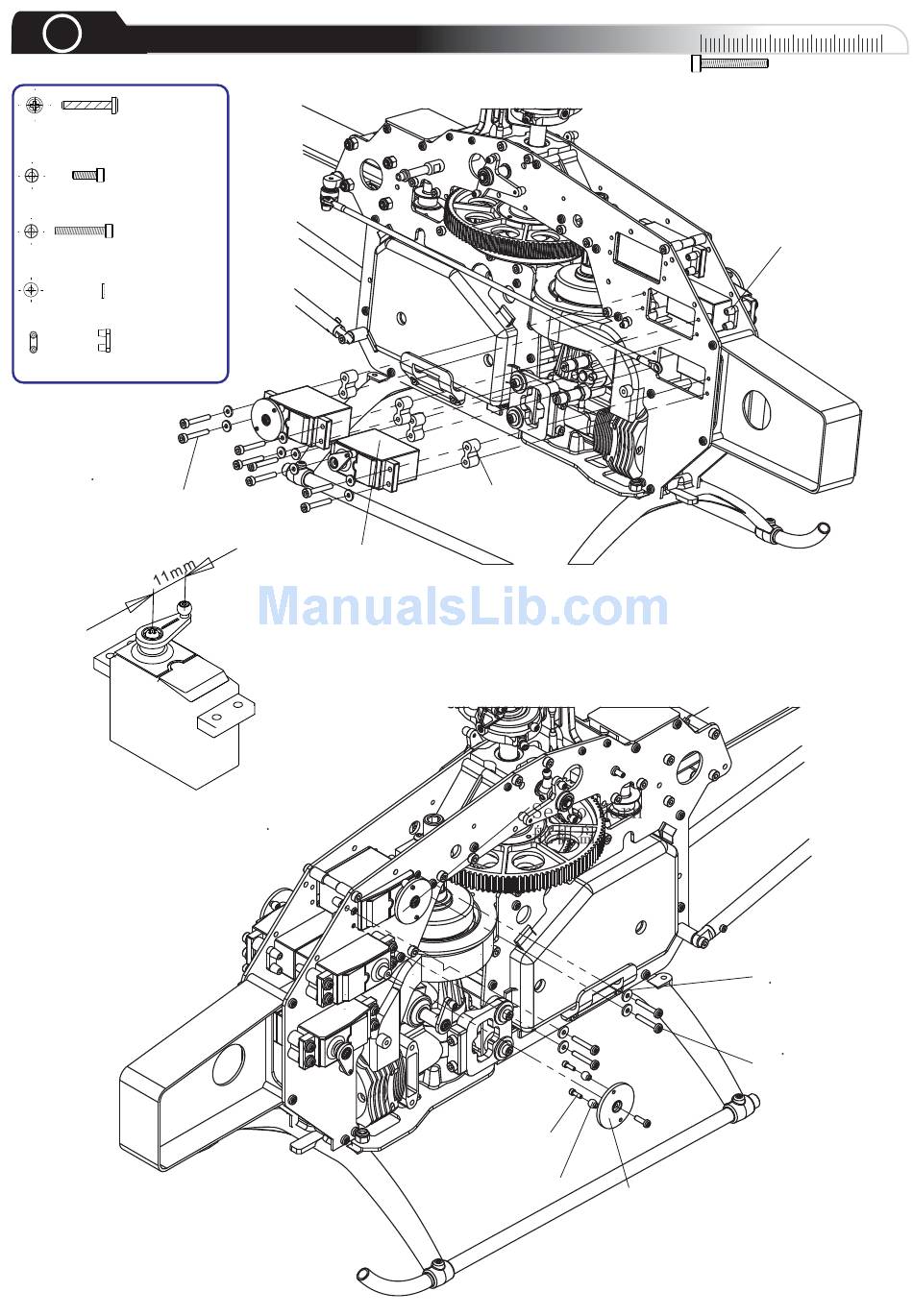

All control balls should be set
to 11mm from the center
Servo Spacer
Servo
M2X6 Cap
Head Bolt
Link Ball
0
10 20
Nylon Servo Nut
2 5mm Washer
M2 5X16 Self
Tapping Bolt
Servo Horn
30 40
