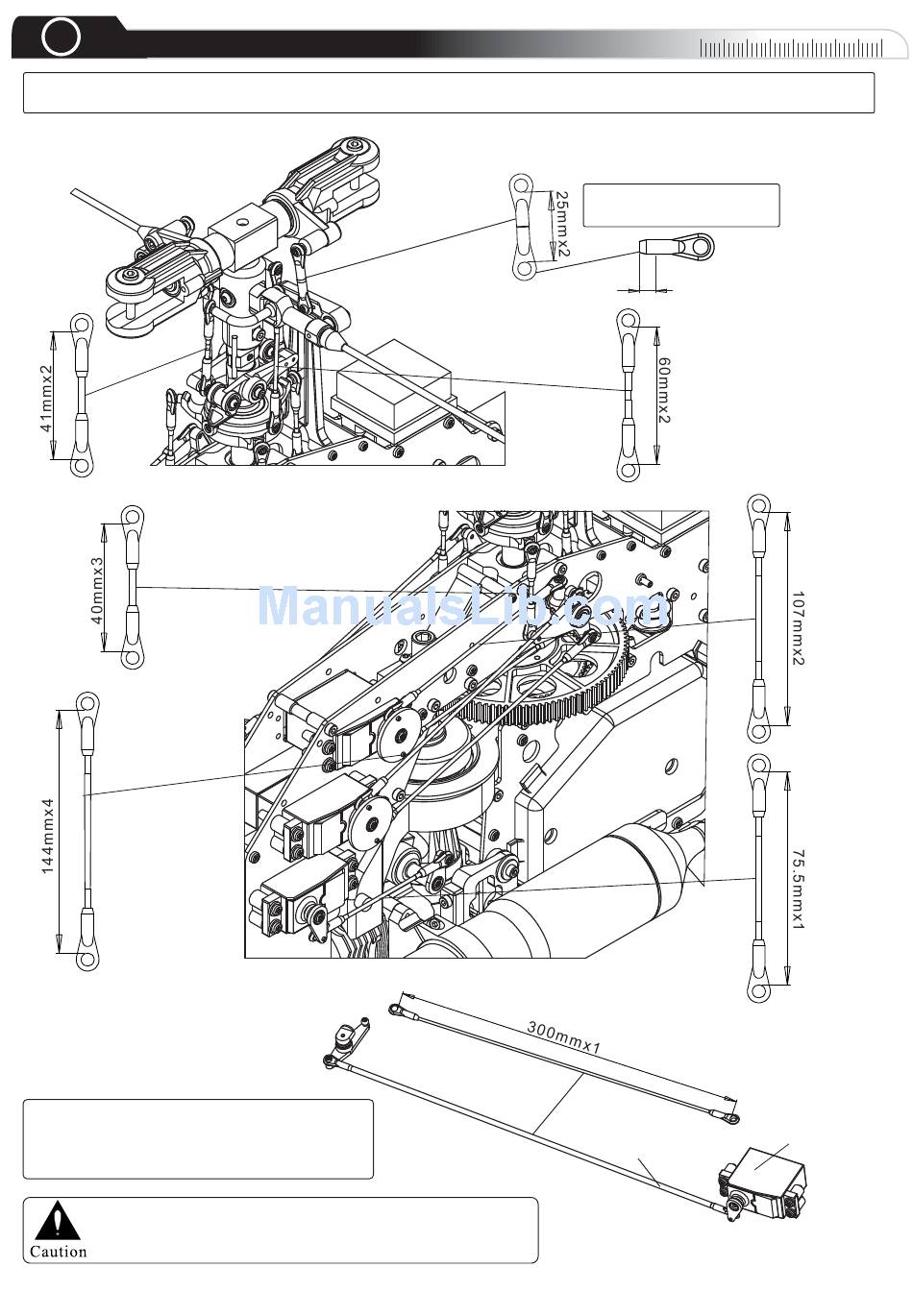

Linkage
The Linkage lengths indicated below are approximate. Be aware that these values may vary depending on
the servos and arms used in your setup.
Compass Model Ball Links are designed to
be tight; this allows you to adjust them to
your personal needs. We highly suggest the
use of a ball link sizing tool.
Do not used pliers to resize Ball Links. Pliers can
cause inadvertent damage to the Ball Links that may
result in failure during use.
0 0 0 0
10
Please cut away 1.5mm
from each Ball Link.
2mm
Rudder Servo
Carbon Tube
20 30 40
