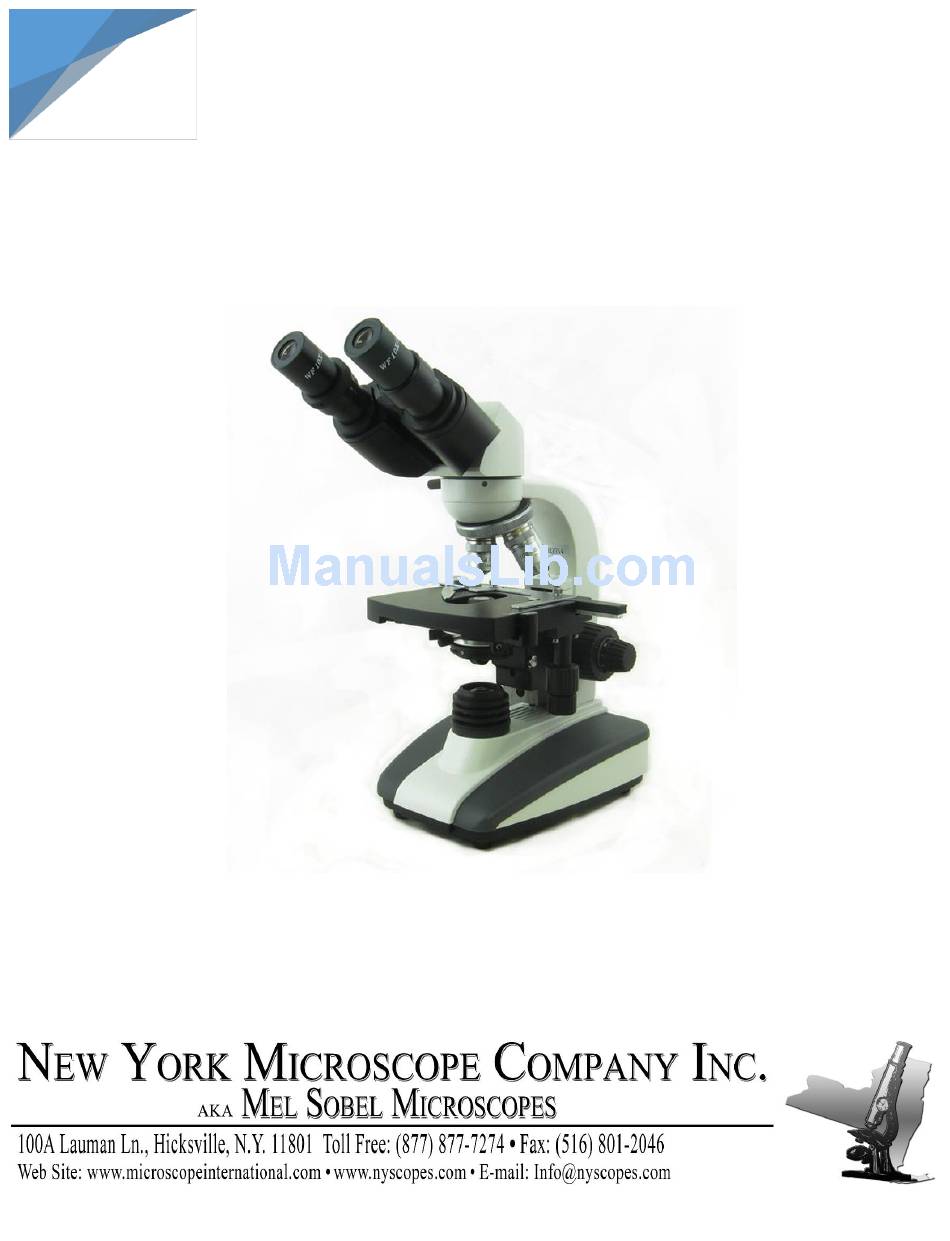

- Page 1 ® STEINDORFF CX SERIES INSTRUCTION MANUAL...
- Page 2 ® STEINDORFF A microscope is the key to many thrilling expeditions in the invisible micro-world. Before we venture into this wonderland let’s learn to use the microscope properly. As with all fine instruments, your microscope must be kept in good working order. Dampness may cloud the lens and corrode the metal parts. When the microscope is not in use, protect it with a cover or case.
- Page 3 ® STEINDORFF ILLUMINATOR: Depending on the model the microscopes are usually equipped with a 20W 110V Tungsten light bulbs, 120V 5W Fluorescent tube, or 6V 20W Halogen bulb. MECHANICAL STAGE: The mechanical stage on the microscope is equipped with low position coaxial controls for ease of operation.
- Page 4 Lay the microscope on its side. Loosen the thumbscrew that secures the lamp housing cover and open. The CX series is either equipped with an 110V 20W tungsten bulb, a 120V 5W fluorescent tube, or a 6V 20W Halogen bulb. Remove the lamp by depressing it slightly and turning it counter clockwise until it pops up slightly.
- Page 5 ® STEINDORFF The halogen bulb is held in place by a socket. Simply pull the bulb out to remove. When inserting a halogen bulb it is important not to directly touch the bulb with your fingers. Any dust or dirt on the surface of the bulb will decrease its life expectancy drastically.
