STEINDORFF S-340 Instruction Manual

Zoom stereo microscope
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
STEINDORFF
®

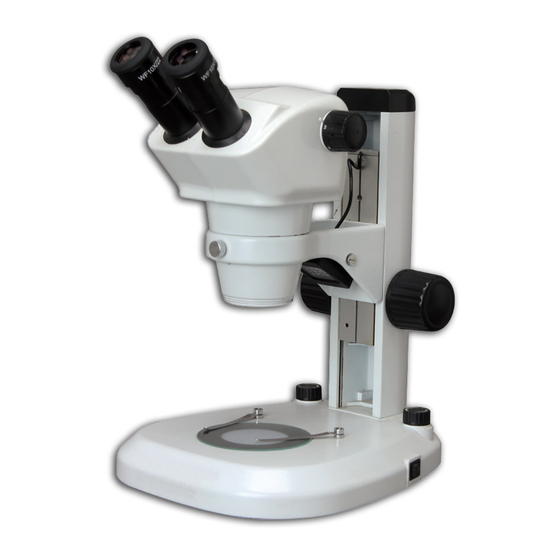

Zoom Stereo Microscope
S-340 / S-341 / S-344
Instruction Manual
S-344
S-340
S-341
This instruction manual is for the Zoom stereo microscope S-340/341/344. To insure safety and obtain
optimum performance and familiarize yourself fully with the use of this microscope .We recommend that
you read the manual thoroughly before operating the microscope, Attain this manual instruction in an easily
accessible place near the microscope for the further reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S-340 and is the answer not in the manual?

Questions and answers

Related Manuals for STEINDORFF S-340

Summary of Contents for STEINDORFF S-340

  • Page 1 S-340 S-341 This instruction manual is for the Zoom stereo microscope S-340/341/344. To insure safety and obtain optimum performance and familiarize yourself fully with the use of this microscope .We recommend that you read the manual thoroughly before operating the microscope, Attain this manual instruction in an easily...

  • Page 2: Table Of Contents

    STEINDORFF ® CONTENTS Use Notices ……………………………………………………………………………………… 1. Name of Components ………………………………………………………………………. 2. Assembly ……………………………………………………………………………………. 2.1. Figure ………………………………………………………………………………….. 2.2. Process ………………………………………………………………………………… 3. Adjustment …………………………………………………………………………………. 3.1. Trinocular Head ………………………………………………………………………. 3.2. Stand …………………………………………………………………………………... 4. Technical parameter ……………………………………………………………………….. 5. Troubleshooting ……………………………………………………………………………. 6. Outfit …………………………………………………………………………………...

  • Page 3: Use Notices

    STEINDORFF ® USE NOTICES Notice 1. The microscope is composed of precision components, Handle with care to prevent abrupt. 2. Check the input voltage: be sure the input voltage which signed in the back of the microscope is consistent with the power supply voltage, or it will bring a serious damage to the instrument.

  • Page 4: Name Of Components

    STEINDORFF ® 1. NAME OF COMPONENTS Binocular/Trinocular/Digital head Stand EW 10 eyepiece Focusing knob Lock-screw Glass plate Shift knob Base with...

  • Page 5: Assembly

    STEINDORFF ® 2. ASSEMBLY 2.1. Assembly Graph Graph below indicate the assembly process Check it is clean before assembling. Do not scratch any components and the surface of glass.  ③ Binocular head EW10 Eyepiece ① ② ④ Stand...

  • Page 6: Figure 1

    STEINDORFF ® 2.2. Assembly Process 2.2.1. Assembly Binocular/Trinocular Head (Figure 1) Loosen the lock-screw ③ of stand ④, put the binocular/trinocular head ② into the hole of stand, ① ② tight the lock-screw. 2.2.2. Eyepiece Assembly (Figure 2, Figure 3) ③...
  • Page 7 STEINDORFF ® 2.2.3. Cable connecting (Figure 4) 1. Turn to “O” position ⑥ before connecting ⑧ ⑧ power ⑦. 2. Insert the pin ⑦ into microscope plug safely. 3. Insert the pin ⑧ into the power plug. 2.2.4. Use the glass stage (Figure 5) ⑦...

  • Page 8: Adjustment

    STEINDORFF ® 3. ADJUSTMENT 3.1. Binocular/ Trinocular head 3.1.1. Interpupillary Adjustment (Figure 6) Adjusting Interpupillary after observation for another one using. Hold the two tubes, ① adjust interpupillary to obtain a clear image. 3.1.2. Diopter Adjustment (Figure 7) ① 1. Turn the diopter adjusting rings ② to the zero.

  • Page 9: Stand

    STEINDORFF ® 3.2. Stand 3.2.1. Focusing Knob Adjustment (Figure 8, Figure 9) 1. Pull down the skateboard ② by focusing knob ① in a low position to prevent the microscope head drop because of focusing knob loosen. 2. Hold two side focusing knob ①. Left focusing knob keep still, turn the right focusing knob.

  • Page 10: Technical Parameter

    STEINDORFF ® 4. TECHNICAL PARAMETER 6.1:1 Zoom Ratio 0.8x～5x Zoom Range Wide field 10x/Φ22, interpupillary adjustable Eyepiece Incline 45°, interpupillary range: 52～75mm Viewing Head 115mm Working Distance 105mm Range of Movement LED lamp illumination Illumination 100-240V, 0.15A, 50/60HZ Input 5. TECHNICAL PARAMETER...

  • Page 11: Outfit

    STEINDORFF ® 6. OUTFIT Components Specification Quantity S-340 S-341 S-344 Body Main body stand ● ● ● Binocular zoom head ● ○ ○ Head Trinocular zoom head ○ ● ○ Digital Binocular zoom head ○ ○ ● Transmitted (LED) ●...

This manual is also suitable for:

S-344S-341
