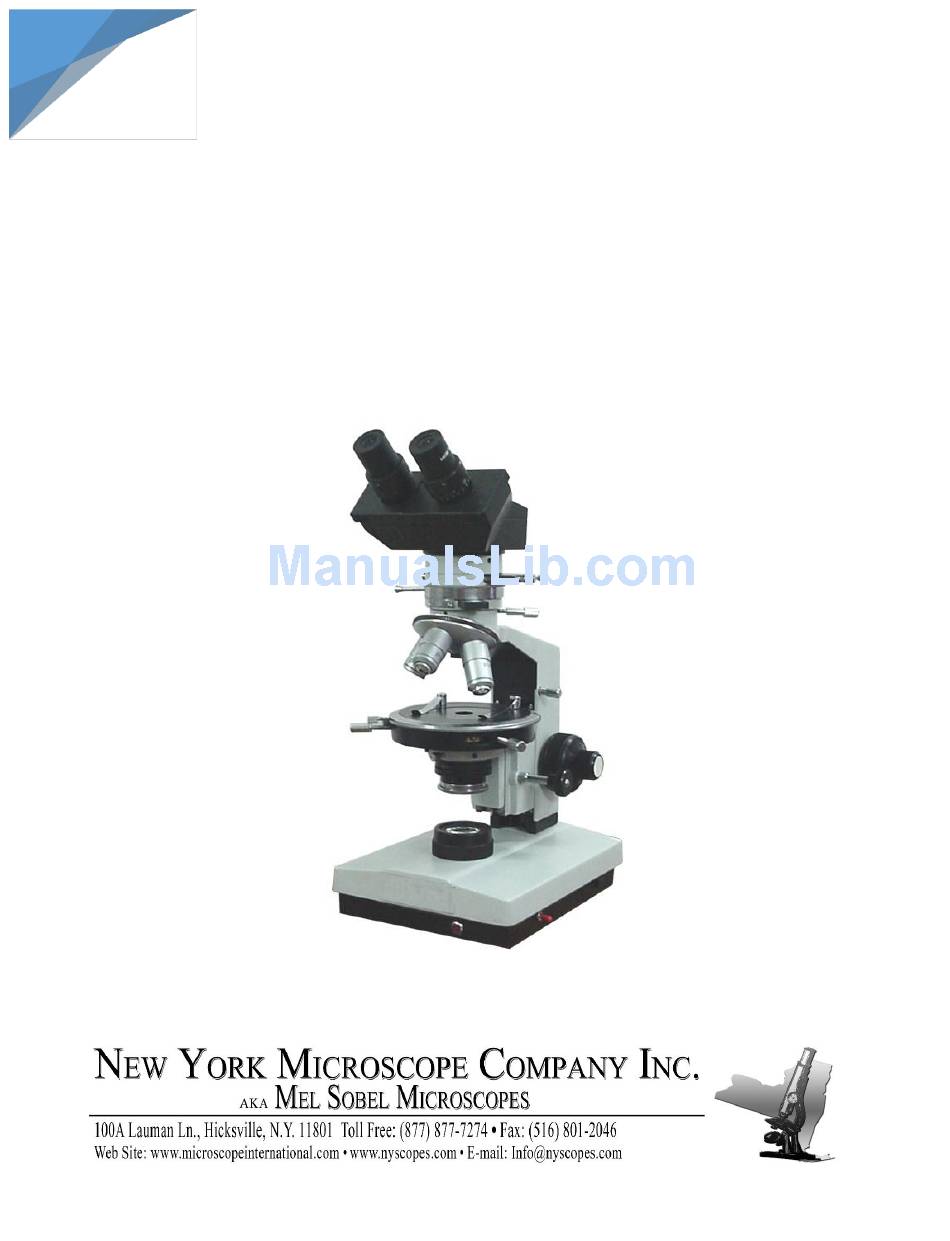

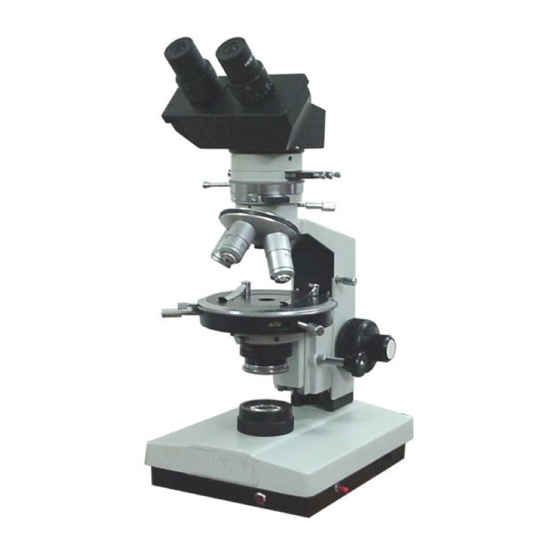

- Page 1 ® STEINDORFF NYMC62B00 Polarizing Microscope...
- Page 2 ® STEINDORFF List of Parts 1. Eyepiece 11. Brightness Control 2. Binocular Head 12. Power Switch 3. Bertrand Lens 13. Power Indicator 4. Compensator Socket 14. Light Collector 5. Clamp Screw 15. Graduated Marks of Polarizer 6. Stage Height Adjustment Screw 16.
- Page 3 ® STEINDORFF Description The Polarizing Microscope is one of the most useful professional experiment instrument for use in the fields of geology, mineral and metallurgical department as well as associated educational institutions of higher studies. This Polarizing Microscope can be used for single polarizing examination, orthogonal polarizing examination and conical polarizing examination as well as for photomicrography.
- Page 4 ® STEINDORFF 8. Illumination: Transmitted 6V-20W light source, brightness adjustable. 9. Line Power: 220V/50-60Hz. 10. Binocular Viewing Head 11. Compensator: Quarter Wedge 1-4 Order, Full Wave 1l Gypsum & Quarter Wave 1/4l Mica. 12. Condenser: Abbe two-lens condenser, N.A. = 1.25.
- Page 5 ® STEINDORFF 4) When observing the microstructure of a specimen, usually use a low power objective to look for the object, then move the object towards the center of the field of view and exchange a high power objective for observation.
- Page 6 ® STEINDORFF 1) Analyzer & Polarizer shall be crossed in the light path. The images appear in the objective rear focal plane when an optically anisotropic specimen is viewed between crossed polarizer using a high numerical aperture objective/condenser combination. 2) The iris diaphragm should be closed to 90%.
