Exiting the Installer Options
When done, press the COMMAND key once to return to the Installer Options screen. Press the Select key under STOP
to exit the Installer Options function.
Programming Cards into the System
From the User Menu, select USER CODES?. Choose ADD. At the ENTER CODE: - display, present the user's card to
the reader. The keypad works by reading the 4 or 5-digit user code from the data sent by the access control reader.
For more information, refer to the panel's user's guide section on adding, deleting, and changing user codes.
Additional Power Supply
If the current draw for all keypads exceeds the panel's output, you can provide additional current by adding a Model
505-12 auxiliary power supply. Connect all keypad common wires to the negative terminal of the power supply. Run
a jumper wire from the power supply's negative terminal to the common terminal of the panel. Connect all keypad
power (+12 VDC) wires to the positive terminal of the power supply. Do NOT connect the positive terminal of the
power supply to any terminal of the panel. Refer to the 504-24 and 505-12 Power Supply Installation Guide (LT-0453)
for more information.
Door Strike Relay Specifications
The Easy Entry keypads provide one internal Form C (SPDT) relay for controlling door strikes or magnetic locks. Three
wires on the 5-wire harness, Violet (N/C), Gray (Com), and Orange (N/O), allow you to connect devices to the relay.
The Form C relay draws up to 30mA of current and its contacts are rated for 1 Amp at 24 VDC.
Door Strike Relay Operation
As soon as the user code sent from the reader has been verified by the panel, the keypad Door Strike relay activates
for five seconds. (Note: The length of the 5-second delay is programmable when the keypad is used on an XR200-
485.) During this time, the access door (connected to zone 2) must be opened to start the 40-second entry/exit timer
and zone soft shunt. See the timeline shown below.
User's Guide
There are three different operating modes: Door Strike, Arming and
Disarming, and Entry Delay. All of the examples below assume that
CLOSING CODE is YES in the panel's programming.
DOOR STRIKE
Area and All/Perimeter Door Strike - From the Status List, present your
card to the reader. Once it is validated by the system, the Door Strike
relay activates. See Door Strike Relay Operation above. Home/Away
systems only activate the Door Strike relay when arming and disarming.
ARMING AND DISARMING
Area system Arming and Disarming - Press Command. The keypad displays ARM DISARM. Press the Select key
under either option. The keypad displays ENTER CODE: -. Present your card to the reader. Once it is validated by
the system, all areas accessible by you arm or disarm automatically and the Door Strike relay activates.
ABC SECURITY
ARM
DISARM
POWER
Digital Monitoring Products

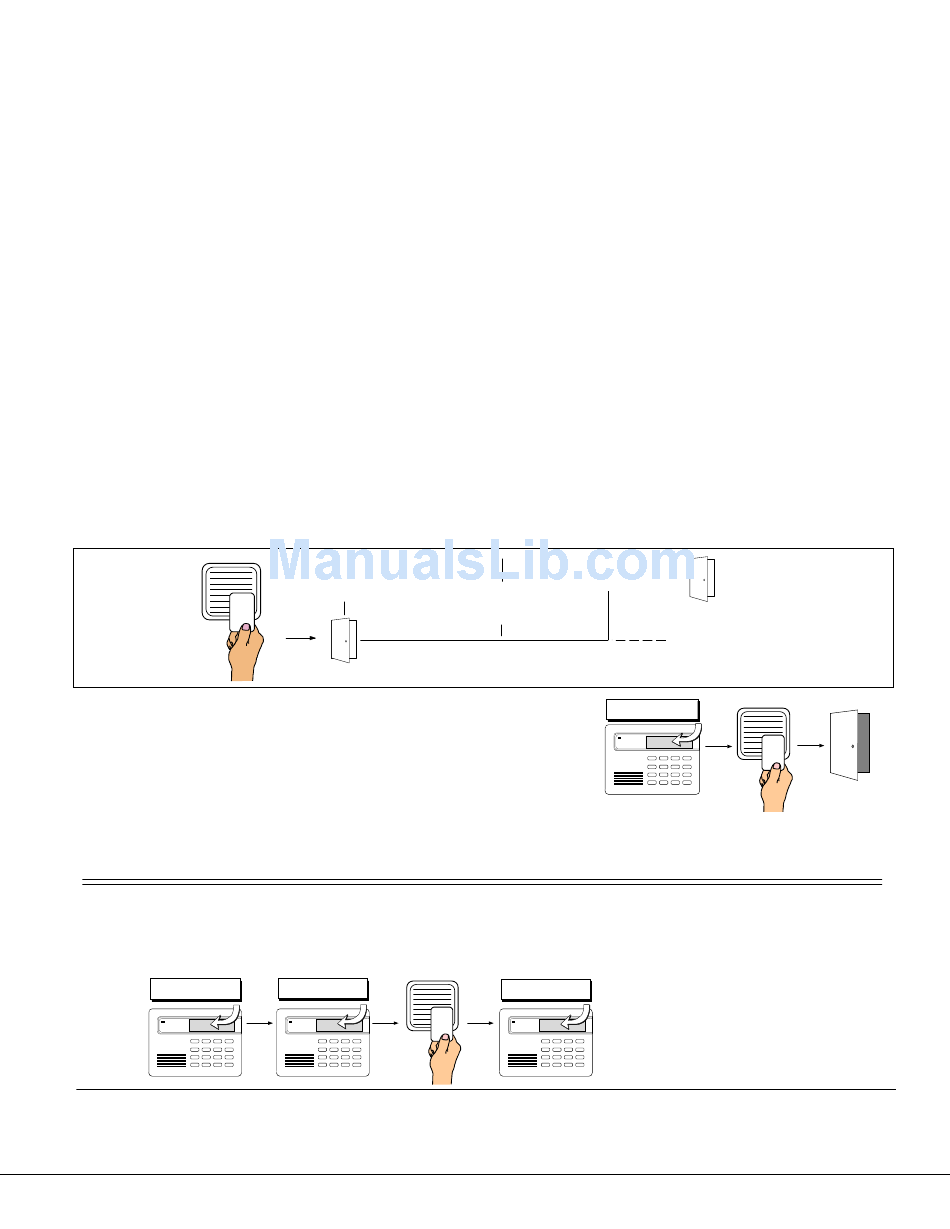

5 Second
Strike
1 ----------- 5
40 Second "Soft-Shunt"
and entry/exit timer.
Access door
is opened.
ABC SECURITY
ENTER CODE: –
POWER
40
Seconds
At 30 seconds, the
keypad begins
beeping if door
has not closed.
End of
timer.
ABC SECURITY
FRI
POWER
While the keypad is
in the Status List,
present your access
card.
ABC SECURITY
ALL?
NO
YES
Select NO to arm or disarm individual
areas. Select YES, or simply wait, and the
POWER
keypad will automatically arm or disarm all
areas for which you are authorized.
If access door is still
open past 30 seconds, a
zone fault is indicated.
2: 5 1 A M
The relay activates for five seconds during
which time you can open the door.
Once you open the door, you have 40
seconds to exit and close the door before
the zone 2 Soft-Shunt expires.
791/793 Keypad Installation Sheet
5
