CyberView WS119 User Manual

CyberView WS119 User Manual

19” widescreen lcd 1152 x 900 native resolution 1u sun lcd console drawer
Hide thumbs Also See for WS119:

Advertisement

Quick Links

User Manual
Designed and manufactured by Austin Hughes
UM-CV-751-WS119-Q116V1
dedicated KVM switch and rackmount screen technology
19" Widescreen LCD 1152 x 900 Native Resolution
WS119
1U SUN LCD Console Drawer
Options :
- DC power
www.austin-hughes.com
751

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WS119 and is the answer not in the manual?

Questions and answers

Summary of Contents for CyberView WS119

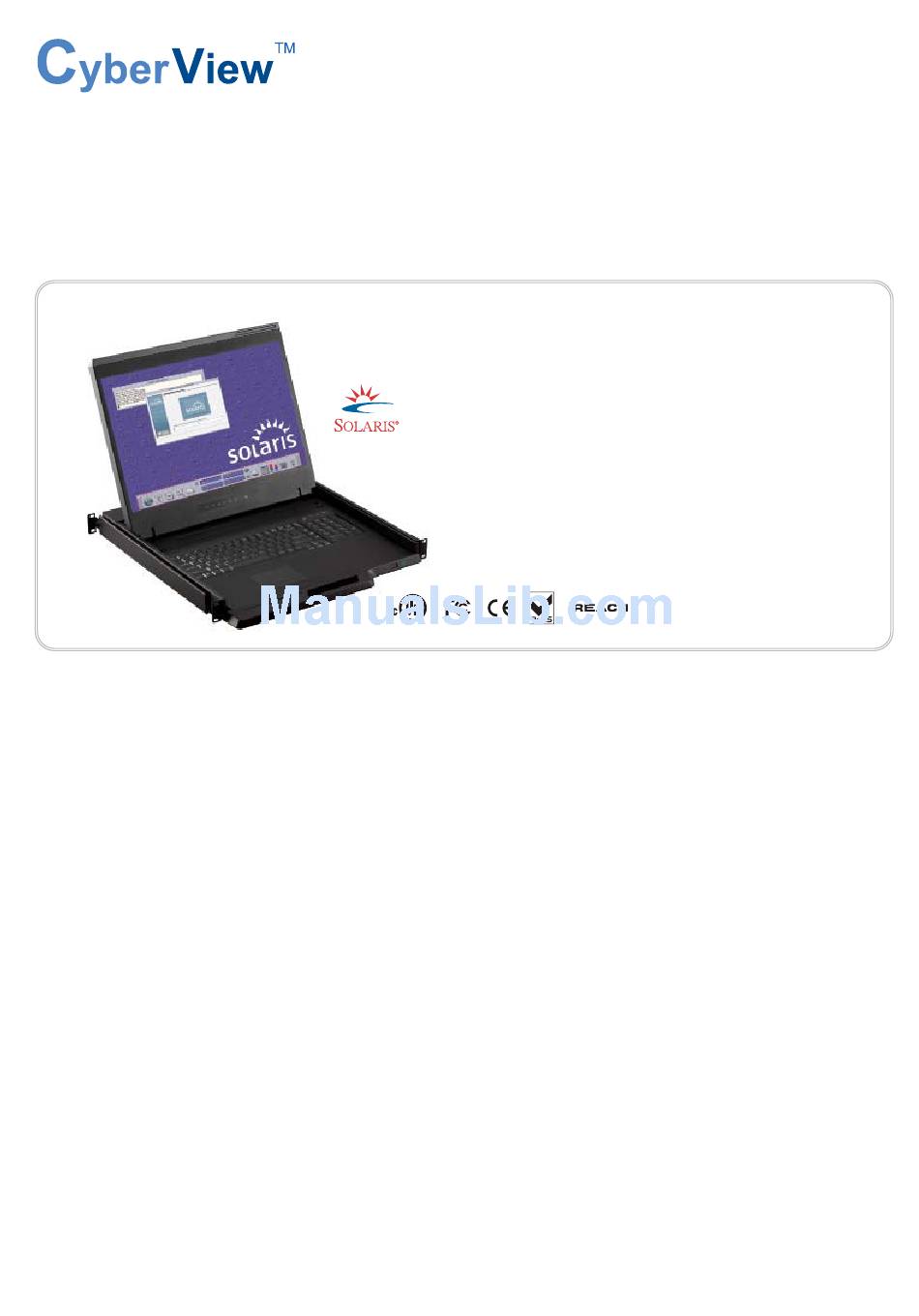

  • Page 1 KVM switch and rackmount screen technology User Manual 19” Widescreen LCD 1152 x 900 Native Resolution WS119 1U SUN LCD Console Drawer Options : - DC power Designed and manufactured by Austin Hughes UM-CV-751-WS119-Q116V1 www.austin-hughes.com...
  • Page 2 ■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. UM-CV-751-WS119-Q116V1 www.austin-hughes.com...
  • Page 3: Table Of Contents

    Contents < Part. 1 > WS119 Package Content Structure Diagram & Dimension P.1 - 2 Installation P.3 - 5 Connection P.6 - 7 < Part. 2 > Specifi cations / OSD Product Specifi cations P.8 - 9 Keyboard / Mouse Specifi cations P.10 - 11...
  • Page 4 -M1604 www.austin-hughes.com/support/usermanual/cyberview/UM-CV-SKVM-KIT.pdf Local Remote 8-port 16-port 32-port Combo DB-15 KVM -IP802 -IP1602 -802 -1602 -S801 -S1601 www.austin-hughes.com/support/usermanual/cyberview/UM-CV-DVIKVM-KIT.pdf Local Remote 12-port DVI-D -1201D www.austin-hughes.com/support/usermanual/cyberview/UM-CV-USBKVM-KIT.pdf Local Remote 8-port 16-port 32-port USB Hub DB-15 KVM -IP802H -IP1602H -802H -1602H -801H -1601H UM-CV-751-WS119-Q116V1 www.austin-hughes.com...
  • Page 5: Before Installation

    fi rst, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-WS119-Q116V1 www.austin-hughes.com...
  • Page 6: Package Content

    < Part 1 > < 1.1 > Package Content WS119 unit X 1 - CX-6 6ft DVI-D console cable X 1 ( Alternative : CB-6 6ft VGA console cable ) - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models.
  • Page 7 Weight 441.6 x 460 x 44 mm 590 x 808 x 140 mm 11.5 kg 16.3 kg WS119 series 17.4 x 18.1 x 1.73" 23.2 x 31.8 x 5.5” 25 lb 36 lb The weight is only for the single console models. It varies with accessories & options such as KVM &...
  • Page 8 Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■ Fix the LCD console drawer into the rack. M6 screw, cage nut & cup washer x 8 are provided. UM-CV-751-WS119-Q116V1 www.austin-hughes.com...
  • Page 9: Installation

    < 1.3 > Installation - How to install 2 post rack brackets WS119 Step ■ Release front mounting ears before applying 2 post rack brackets. ■ Insert rear mounting brackets into the LCD console drawer. Option Model : MB-751-12 Step ■...
  • Page 10 < 1.3 > Installation- How to use the drawer ■ Hold the handle and slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. UM-CV-751-WS119-Q116V1 www.austin-hughes.com...
  • Page 11: Connection

    < 1.4 > Connection to USB Server via CX-6 cable WS119 LCD Console Drawer Power DVI-D CX-6 DVI-D console cable DVI-D USB server < 1.4 > Connection to external KVM via CX-6 cable LCD Console Drawer Power DVI-D KVM CX-6 DVI-D...
  • Page 12 Before attempting to connect anything to the LCD console drawer, we suggest turning off the power to all devices. Apply power to connected devices again only after the LCD console drawer is receiving power. The company is not responsible for damage caused in this way. UM-CV-751-WS119-Q116V1 www.austin-hughes.com...
  • Page 13: Product Specifi Cations

    < Part 2 > < 2.1 > Product Specifi cations WS119 Manufacturer Panel Panel Size ( diagonal ) 19-inch Widescreen TFT color LCD 1152 x 900 ( Direct ) Display pixel ( dots x lines ) 1440 x 900 ( Native ) Brightness ( typ.
  • Page 14 848 x 480 x 60Hz 800 x 600 x 60 / 72 / 75Hz 720 x 400 x 70Hz 640 x 480 x 60 / 72 / 75Hz 640 x 400 x 70Hz 640 x 350 x 70Hz UM-CV-751-WS119-Q116V1 www.austin-hughes.com...
  • Page 15: Keyboard / Mouse Specifi Cations

    < 2.2 > Keyboard / Mouse Specifi cations WS119 S keyboard integrated with touchpad S keyboard integrated with trackball Ca ps Scro ll Comp ose Ca ps Scro ll Comp ose S keyboard integrated with touchpad / trackball ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■...
  • Page 16 Audio / Display Keys * Please ask your supplier for full details Audio : Mute Display : Degauss Audio : Decrease volume Display : Decrease contrast Audio : Increase volume Display : Increase contrast P.11 UM-CV-751-WS119-Q116V1 www.austin-hughes.com...
  • Page 17: On-Screen Display Operation ( Osd )

    < 2.3 > On-screen Display Operation ( OSD ) WS119 Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control...
  • Page 18 H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AVL and mute Misc: for the language, OSD position, graphic mode, ratio, reset and timer P.13 UM-CV-751-WS119-Q116V1 www.austin-hughes.com...
  • Page 19 < Part 3 > < 3.1 > Options : DC Power WS119 Model 110 ~ 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current...
  • Page 20 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2016 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-WS119-Q116V1 www.austin-hughes.com...
