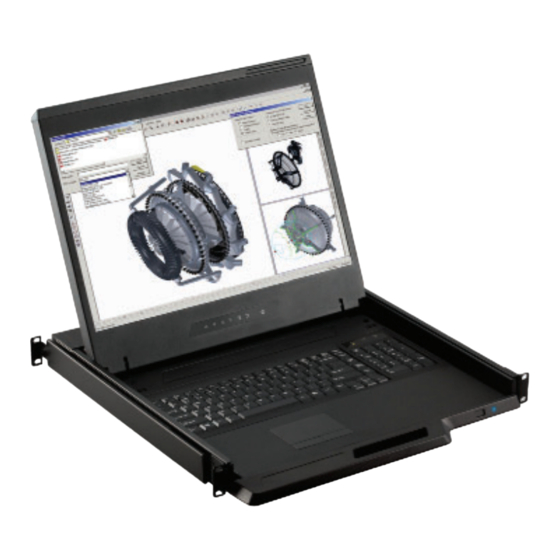

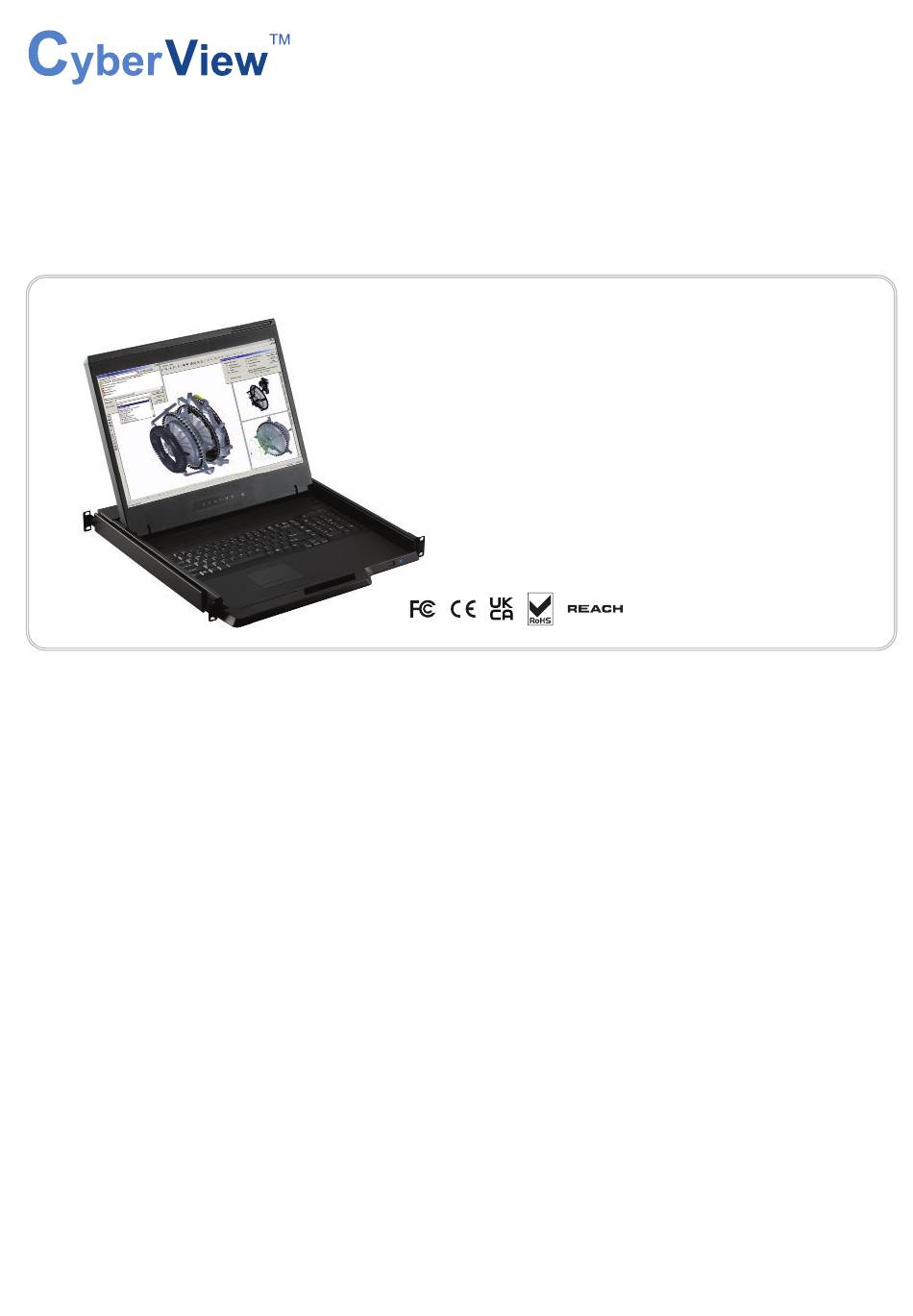

- Page 1 KVM switch and rackmount screen technology User Manual 19” Widescreen LCD 1440 x 900 W119 1U LCD Console Drawer Options : - SDI - AV / HDMI - Full Range KVM - DC power Designed and manufactured by Austin Hughes UM-CV-751-W119-Q322V1 www.austin-hughes.com...
- Page 2 ■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit diff erent from that to which the receiver is connected. UM-CV-751-W119-Q322V1 www.austin-hughes.com...
-
Page 3: Table Of Contents
Contents < Part. 1 > W119 Package Content Structure Diagram & Dimension Installation Connection < Part. 2 > Specifi cations / OSD Product Specifi cations Keyboard / Mouse Specifi cations On-screen Display Operation ( OSD ) P.10 < Part. 3 >... - Page 4 fi rst, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-W119-Q322V1 www.austin-hughes.com...
-
Page 5: W119
< Part 1 > W119 W119 < 1.1 > Package Content W119 unit X 1 - CX-6A 6ft DVI-D console cable X 1 ( Alternative : CB-6A 6ft VGA console cable ) - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models. - Page 6 Weight 441.6 x 460 x 44 mm 590 x 808 x 140 mm 11.5 kg 16 kg W119 series 17.4 x 18.1 x 1.73 inch 23.2 x 31.8 x 5.5 inch 25.3 lb 35.2 lb The weight is only for the single console models. It varies with accessories & options such as KVM, SDI, HDMI, AV &...
-
Page 7: Installation
< 1.3 > Installation - Installation Slides W119 Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. - Page 8 < 1.3 > Installation- How to use the drawer ■ Hold the handle and slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. UM-CV-751-W119-Q322V1 www.austin-hughes.com...
-
Page 9: Connection
< 1.4 > Connection to USB Server via CX-6A cable W119 LCD Console Drawer DVI-D AC Input 100~240V POWER CX-6A DVI-D console cable DVI-D USB server < 1.4 > Connection to external KVM via CX-6A cable LCD Console Drawer DVI-D... - Page 10 Before attempting to connect anything to the LCD console drawer, we suggest turning off the power to all devices. Apply power to connected devices again only after the LCD console drawer is receiving power. The company is not responsible for damage caused in this way. UM-CV-751-W119-Q322V1 www.austin-hughes.com...
-
Page 11: Specifi Cations / Osd
< Part 2 > Specifi cations / OSD < 2.1 > Product Specifi cations W119 Panel Size ( diagonal ) 19-inch Widescreen TFT color LCD Panel Display pixel ( dots x lines ) 1440 x 900 Brightness ( typ. ) Contrast Ratio ( typ. - Page 12 PC Signal Same as VGA Video Signal 720p : 50 / 60Hz 480p : 60Hz 576p : 50Hz Audio Signal 2ch Linear PCM ( 32 / 44.1 / 48 KHz ) Speaker Dual Stereo Speaker, 2 x 2W UM-CV-751-W119-Q322V1 www.austin-hughes.com...
-
Page 13: Keyboard / Mouse Specifi Cations
< 2.2 > Keyboard / Mouse Specifi cations W119 G keyboard integrated with touchpad G keyboard integrated with trackball Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time OS support Windows / Linux / Unix / Mac OS... -
Page 14: On-Screen Display Operation ( Osd )
( a ) Press the button to call up the on-screen video mode on top right corner. ( b ) Use up/down arrow to the select the video input ( c ) Press the button to confi rm the selection UM-CV-751-W119-Q322V1 P.10 www.austin-hughes.com... - Page 15 W119 Picture Brightness : Adjust the screen brightness Contrast : Adjust the diff erence between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode...
- Page 16 Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, Austin Hughes provides a SDI input module without using additional space or power and it comes standard with a 2-year warranty.
-
Page 17: Options
( 1 ) If the unit with LCD, earthing may be required ( 2 ) DC option excludes AC power adapter and power cord. ( 3 ) W119 chassis extension in depth to 530mm ( 20.9” ) UM-CV-751-W119-Q322V1 P.13 www.austin-hughes.com... -
Page 18: Kvm Integration
(W x D x H) 441.6 x 580 x 44 mm 590 x 808 x 140 mm 12.5 kg 18.1 kg W119 with KVM 17.4 x 22.8 x 1.73 inch 23.2 x 31.8 x 5.5 inch 28 lb 39.8 lb UM-CV-751-W119-Q322V1 P.14... - Page 19 Intentionally Left Blank UM-CV-751-W119-Q322V1 www.austin-hughes.com...
- Page 20 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2022 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-W119-Q322V1 www.austin-hughes.com...
