La Parisienne

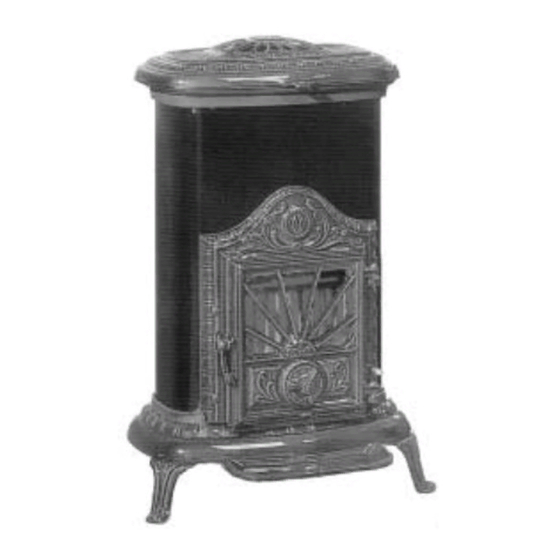

Multifuel stove
124 03 01 - 124 05 01
How to install, use and maintain your stove.
Norme DIN EN 13240 : 2005-10
Description of the appliance
Installation instructions
Operating instructions
Spare parts
Warranty certificate
Document n° 286-20 ~ 09/07/2007
FR EN NL ES
PL
PL
PL
PL
Technical manual
to be saved
by the user
for future reference
STAUB FONDERIE
SARL with the capital of 6 359 540
Head Office Address
2, rue Saint Gilles
68230 TURCKHEIM
RCS Colmar
SIREN 444 881 953
Address
Administration and manufacturing
BP 73
59660 MERVILLE (FRANCE)
Telephone : 00 333 28 43 43 00
Fax : 00 333 28 43 43 99
Subject to modifications.
PT
PL
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for FRANCO BELGE Parisienne 124 03 01
Summary of Contents for FRANCO BELGE Parisienne 124 03 01
-
Page 1: Installation Instructions
La Parisienne Document n° 286-20 ~ 09/07/2007 FR EN NL ES Multifuel stove 124 03 01 - 124 05 01 How to install, use and maintain your stove. Norme DIN EN 13240 : 2005-10 Technical manual to be saved by the user for future reference STAUB FONDERIE Description of the appliance... -
Page 2: Table Of Contents
FRANCO BELGE, guarantees the quality of its appliances and is committed to meet its customers’ needs. FRANCO BELGE, which can boast a 80-year experience in the industry of heating devices, uses state-of-the-art technologies to design and manufacture its whole range of products. -
Page 3: Description Of The Unit
Important : Before commencing the installation of your • Glass : On Franco Belge models incorporating glass new Franco Belge appliance, it is recommended that doors, extra care should be taken to avoid breakage. the instructions are read and understood. -
Page 4: Installation Instructions
The Parisienne - ref. 124 03 01 - 124 05 01 Installation instructions 2. Installation instructions The Parisienne comes bolted to a wooden pallet with a box over the top. 2.1. Warning to the user 6 0 0 m m All the local and national regulations, and in particular those relating to national and European standards, must be observed when installing the... -
Page 5: Chimney
The Parisienne - ref. 124 03 01 - 124 05 01 Installation instructions - Forbidden - Funnel-shaped fire cement - Flue duct - Flange - Stainless funnel-shaped register - The flange does not extend beyond the encasing - Encasing of the flue connector : 40 mm - Soot door Figure 3 - Connections to flue 2.3. -
Page 6: Door Closing Pressure
The Parisienne - ref. 124 03 01 - 124 05 01 Installation instructions 2.5. Connections to flues The stove must be installed as close as possible to the chimney. The stove should be connected to the flue by a smoke pipe, approved for installation with combustion products (e.g. -
Page 7: Operating Instructions
Recommended fuel : The best fuels for use with the Franco Belge Parisienne are : S u n b r i t e ( S m a l l ) - A n t h r a c i t e (Medium) Dry Woo. -
Page 8: Lighting Your Stove
The Parisienne - ref. 124 03 01 - 124 05 01 Operating instructions 3.2. Lighting your stove Your Parisienne stove is designed to be a very efficient heating appliance. Therefore, the majority of the heat created by burning fuel on it is radiated into the room rather than disappearing up the chimney, as is the case with an open fire. -
Page 9: Chimney Maintenance And Sweeping
The Parisienne - ref. 124 03 01 - 124 05 01 Operating instructions 3.5. Chimney maintenance and sweeping 3.6. Recommendations Very important : In order to avoid any incident (chimney This appliance produces heat and may cause severe fire, etc...), maintenance tasks must be carried out burns if touched. -
Page 10: Spare Parts
The Parisienne - ref. 124 03 01 - 124 05 01 Spare parts 4. Spare parts 4.1. Ref. 124 03/05 01 L, J, Y For any order of spare parts, please indicate : model number, code of the colour, description of the part, code number and colour index of the part. - Page 11 The Parisienne - ref. 124 03 01 - 124 05 01 Spare parts A = 124 03 01 L B = 124 03 01 J C = 124 03 01 Y D = 124 05 01 L E = 124 05 01 J F = 124 05 01 Y N°...
-
Page 12: Ref. 124 03/05 01 C
The Parisienne - ref. 124 03 01 - 124 05 01 Spare parts 4.2. ref. 124 03/05 01 C For any order of spare parts, please indicate : model number, code of the colour, description of the part, code number and colour index of the part. - Page 13 The Parisienne - ref. 124 03 01 - 124 05 01 Spare parts Figure 9 - Spare parts view Technical manual “286”...
- Page 14 § Guarantee certificate § § our “Guarantee Inspection” Department. Carriage and Legal guarantee labour is at the user’s cost. Moreover, if the repair or The specifications, dimensions and information shown replacement of parts covered by the guarantee is found on our documents are provided for information purposes to be too costly vis-à-vis the price of the appliance, the only and under no circumstances are binding upon the decision to replace or repair the appliance will be taken...
