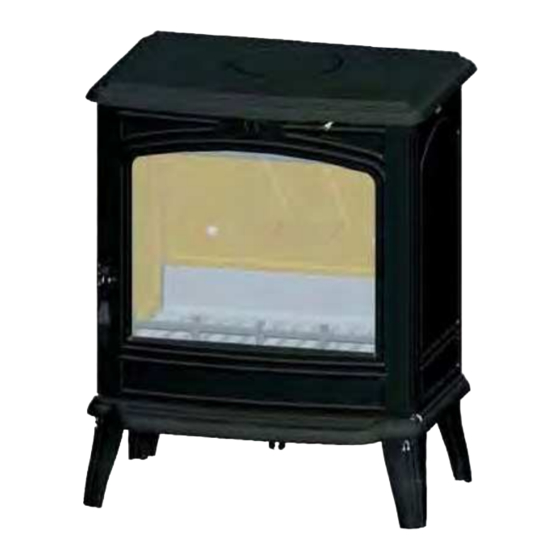

Multifuel stove
Norm DIN EN 13240 : 2005-10
Model : 134 08 09
Technical manual
Output : 8 kW
to be saved
by the user
for future reference
Description of the appliance
Installation instructions
Parc d'activités de la Verte Rue
Operating instructions
Allée des Prêles
59270 BAILLEUL
Spare parts
Tél. : 03 28 40 32 50
Warranty certificate
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for FRANCO BELGE SAVOY MK2 ELEGANCE
Summary of Contents for FRANCO BELGE SAVOY MK2 ELEGANCE
- Page 1 SAVOY MK2 ELEGANCE Document n° 1274-8 26/10/2012 FR EN Multifuel stove Norm DIN EN 13240 : 2005-10 Model : 134 08 09 Technical manual Output : 8 kW to be saved by the user for future reference Description of the appliance Installation instructions Parc d’activités de la Verte Rue...
- Page 2 DRAFT 24 Jul 2013 USER MANUAL FOR STOVES WITHOUT BOILERS SUPPLEMENTARY INSTALLATION INSTRUCTIONS FOR THE UK MARKET TO BE READ IN CONJUNCTION WITH THOSE IN THE INSTRUCTION BOOKLET These instructions together with those in the instruction booklet cover the basic principles to ensure the satisfactory installation of the stove, although detail may need slight modification to suit particular local site conditions.
- Page 3 DRAFT 24 Jul 2013 Metal Parts When installing or servicing this stove care should be taken to avoid the possibility of personal injury. STOVE PERFORMANCE Refer to the manufacturer’s main instruction manual for details of the stove’s performance. PREPARATORY WORK AND SAFETY CHECKS IMPORTANT WARNING This stove must not be installed into a chimney that serves any other heating appliance.
- Page 4 DRAFT 24 Jul 2013 Hearth The hearth should be level and able to accommodate the weight of the stove and its chimney if the chimney is not independently supported. The weight of the stove is indicated in the brochure. The stove should preferably be installed on a non-combustible hearth of a size and construction that is in accordance with the provisions of the current Building Regulations Approved Document J.
- Page 5 DRAFT 24 Jul 2013 USER MANUAL FOR STOVES WITHOUT BOILERS SUPPLEMENTARY OPERATING INSTRUCTIONS FOR THE UK MARKET TO BE READ IN CONJUNCTION WITH THOSE IN THE INSTRUCTION BOOKLET WARNING NOTE Properly installed, operated and maintained this stove will not emit fumes into the dwelling. Occasional fumes from de-ashing and re-fuelling may occur.
- Page 6 DRAFT 24 Jul 2013 In situations where it is not possible to sweep through the stove the installer will have provided alternative means, such as a soot door. After sweeping the chimney the stove flue outlet and the flue pipe connecting the stove to the chimney must be cleaned with a flue brush. Periods of Prolonged Non-Use If the stove is to be left unused for a prolonged period of time then it should be given a thorough clean to remove ash and unburned fuel residues.
- Page 7 “SAVOY MK2” - model : 134 08 09 This appliance is meant to burn wood or solid fuel safely WARNING Incorrectly installed, this appliance can be dangerous and possibly cause serious accidents. We recommend that you engage the services of a professional engineer for its installation and the regular maintenance requirements CONTENTS Door closing pressure .
-
Page 8: Description Of The Unit
“SAVOY MK2” - model : 134 08 09 Description of the unit 1 Description of the unit 1.1 Package 1.3 Appliance description • Wood stove - in conformity with DIN EN 13240 : 1 package : Stove 2005-10 1.2 Specifications •... -
Page 9: Installation Instructions
“SAVOY MK2” - model : 134 08 09 Installation instruction 2 Installation instructions 2.1 Warning to the user All the local and national regulations, and in particular those relating to national and European standards, must be observed when installing the appliance. - Page 10 “SAVOY MK2” - model : 134 08 09 Installation instruction A - Flue baffle E - Clamp B - Gasket F - Back panel Figure 3 - Top flue outlet C - Flue collar 2.3 Flue D - Blanking plate Existing flue : The chimney must comply with Current Figure 4 - Rear flue outlet...
- Page 11 “SAVOY MK2” - model : 134 08 09 Installation instruction The connection can be either vertical or horizontal. For 2.7 Door closing pressure horizontal connections, avoid right angle bends. Figure 6 The join between the connection pipe and the stovepipe, and the flue, must be leak tight. The closing latch rotates around a pressure screw positionned cam.
- Page 12 Don’t run the stove in mild weather with • Recommended fuel : coal : Under certain circumstances (e.g. fog The best fuels for use with the Franco Belge and repeated thaw) the chimney will not “Savoy MK2” are : draw sufficiently well and thus be at the Seasoned wood.
- Page 13 “SAVOY MK2” - model : 134 08 09 Instructions for user 3.2 Lighting 3.5 Maintenance of the Chimney Figure 7 Very important ! In order to avoid any incident (chimney fire, etc...), maintenance tasks must be - Slide the air control (# B and C). carried out regularly.
-
Page 14: Troubleshooting
“SAVOY MK2” - model : 134 08 09 Instructions for user 3.8 Trouble shooting þ : This sign means that you should ask for a qualified engineer to do the work. Situation Probable causes Corrective action Fire difficult to start. Fire goes Wood green…... - Page 15 “SAVOY MK2” - model : 134 08 09 Note Note Technical manual “1274”...
-
Page 16: Spare Parts
“SAVOY MK2” - model : 134 08 09 Spare parts 4 Spare parts When ordering spare parts, specify the stove type and serial number, including the colour index (on the guarantee or identification plate), the name of the part and the part number. Example : Multifuel stove “SAVOY MK2”, ref. - Page 17 “SAVOY MK2” - model : 134 08 09 Spare parts Figure 8 - Spare parts view Technical manual “1274”...
- Page 18 “SAVOY MK2” - model : 134 08 09 Spare parts A = 134 08 09 Y ; B = 134 08 09 P ; C = 134 08 09 E : D = 134 08 09 C N° Code . . . Description ..Type..A ..B . . . C . . . D ..Qty 310834 RP .
-
Page 19: Guarantee Certificate
Guarantee certificate replacement of parts covered by the guarantee is found egal guarantee to be too costly vis-à-vis the price of the appliance, the The specifications, dimensions and information shown decision to replace or repair the appliance will be taken on our documents are provided for information purposes by the vendor. - Page 20 SAVOY MK2 ELEGANCE Document n° 1274-8 26/10/2012 FR EN NL Hout kachel DIN EN 13240 : 2005-10 Referentie : 134 08 09 Gebruiksaanwijzing Vermogen : 8 kW te behouden door de gebruiker voor nadere consultatie. Presentatie van het materiaal Voorschriften voor de installateur Parc d’activités de la Verte Rue...
