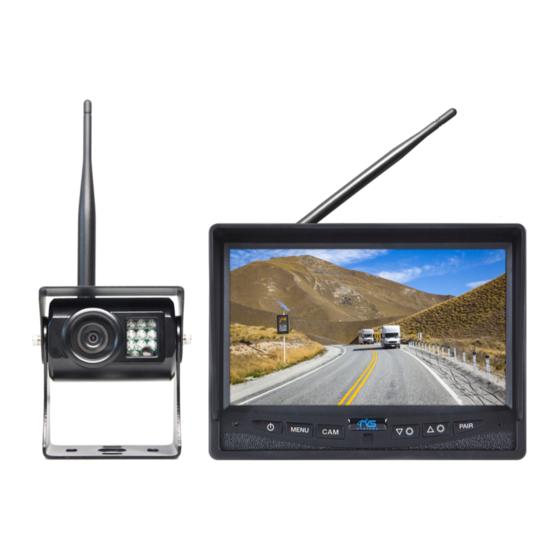

Instruction Manual 7" Wireless Camera System with Wired Side Camera Inputs RVS-355W Reverse With Confidence ™ RVS-355W.indd 1 10/2/2017 3:33:32 PM... -
Page 2: Table Of Contents
Warranty....... 14 Disclaimer....... 15 Rear View Safety RVS-355W.indd 2... - Page 3 TV viewer or screen located forward of the back of the driver’s seat or in any location that is visible, directly or indirectly, to the driver while operating the vehicle. Reverse With Confidence ™ RVS-355W.indd 3 10/2/2017 3:33:33 PM...
- Page 4 Rear View Camera System. If you back up while looking only at the monitor, you may cause Rear View Safety RVS-355W.indd 4 10/2/2017 3:33:33 PM...
- Page 5 • Where the power cable may touch a metal case, cover the cable with • Dropping the unit may cause friction tape. A short circuit possible mechanical failure. Reverse With Confidence ™ RVS-355W.indd 5 10/2/2017 3:33:33 PM...
- Page 6 If you have questions about this product, contact: Rear View Safety 1797 Atlantic Avenue Brooklyn, NY 11233 Tel: 1.800.764.1028 IN NO EVENT SHALL SELLER OR MANUFACTURER BE LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
- Page 7 Step 3: Once all cables and wiring have been properly routed, perform LOOSE MALE TO FEMALE POWER CABLE CAMERA a system function test by temporarily connecting the system. WATERPROOF CONNECTION MALE PLUG TWIST & PUT IN WATERPROOF TIGHTEN FEMALE PLUG Reverse With Confidence ™ RVS-355W.indd 7 10/2/2017 3:33:33 PM...
-
Page 8: Introduction
4. System will pair automatically - Make sure to cycle camera power after starting pairing process Note: Make sure the antenna on the monitor is installed straight up, not to either side. Rear View Safety RVS-355W.indd 8 10/2/2017 3:33:33 PM... -
Page 9: Wiring
Monitor 3 Amp Fuse 1. DC12-24V 2. Ground 3. Port #3 (Blue) 4. Port #2 (Brown) 5. Port #1 (White) Side Camera (Sold Separately) Wireless Backup Camera Side Camera (Sold Separately) Reverse With Confidence ™ RVS-355W.indd 9 10/2/2017 3:33:34 PM... - Page 10 • Auto Power: On: Monitor will automatically turn on when powered. Off: Monitor will only turn on when triggered. Auto: Monitor will follow previous state. • Reset: Reset settings to factory default Rear View Safety RVS-355W.indd 10 10/2/2017 3:33:34 PM...
-
Page 11: Camera Dimensions
Camera Dimensions Reverse With Confidence ™ RVS-355W.indd 11 10/2/2017 3:33:35 PM... -
Page 12: Monitor Specifications
DC 12V-24V (+/- 10%) Power Consumption Operating Temperature -30°C ~ +80°C RH 90% MAX Overall Dimensions 7" (L) x 5" (H) x 1" (D) Weight 400G Vibration Rating Sync System Internal Auto Pair Rear View Safety RVS-355W.indd 12 10/2/2017 3:33:35 PM... -
Page 13: Camera Specifications
Vibration and Impact Rating 20G / 100G Operating Temperature -30°C ~ +80°C / RH 95% Max Storage Temperature -30°C ~ +60°C / RH 95% Max Dimensions 3.86" (H) x 3.03 (L) x 1.77" (D) Reverse With Confidence ™ RVS-355W.indd 13 10/2/2017 3:33:35 PM... -
Page 14: Warranty
OTHERS OR THE UNAUTHORIZED USE OF NONCONFORMING PARTS; THE DAMAGE IS DUE TO NORMAL WEAR AND TEAR, THIS DAMAGE IS DUE TO ABUSE, IMPROPER MAINTENANCE, NEGLECT OR ACCIDENT; OR THE DAMAGE IS DUE TO USE OF THE REAR VIEW SAFETY, INC. SYSTEM AFTER PARTIAL FAILURE OR USE WITH IMPROPER ACCESSORIES. -
Page 15: Disclaimer
FOR ANY INJURY, LOSS OR DAMAGE, INCIDENTAL OR CONSEQUENTIAL, ARISING OUT OF THE USE OR INTENDED USE OF THE PRODUCT. IN NO EVENT SHALL REAR VIEW SAFETY AND/OR ITS AFFILIATES HAVE ANY LIABILITY FOR ANY LOSSES (WHETHER DIRECT OR INDIRECT, IN... - Page 16 If you have any questions about this product, contact: Rear View Safety, Inc. 1797 Atlantic Avenue Brooklyn, NY 11233 800.764.1028 Better Cameras. Better Service. IT’S OUR GUARANTEE. Rear View Safety RVS-355W.indd 16 10/2/2017 3:33:35 PM...
