Power Requirement

Physical
SCC-AO10 Isolated Analog Output Module User Guide
Analog power .........................................180 mW max at full load
+15 V ...............................................6 mA max at full load
–15 V ...............................................6 mA max at full load
Digital power (+5 V) ..............................1.15 W max at full load
+5 V .................................................230 mA max
1.87 cm
(0.74 in.)
Weight ....................................................28 g (1.0 oz)
I/O connectors.........................................One 20-pin right-angle male
Field-wiring diameter .............................28 to 16 AWG
172 mW max with no load
5.73 mA max with no load
5.73 mA max with no load
600 mW max with no load
120 mA max with no load
7.93 cm
(3.12 in.)

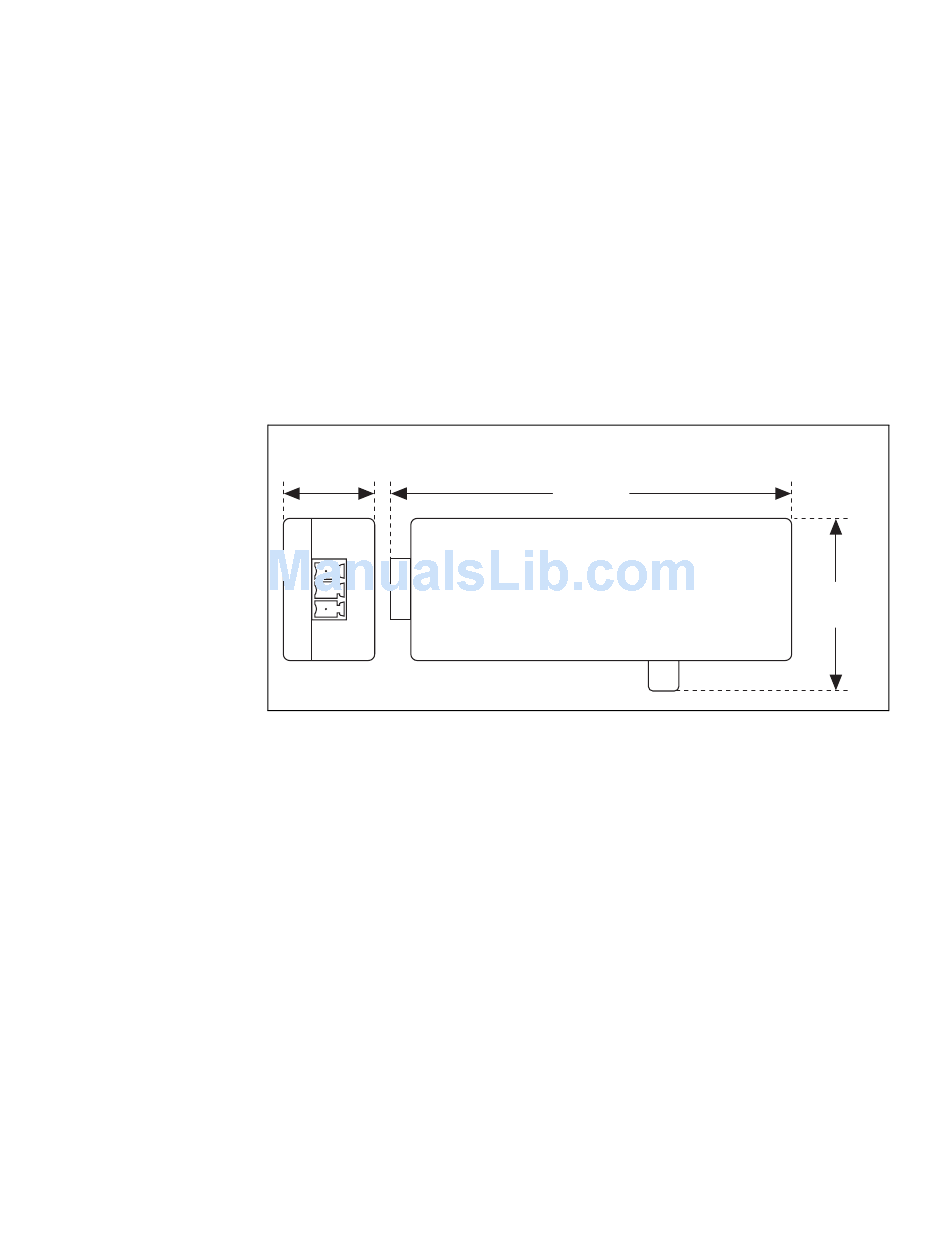

Figure 4. SCC-AO10 Dimensions
connector; one 3-pin screw
terminal
8
3.55 cm
(1.4 in.)
