USER GUIDE
SCB-19
19-Pin Shielded Desktop Connector Block
This document describes how to connect and use the SCB-19 with the AUX I/O front panel

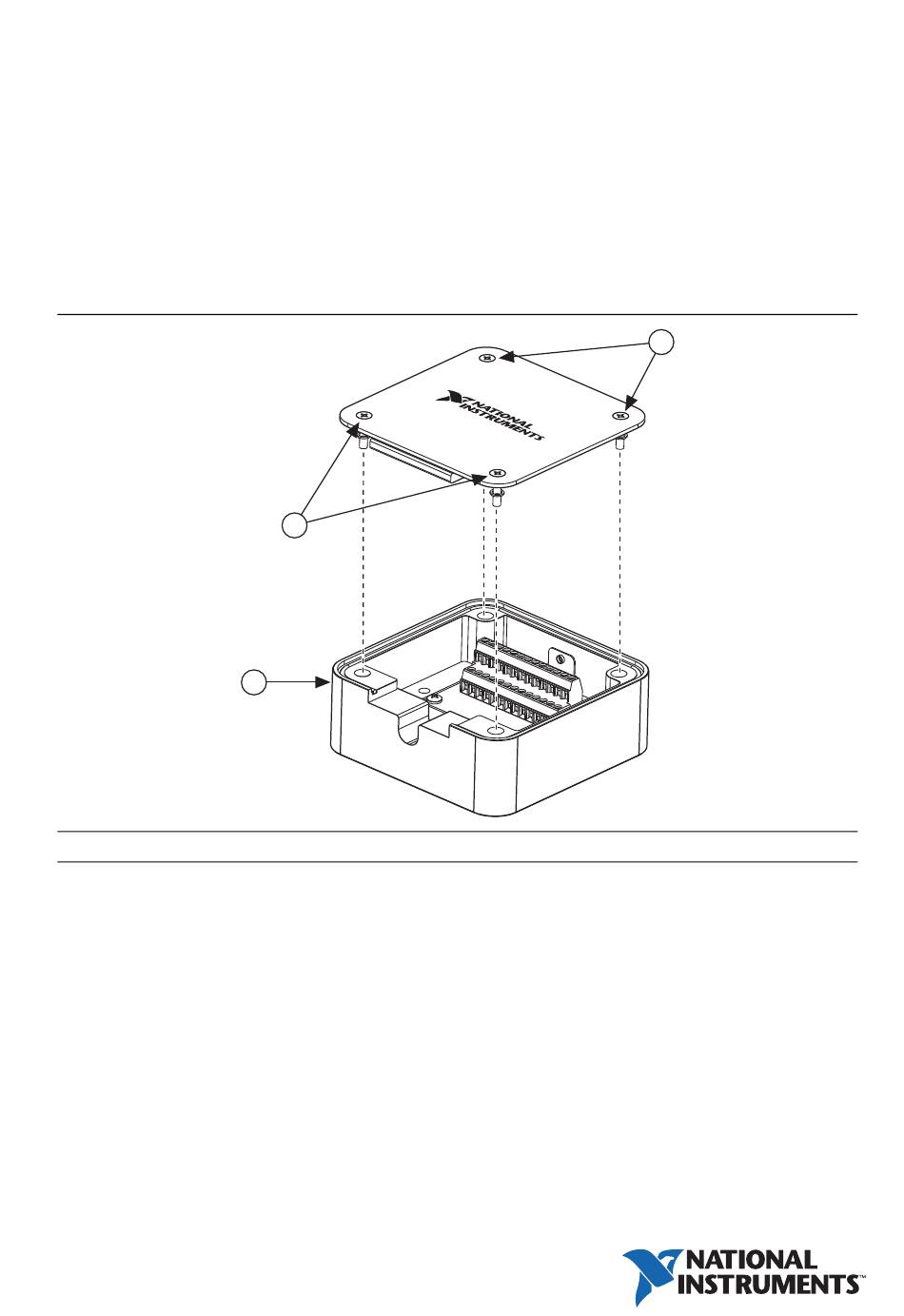

connector on your National Instruments device. Figure 1 shows the parts of the
SCB-19 connector block.
Figure 1. SCB-19 Connector Block
2
2
1
1
SCB-19
2
Cover Screws
Advertisement
Table of Contents
Related Manuals for National Instruments SCB-19
Summary of Contents for National Instruments SCB-19
- Page 1 USER GUIDE SCB-19 19-Pin Shielded Desktop Connector Block This document describes how to connect and use the SCB-19 with the AUX I/O front panel connector on your National Instruments device. Figure 1 shows the parts of the SCB-19 connector block.
- Page 2 Required Supplies In addition to the SCB-19 kit, you need the following supplies to connect and use your SCB-19 with your NI device: NI FlexRIO adapter module or other NI device with compatible 19-pin AUX I/O front panel connector ...
- Page 3 Screw Terminal Diagram Figure 2 shows the interior of the SCB-19, including the screw terminals and their corresponding signals. Figure 2. Interior of the SCB-19 3 0 1 DIO PORT 0 DIO PORT 1 UPPER ROW SHOW UPPER ROW SHOWN - LOWER ROW ALL GROUND LOWER ROW ALL GROUND ©...
- Page 4 NI is not liable for any damage resulting from using voltages outside of the recommended range. Connect the SCB-19 to the AUX I/O front panel connector on your NI device using an SHH19–H19–AUX cable (NI part number 152629-0x) and tighten the target screw, as shown in Figure 3.
- Page 5 You can purchase a compatible DIN rail kit from NI using the part number 781740-01. The SCB-19 also has two screw holes for a generic wall mount. These wall mount holes are designed for use with a #4 or #6 panhead screw with a minimum length of 0.625 in. (15.88 mm).
- Page 6 MIL-PRF-28800F. Random vibration Operating ..........5 Hz to 500 Hz, 0.3 g Nonoperating ..........5 Hz to 500 Hz, 2.4 g in accordance with IEC-60068-2-64. Nonoperating test profile exceeds the requirements of MIL-PRF-28800F, Class 3. 6 | ni.com | SCB-19 User Guide...
- Page 7 National Instruments WEEE initiatives, and compliance with WEEE Directive 2002/96/EC on Waste and Electronic Equipment, visit ni.com/environment/ weee National Instruments (RoHS) National Instruments RoHS ni.com/ (For information about China RoHS compliance, environment/rohs_china go to ni.com/environment/rohs_china SCB-19 User Guide | © National Instruments | 7...
- Page 8 LabVIEW, National Instruments, NI, ni.com, the National Instruments corporate logo, and the Eagle logo are trademarks of National Instruments Corporation. Refer to the Trademark Information at ni.com/trademarks for other National Instruments trademarks. Other product and company names mentioned herein are trademarks or trade names of their respective companies.
