Introducing the CyberPro 1S1P
The CyberPro 1S1P high-speed serial card provides one
9-pin serial port and one parallel port.
Features and Benefits
•
Conforms to PCI v2.2 Plug and Play
•
Full support for Windows-based software
•
Supports 32-/64-bit, 3.3V/5V PCI and PCI-X slots
•
One high-speed 16550 UART serial port (9-pin)
supports data rate up to 230 Kbps
•
Built-in 32-byte FIFO buffer dramatically increase
data transmit/receive speed, especially under
Windows' multitasking environment
•
The serial port can be configured for either 5V or
12V output, for serial devices that require power
•
IEEE 1284 compliant SPP/EPP/ECP parallel port
System Requirements
•
Pentium or equivalent computer with an available
PCI slot
•
Windows 95/98/98SE/ME/NT 4.0/2000/XP/
Server 2003
04-0366A
CyberPro 1S1P
Quick Installation Guide
1
Advertisement
Related Manuals for SIIG CyberPro 1S1P
Summary of Contents for SIIG CyberPro 1S1P
- Page 1 CyberPro 1S1P Quick Installation Guide Introducing the CyberPro 1S1P The CyberPro 1S1P high-speed serial card provides one 9-pin serial port and one parallel port. Features and Benefits • Conforms to PCI v2.2 Plug and Play • Full support for Windows-based software •...
- Page 2 Package Contents • (1) CyberPro 1S1P board • (1) 1S1P Fan-out cable • (1) Driver CD • (1) Quick Installation Guide Layout Depending on the model purchased, your board will come with either a full or a low profile bracket.
-
Page 3: Hardware Installation

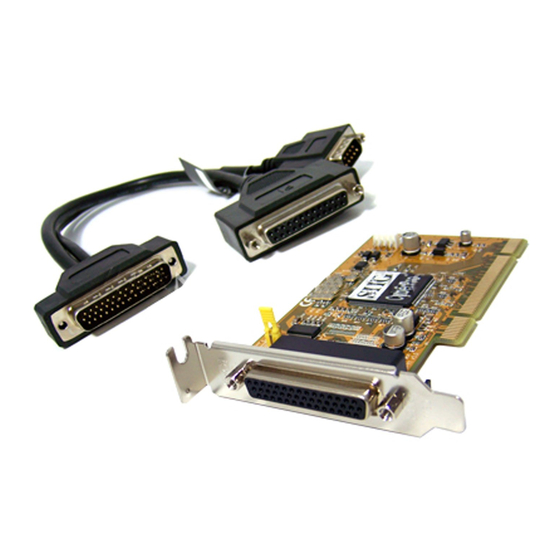

1S1P Fan-out Cable Parallel port 9-pin serial 44-pin connector Figure 2. 1S1P fan-out cable Hardware Installation General instructions for installing the card are provided below. Since the design of computer cases and motherboards vary, refer to your computer’s reference manual for further information, if needed. Static Electricity Discharge may permanently damage your system. -
Page 4: Software Installation
Connect the Fan-out cable to the board's 44-pin connector. Hardware installation is now complete. Software Installation This section provides information on how to install the CyberPro 1S1P drivers. Windows 95 At the Update Device Driver Wizard, click Next. Insert the driver CD, then click Other Locations, type D:\9x, click OK, then click Finish. - Page 5 To Verify Installation In Windows 95/98/98SE/ME: Right click My Computer, click Properties, then click Device Manager. Double click Ports (COM & LPT), CyberSerial PCI 16Cxxx..., Printer Port..., and CyberParallel PCI should be displayed. Double click Multi-function adapters, SIIG CyberPro 1S1P PCI board should be displayed.
- Page 6 Windows NT 4.0 From the desktop click Start, then Run. Insert the driver CD, type in D:\NT4\Install_Serial.exe, then click OK. (Change D: to match your CD-ROM drive letter) When the Welcome window appears, click Next. Choose Install, then click Next. Click Yes, then click Exit.
- Page 7 Windows 2000 At the Found New Hardware Wizard, click Next. Select Search for a suitable driver for my device (recommended), and click Next. Check Specify a location, uncheck the other boxes, and click Next. Insert the driver CD, type in D:\2000, then click OK. (Change D: to match your CD-ROM drive letter) Click Next and Finish.
- Page 8 To Verify Installation In Windows 2000/XP/Server 2003: Right click My Computer, click Manage, then click Device Manager. Double click Ports (COM & LPT), CyberSerial PCI 16Cxxx... andCyberParallel PCI... should be displayed. Double click Multifunction adapters, SIIG CyberPro 1S1P PCI board should be displayed.
- Page 9 Changing COM Port Address Some serial devices need a specific COM port in order to work. If your serial device works properly, do not change this setting. Windows 95/98/98SE/ME From Device Manager, double click Ports (COM & LPT), then double click the CyberSerial PCI serial port you want to change.
- Page 10 Changing Parallel Port Address (LPT) Some parallel devices need a specific parallel port in order to work. If your parallel device works properly, do not change this setting. Windows 95/98/98SE/ME From Device Manager, double click Ports (COM & LPT), then double click CyberParallel PCI. Click Settings tab, check Enable use of I/O location 278h, then click OK.
-
Page 11: Technical Support And Warranty
RMA number posted on the outside of the shipping carton. • You are responsible for the cost of shipping the product to SIIG at the following address: SIIG, Inc. 6078 Stewart Avenue... - Page 12 Fremont, CA 94538-3152 CyberPro 1S1P is a trademark of SIIG, Inc. SIIG and SIIG logo are registered trademarks of SIIG, Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation. Pentium is a registered trademark of Intel Corporation. Other names used in publication are for identification only and may be trademarks of their respective companies.
